Standards

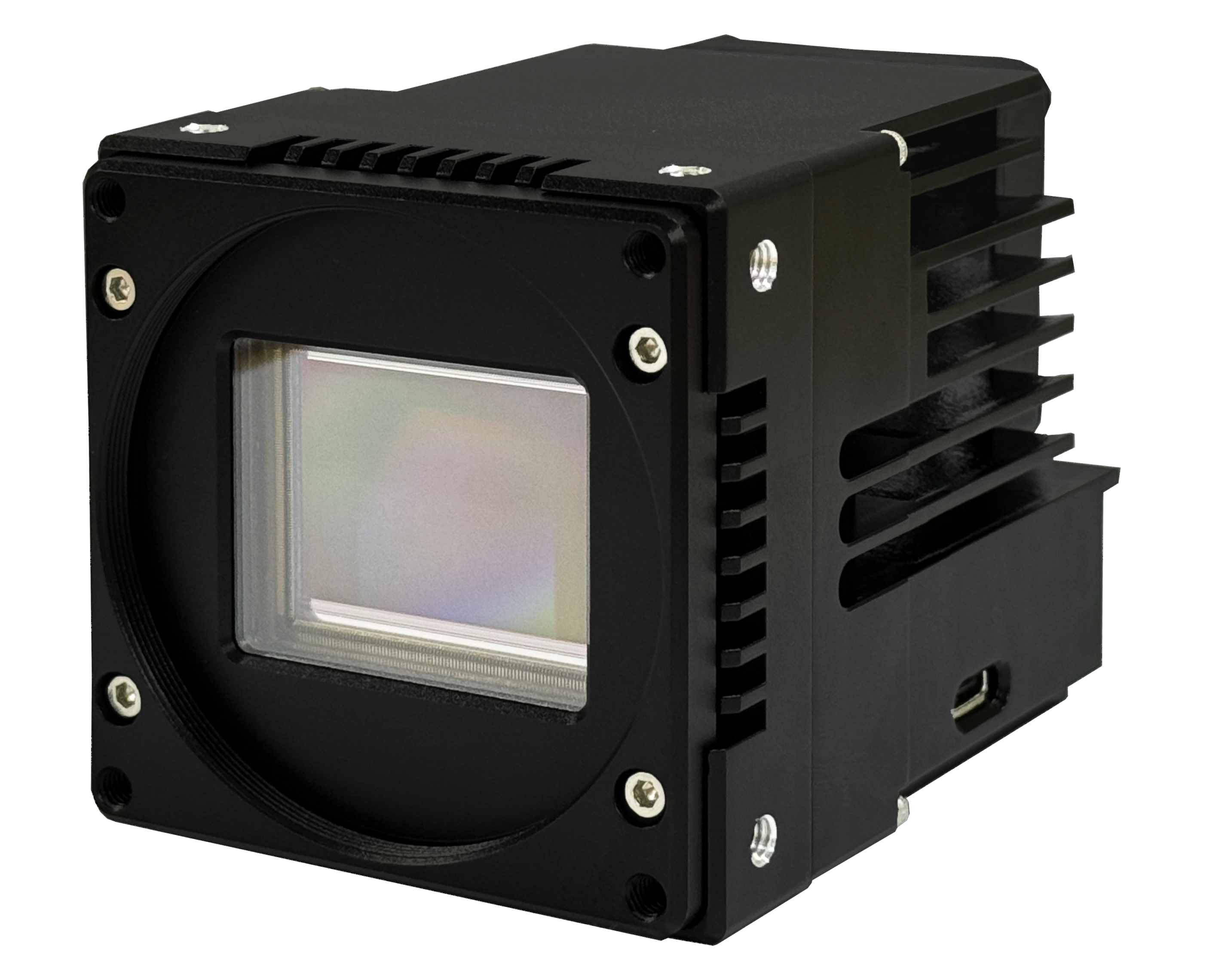

| Model | TS65MPXGV-19M/C |
| Sensor Type | GMAX3265 |
| Image Mode | Mono/Color |
| Optical Size | 37.36 mm |
| Resolution | 9344 * 7000 |
| Pixel Size | 3.2μm * 3.2μm |
| Max Frame Rate | 18.602fps@8bit, 12.375fps@12pbit |
| Data Format | 8/12pbit |
| Dynamic Range | ≥63.2 dB |
| Data Rate | 1216 MB/s |
| Trigger Mode | Free-Run / External Pulse / External PWM |
| Trigger Source | External IO Signal / Software Trigger Signal |
| Exposure Control | Timed / Pulse Width Control |
| Exposure Time | 14μs-10s(Step:1μs) |
| Analog Gain | 0-64dB |
| Digital Gain | 0.1-8.0x |
| Lens Mount | M58 * 0.75 |
| Data Interface | 10GigE Vision |
| Power Connector | DB15(Female) |
| Power Supply | DC12-24V(±10%) 2.0A |
| Power Consumption | 15.1W |
| Dimensions |
M58: 65.0mm × 65.0mm × 81.68mm F Mount: 65.0mm × 65.0mm × 116.7mm |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 474.3g |
