Standards

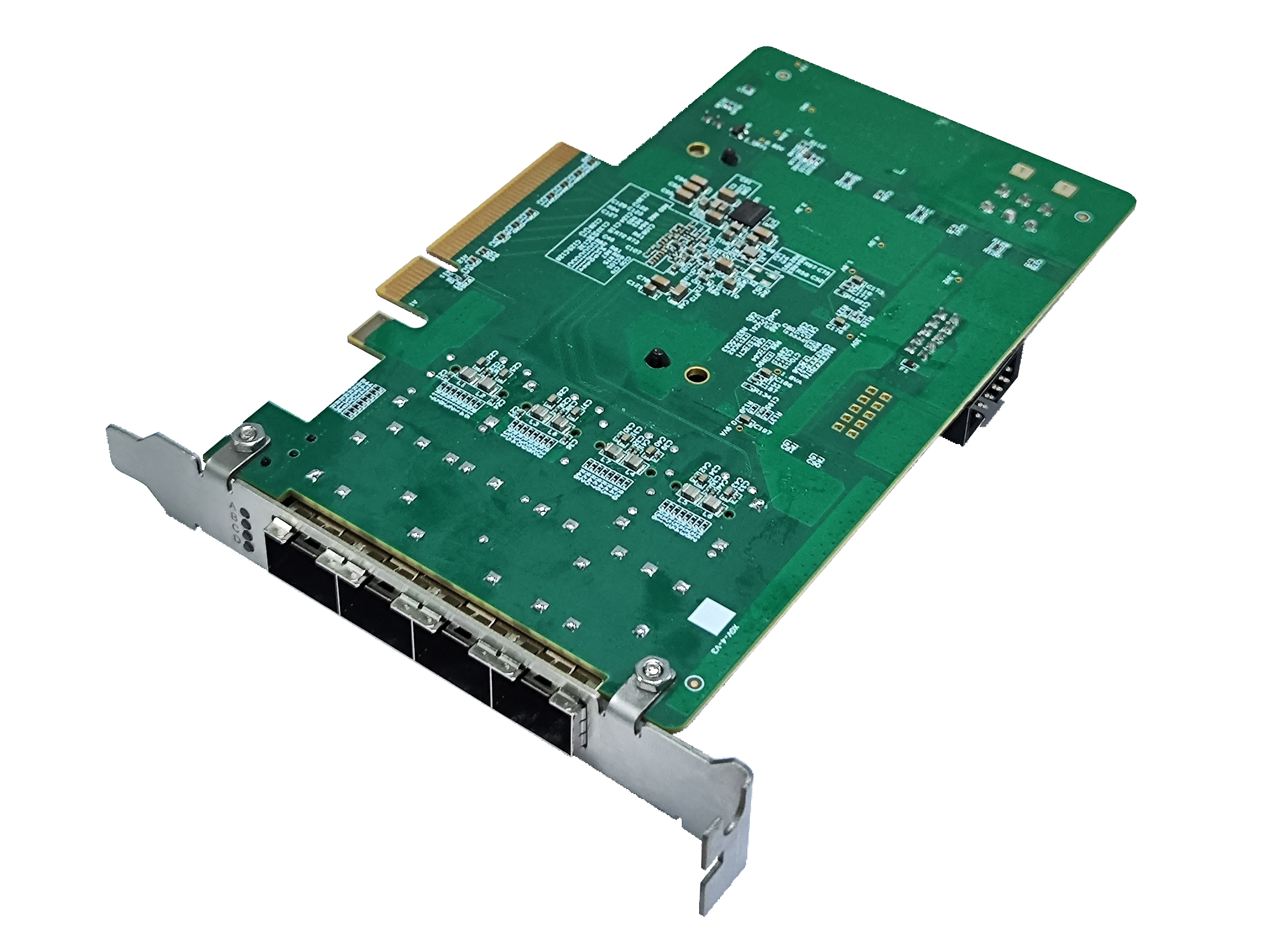

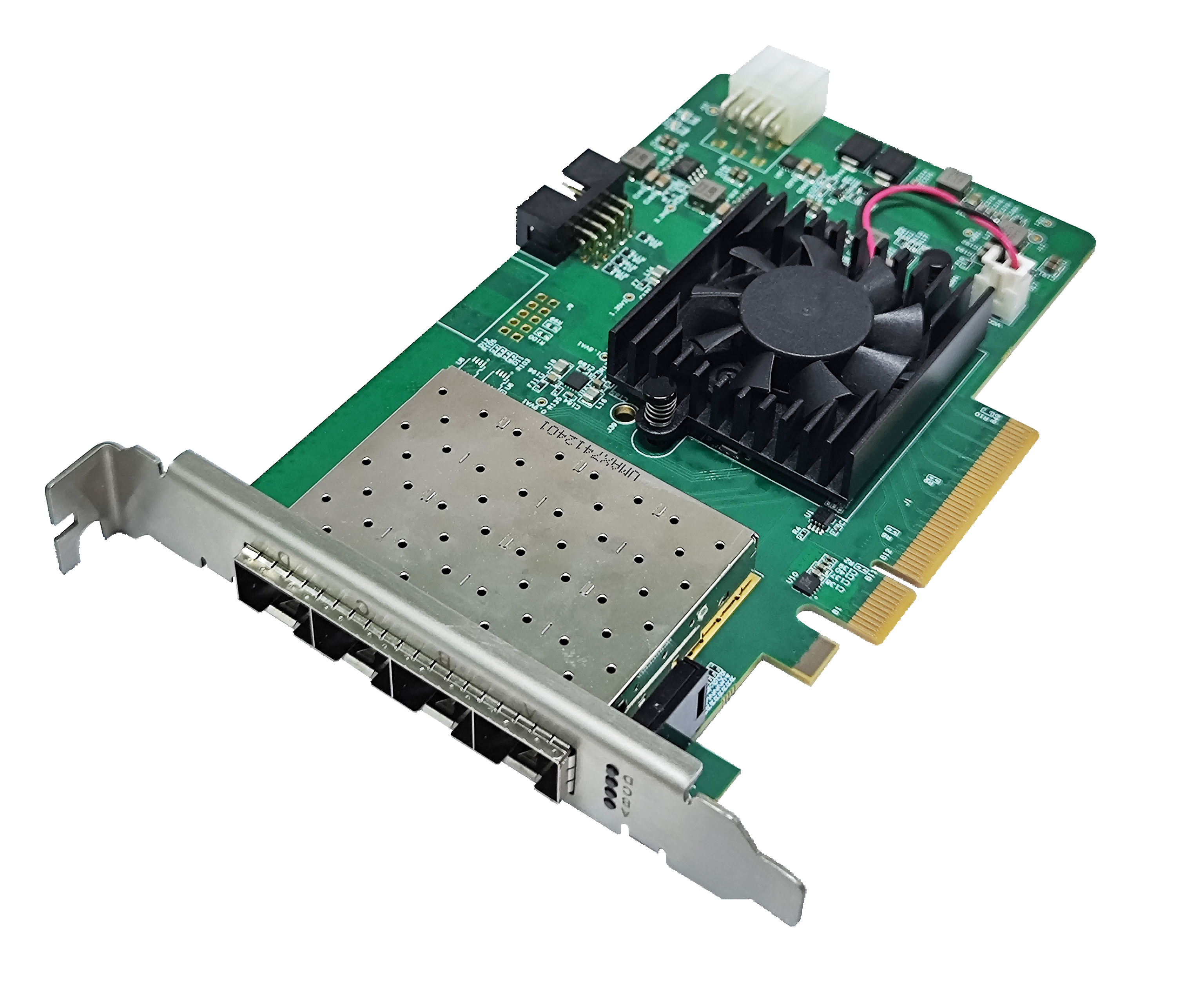

| Model | Vulcan-EXGV2-S-4 |
| Protocol |
GigE Vision V2.0 GenICam |
| Bit Depth | 8/10/12/14/16 bit |
| Image Mode | Mono / Bayer / YUV422 / RGB / RGBC / BGR / BGRC |
| Host Interface | PCIe Gen3 x 8 |
| Connector | RJ45 × 4 |
| Channel Speed | 10 Gbps × 4 |
| Data Rate | 40 Gbps |
| Memory Management | DMA buffers directly transferred to system memory |
| Scan Mode | Line scan / Area scan |
| Maximum Cameras | 4 |
| Power Consumption | <16.5W |
| Cooling Method | Fan Cooling |
| Firmware Upgrade | Supports online firmware update |
| Operating Temperature | 0-55℃ |
| Operating System |
Windows 10 / 7 (32-bit and 64-bit) Linux (64-bit) macOS |
