Standards

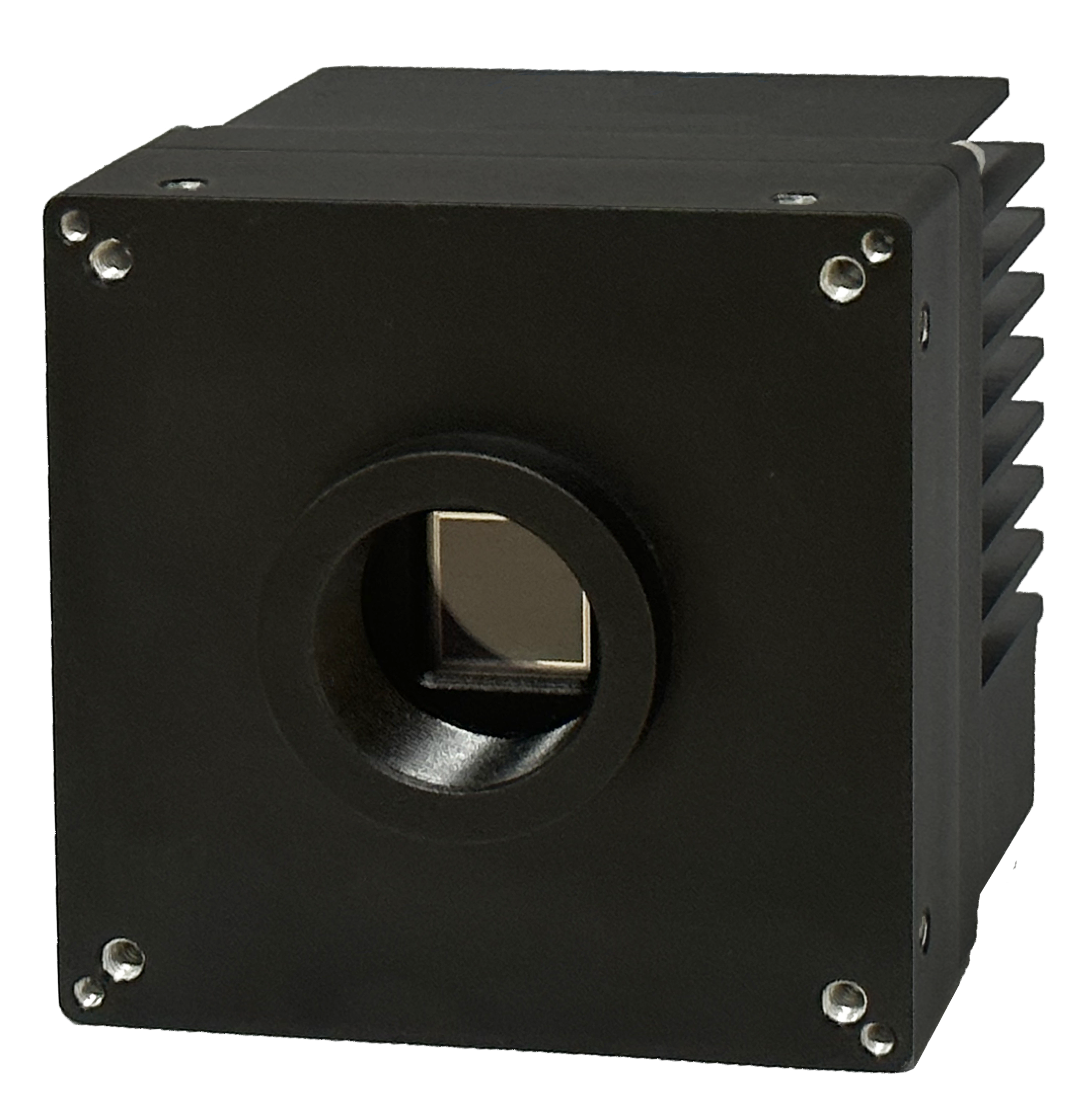

| Model | TS25MPXGV-42M/C |
| Sensor Type | GMAX0505, Global Shutter CMOS |
| Image Mode | Mono/Color |
| Optical Size | 18.10 mm |
| Resolution | 5120 * 5120 |
| Pixel Size | 2.5μm * 2.5μm |
| Max Frame Rate | 41.79fps@8bit, 22.43fps@10/12bit, 30.0fps@10p/12p bit |
| Bit Depth | 8/10/10p/12/12pbit |
| Dynamic Range | ≥62.8 dB |
| Data Rate | 1095MB/s |
| Trigger Mode | Free Run / External Trigger / External PWM |
| Trigger Source | Software Trigger / External IO |
| Exposure Control | Timed / Pulse Width Control |
| Exposure Time | 8μs -50s(step:1μs) |
| Analog Gain | 1.0/1.2/1.4/1.6/1.8/2.0× |
| Digital Gain | 0.1-8.0× |
| Lens Mount | C Mount |
| Data Interface | 10GigE Vision |
| Power Connector | HD15(Female) |
| Power Supply | DC12-24V(±10%) 1.5A |
| Power Consumption | 9.0W |
| Dimensions | 76.0mm(W) × 76.0mm(H) × 70.7mm(D)(Without adapter) |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 515.5g |
