Standards

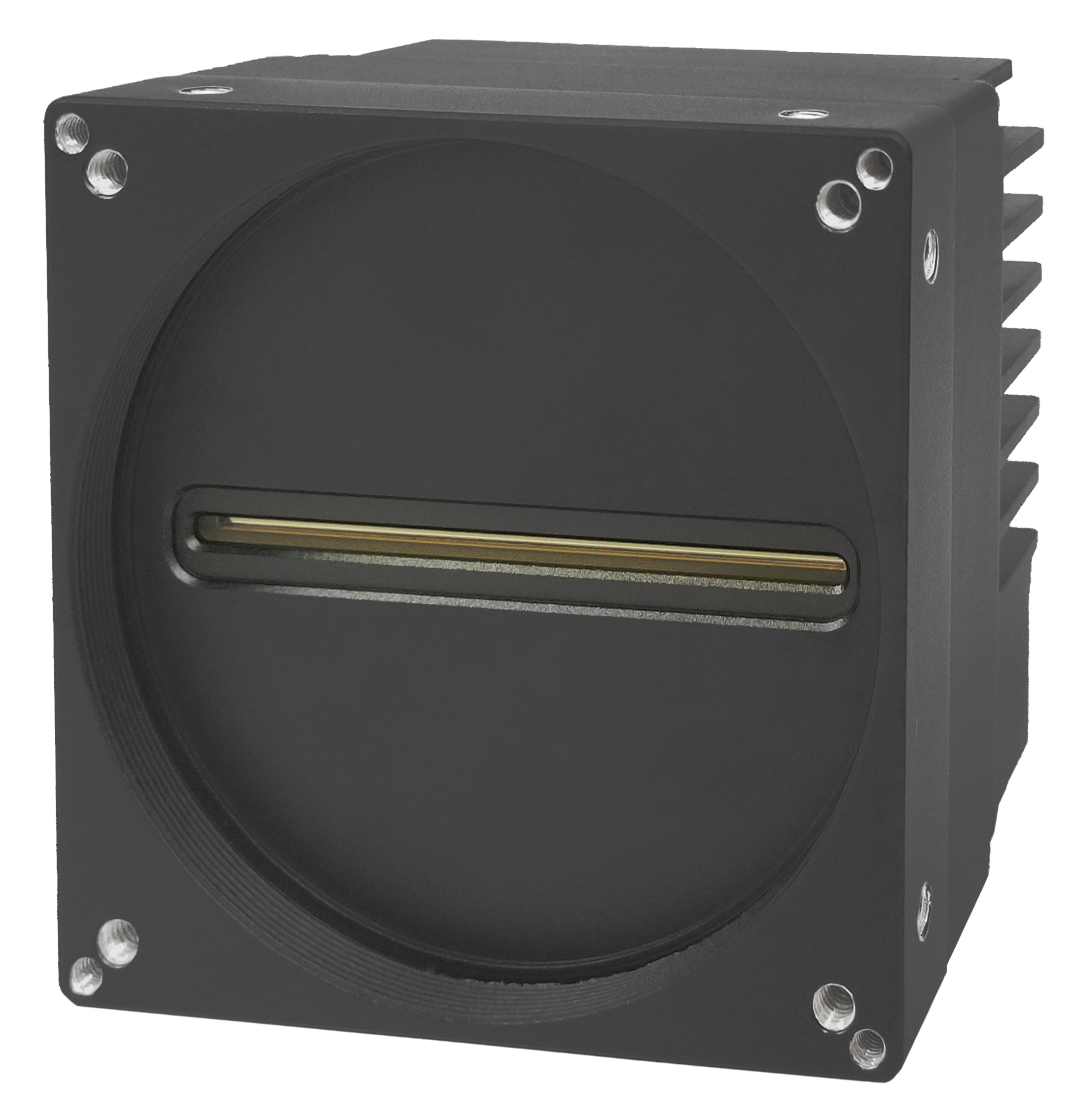

| Model | PN8KXGV-80KT |
| Sensor | Global Shutter CMOS |
| Image Mode | Mono |
| Optical Size | 57.34 mm |
| Resolution | 8192 * 2 |
| Pixel Size | 7μm * 7μm |
| Max Line Rate | 79.4 kHz |
| Bit Depth | 8 bit |
| Dynamic Range | ≥54.1dB |
| Data Rate | 650 MB/s |
| Trigger Mode | Free-Run / Frame Trigger Mode / Line Trigger Mode |
| Exposure Control | Pulse Width Control / Timed |
| Exposure Time | 3.5μs - 63997μs（step：0.0125μs） |
| Analog Gain | 1/2/3/4/5/6/7/8x |
| Digital Gain | 0.1-8.0x |

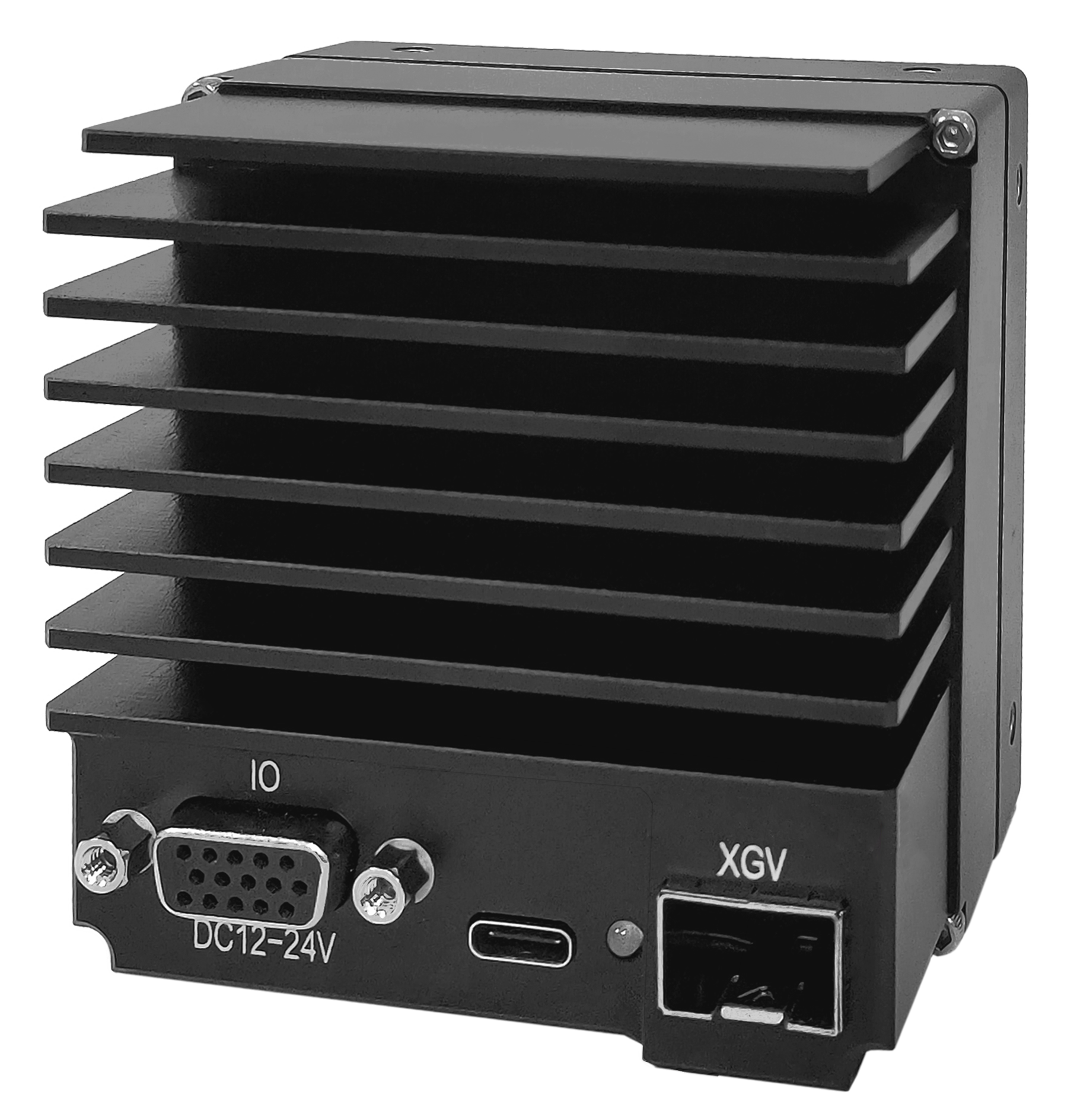

| Data Interface | 10GigE Vision |
| Lens Mount | M72 * 0.75 |
| Power Connector | DB15(Female) |
| Power Supply | DC12-24V（±10%） 2.0A |
| Power Dissipation | 11.7 W |
| Dimensions | 76.0mm(W) x 76.0mm(H) x 65.3mm(D) |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 390.5g |
