Standards

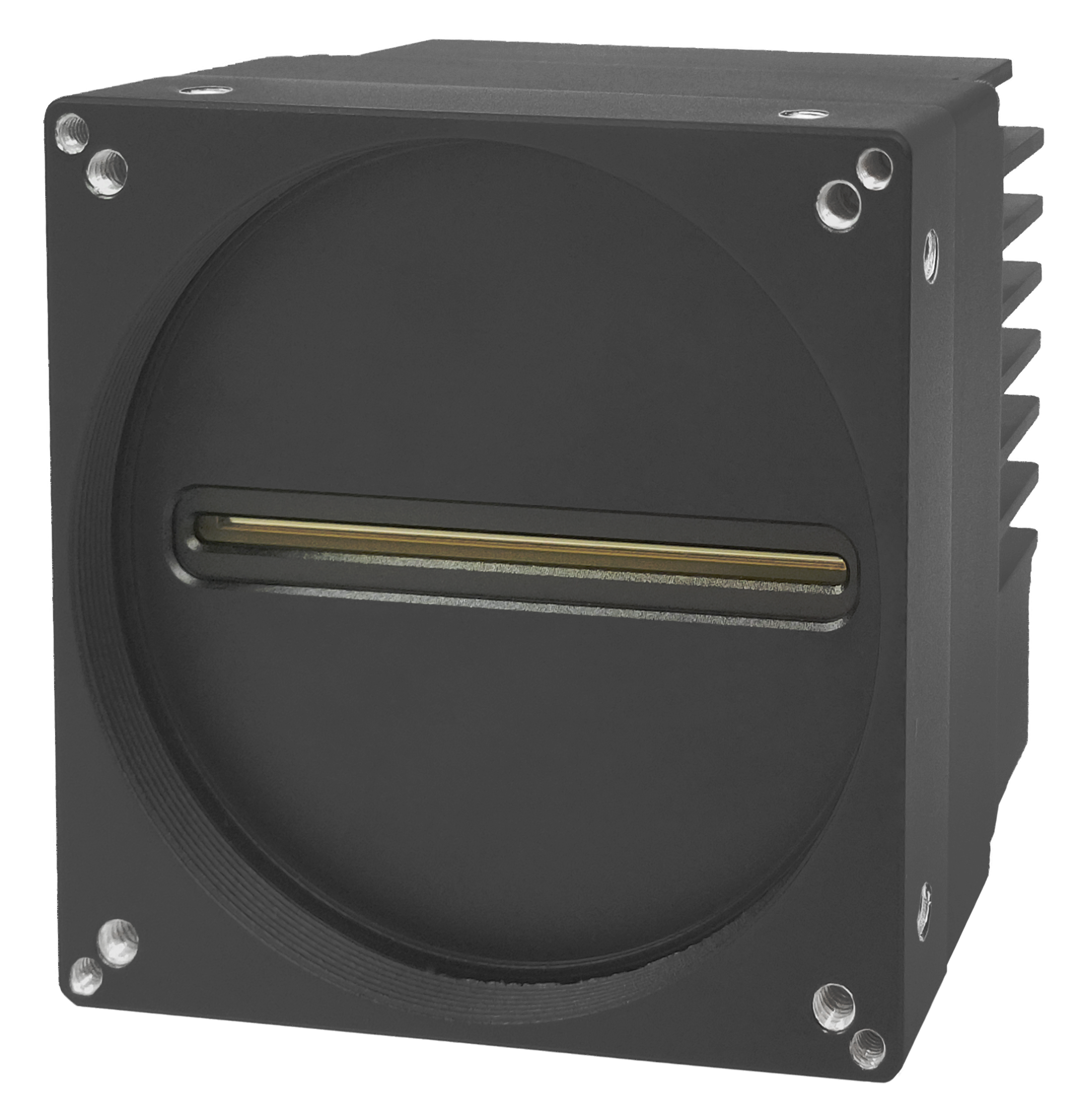

| Model | PN16KXGV-75KM |
| Image Sensor | Global Shutter CMOS |
| Image Mode | Mono |
| Optical Size | 57.34 mm |
| Resolution | 16384 * 1 |
| Pixel Size | 3.5μm * 3.5μm |
| Max Line Rate | 73.8kHz |
| Bit Depth | 8 bit |
| Dynamic Range | ≥53.7 dB |
| Data Rate | 1227 MB/s |
| Trigger Mode | Free-Run / External Pulse / External PWM |
| Exposure Control | Timed / Pulse Width Control |
| Exposure Time | 3.5μs - 63997μs(Step:0.013μs) |
| Analog Gain | 1/2/3/4x |
| Digital Gain | 0.1-8.0x |

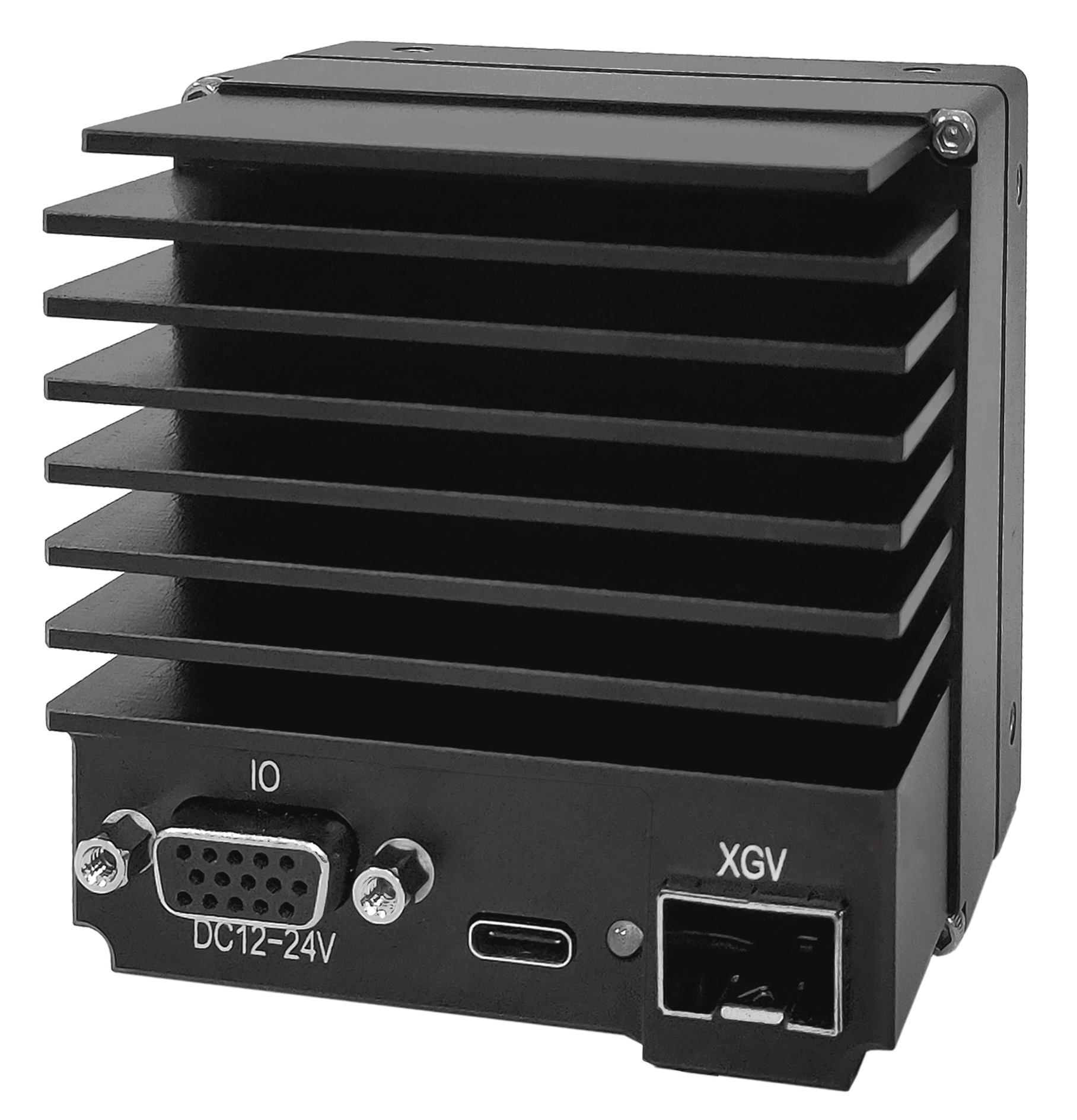

| Data Interface | 10GigE |
| Lens Mount | M72 * 0.75 |
| Power Connector | DB15(Female) |
| Power Supply | DC12-24V(±10%) 2.0A |
| Power Dissipation | 11.3W |
| Dimensions | 76.0mm(W) x 76.0mm(H) x 65.3mm(D) |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 390.5g |
