Standards

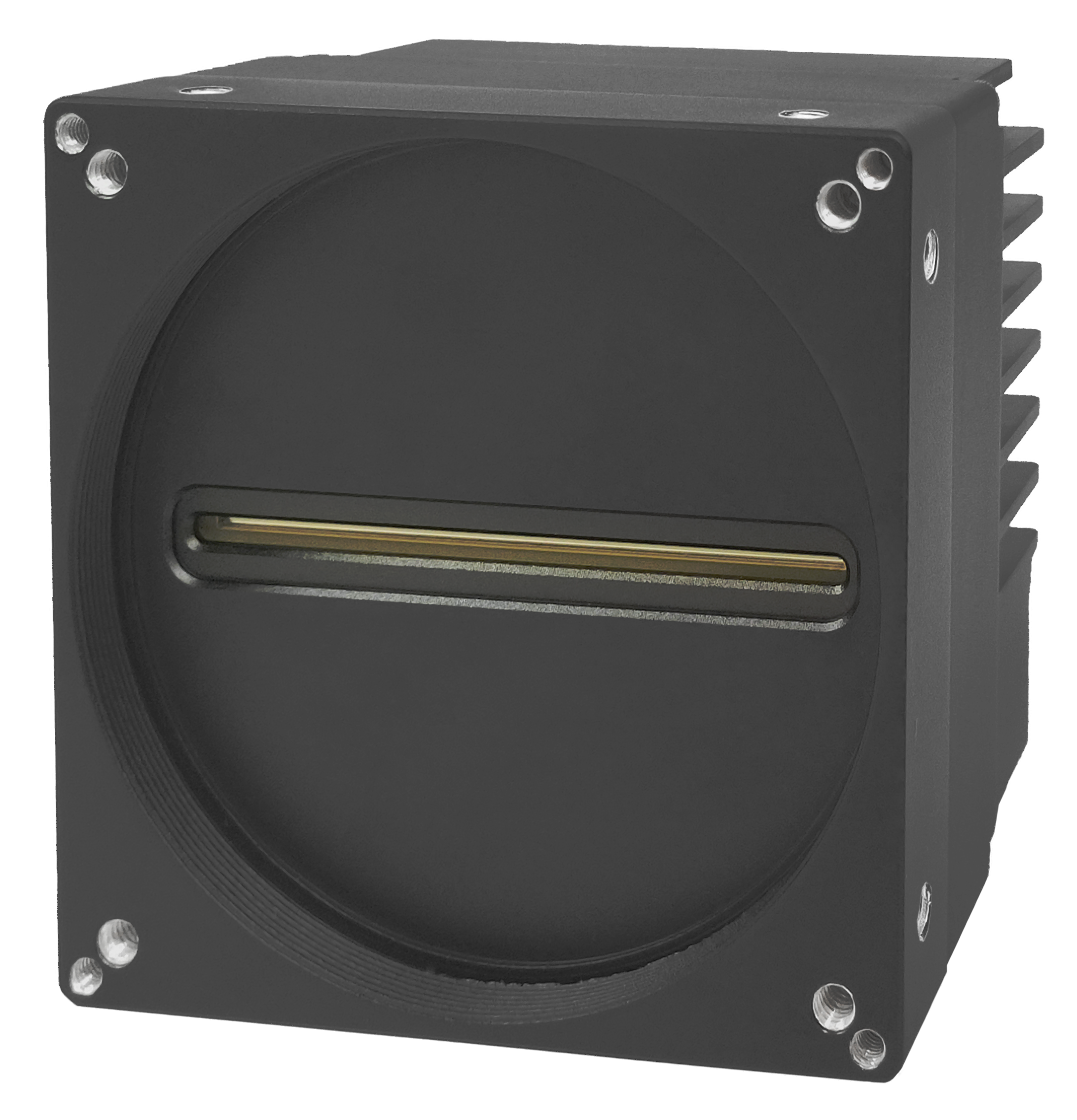

| Model | PA8KXGV-80KM |
| Sensor | Global shutter CMOS |
| Image Mode | Mono |
| Optical Size | 57.34 mm |
| Resolution | 8192 * 1 |
| Pixel Size | 7μm * 7μm |
| Max Line Rate | 80.5kHz@8bit，74.5kHz@10bit |
| Bit Depth | 8/10 bit |
| Dynamic Range | ≥66 dB |
| Data Rate | 768 MB/s |
| Trigger Mode | Free-Run / Line Trigger Control / Frame Trigger Control |
| Exposure Control | Timed / Pulse Width Control |
| Exposure Time | 2μs-0.1s(Step:0.01μs) |
| Analog Gain | 1/2/4/8x |
| Digital Gain | 0.001-16.000x |
| Data Interface | 10GigE Vision |
| Lens Mount | M72 * 0.75 |
| Power Connector | DB15(Female) |
| Power Supply | DC12-24V(±10%) 1.5A |
| Power Dissipation | 11.1W |
| Dimensions | 76.0mm(W) x 76.0mm(H) x 62.6mm(D) |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 399.5g |
