Standards

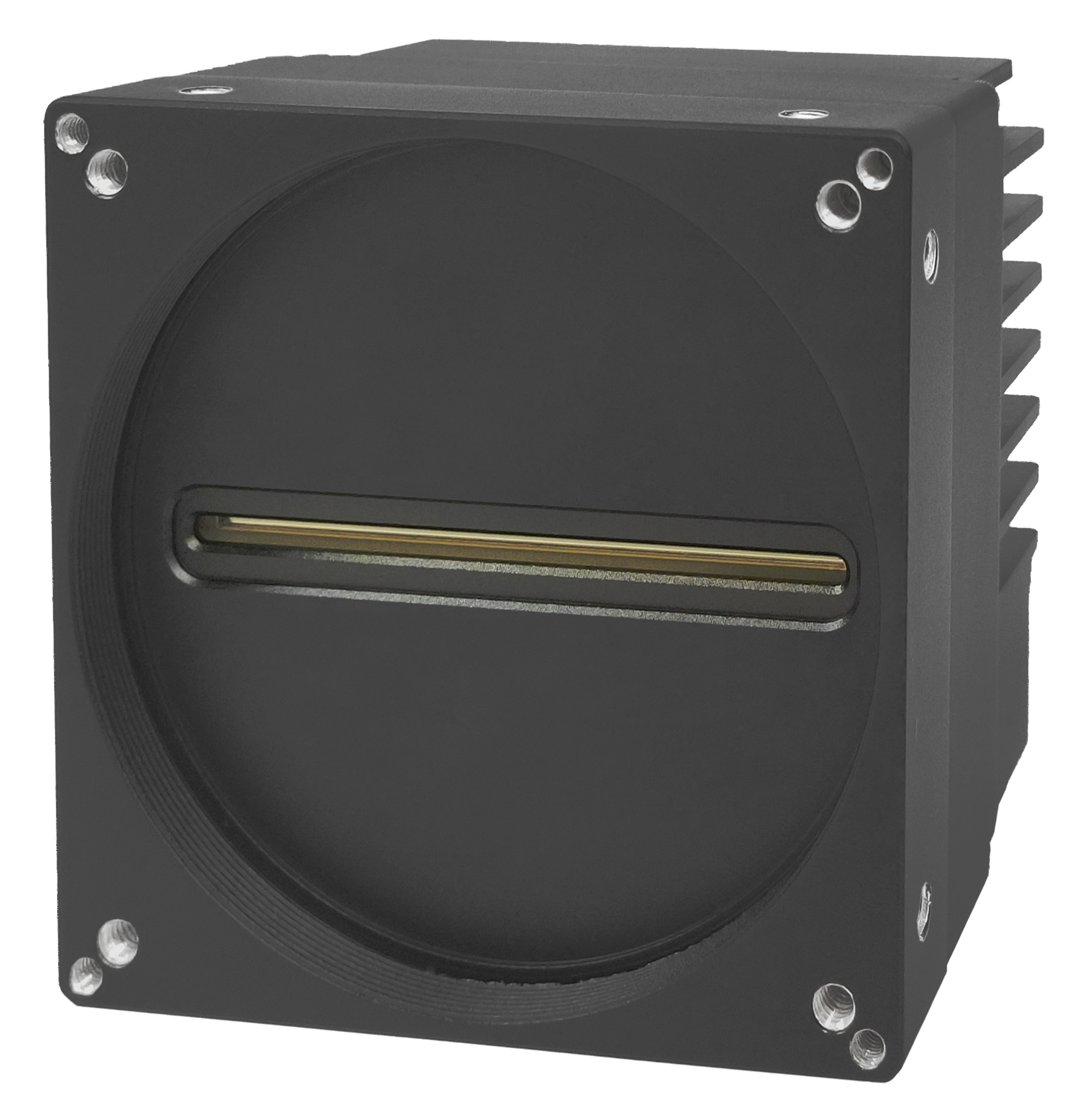

| Model | PA16KXGV-75KM |
| Sensor | Global Shutter CMOS |
| Image Mode | Mono |
| Optical Size | 57.34 mm |
| Resolution | 16384 * 1 |
| Pixel Size | 3.5μm * 3.5μm |
| Max Line Rate | 75.1kHz |
| Bit Depth | 8/10 bit |
| Dynamic Range | ≥66 dB |
| Data Rate | 1230MB/s |
| Trigger Mode | Free-Run / Line Trigger Control / Frame Trigger Control |
| Exposure Control | Pulse Width Control / Timed |
| Exposure Time | 2μs-0.1s(Step:0.117μs) |
| Analog Gain | 1/2/4/8x |
| Digital Gain | 0.001-8.000x |

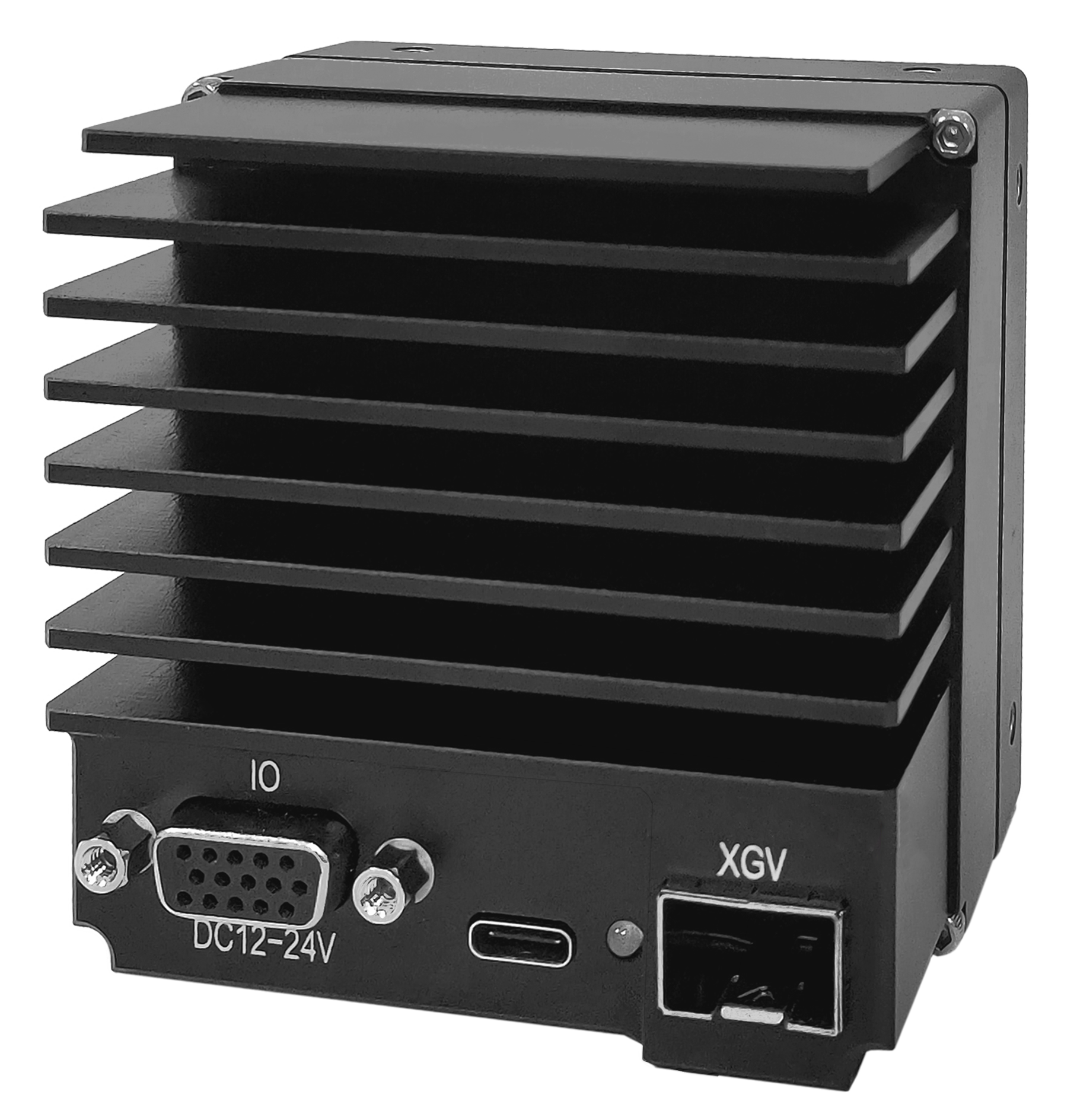

| Data Interface | 10GigE |
| Lens Mount | M72 * 0.75 |
| Power Connector | DB15 (Female) |
| Power Supply | DC12-24V(±10%) 2.5A |
| Power Dissipation | 18.6 W |
| Dimensions | 76.0mm(W) x 76.0mm(H) x 62.6mm(D) |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 352.0g |
