Standards

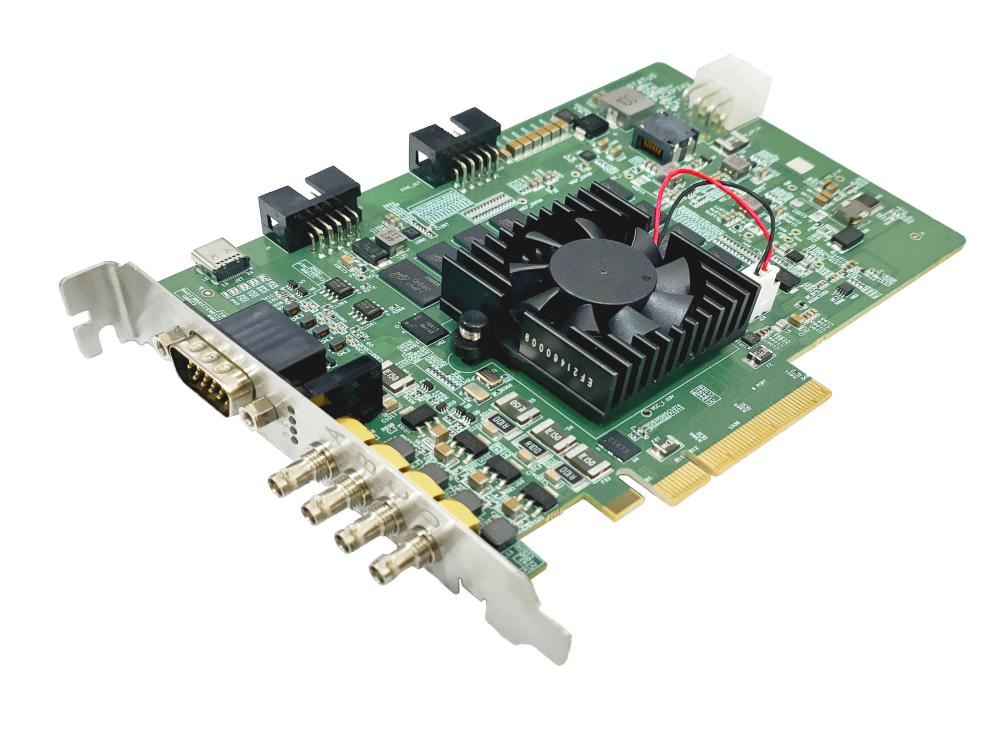

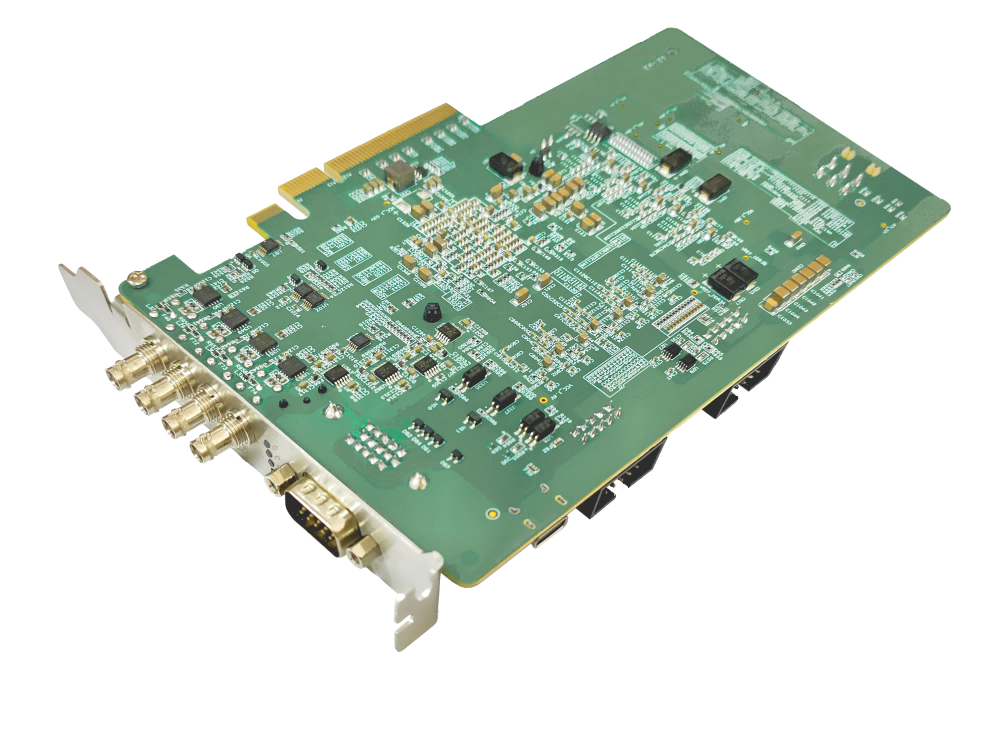

| Model | Vulcan-CXP12 |
| Protocol |
CoaXPress V2.0, 2.1 GenICam GenTL |
| Bit Depth | 8/10/12/14/16 bit |
| Image Mode | Mono / Bayer / RGB / RGBC / BGR / BGRC |
| Topology Model | 1-4 channel CXP topological connection |
| Host Interface | PCIe Gen3 x 8 |
| Connector | Micro BNC CoaXPress × 4 |
| Channel Speed | (1.25/2.5/3.125/5/6.25/10/12.5) Gbps × 4 |
| Data Rate | 50Gbps |
| PoCXP |
4 channels Up to 24 V / 13 W per channel |
| Memory | 4 GB |
| Memory Management |
Circular buffer support Accumulation of frames/lines into a single buffer DMA buffers directly transferred to system memory |
| Scan Mode | Line scan / Area scan |
| Maximum Cameras | 4 |
| Trigger Input |
Signal input channels: 2 Maximum input frequency: 100 kHz Supported input voltage: 3.3 V to 24 V |
| Encoder Input |
Quadrature AB input channels: 1 Maximum input frequency: 1 MHz Supported input voltage: Differential, 1 V to 24 V |
| Output Signal |
Signal output channels: 2 Maximum frequency: 100 kHz |
| Power Consumption | <17.5 W (excluding PoCXP power output) |
| Cooling Method | Fan Cooling |
| Firmware Upgrade | Supports online firmware update |
| Operating Temperature | 0-55℃ |
| Operating System |
Windows 10 / 7 (32-bit and 64-bit) Linux (64-bit) macOS |
