Standards

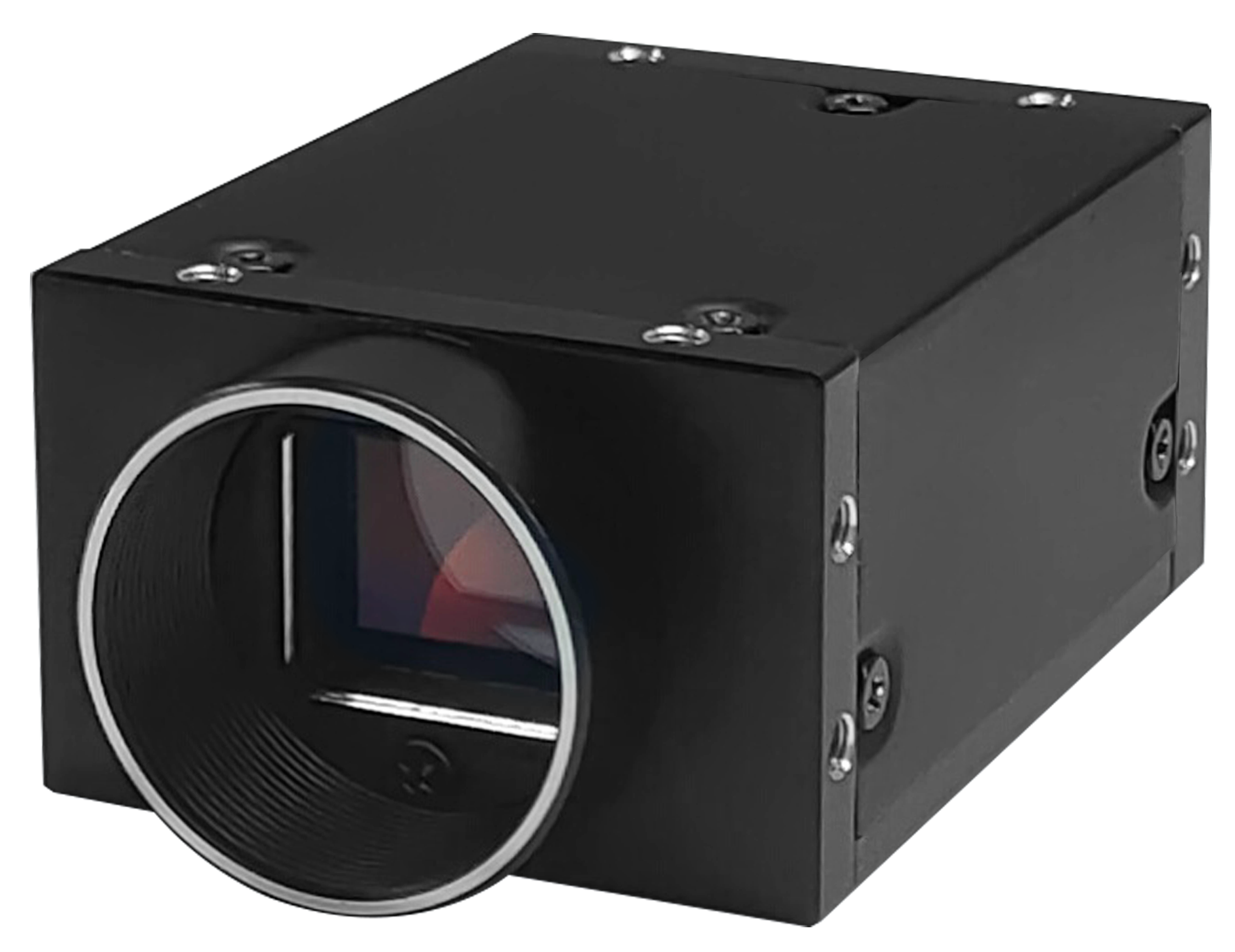

| Model | UB25MEB2G5V-11M/C |
| Description | 25MP 2.5GigE Mono/Color Area Scan Camera |
| Sensor | GMAX0505 |
| Resolution | 5120 * 5120 |
| Pixel Size | 2.5μm |
| Image Mode | Mono / Color |
| Optical Size | 18.10mm |
| Dynamic Range | ≥61.8dB |
| SNR | 35.1dB |
| Max Frame Rate |
1GigE: 4.63fps@8bit, 2.32fps@YUV422/10/12bit, 3.09fps@10p/12pbit, 1.54fps@RGB8 2.5GigE: 11.04fps@8bit, 5.52fps@YUV422/10/12bit, 7.37fps@10p/12pbit, 3.69fps@RGB8 |
| Data Format |
Monochrome: Mono8/10/10p/12/12p Color: Mono8/Bayer8/10/10p/12/12p/RGB8/YUV422_8 |
| Data Rate | 298MB/s |
| Exposure Control | Timed / Pulse Width Control / Auto Exposure |
| Exposure Time |
1GigE Exposure: 52µs–10s(step: 42.3µs) 2.5GigE Exposure: 27µs–10s(step: 17.01µs) 1GigE & 2.5GigE Ultra-Short Exposure: 2.7µs–9.46µs(step: 0.09µs |
| Trigger Mode | Free Run / External Pulse / External PWM |
| Trigger Signal | External I/O Signal / Software Trigger Signal |
| Analog Gain | ×1 / ×1.6 |
| Digital Gain | 0.004~16 |
| Data Interface | 2.5GigE |
| Lens Mount | C Mount |

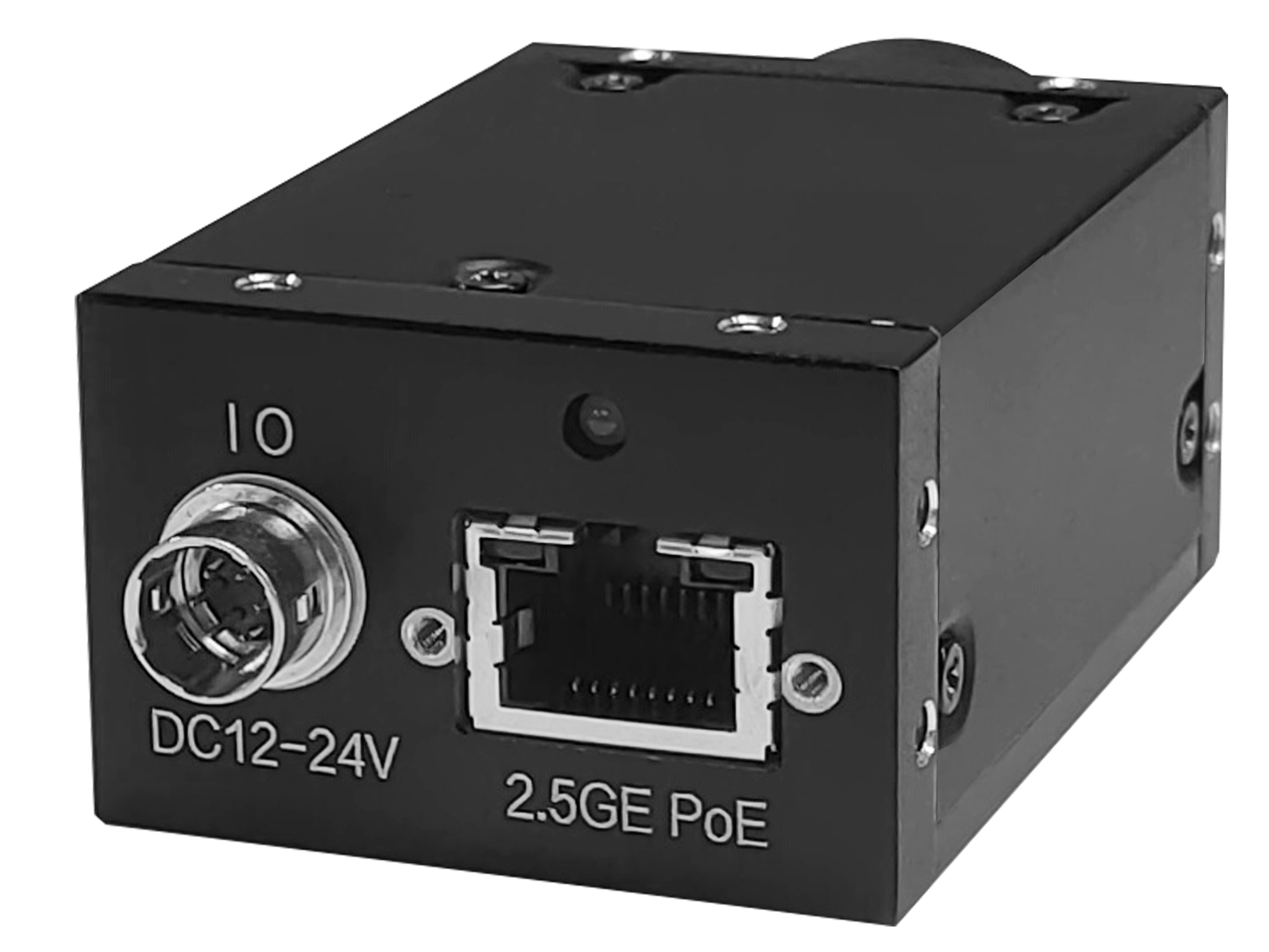

| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC 12~24V (±10%) 1.0A or PoE |
| Power Consumption |
1GigE: 4.7W (DC) or 5.2W (PoE) 2.5GigE: 5.9W (DC) or 6.8W (PoE) |
| Mechanical Dimensions | 44.0mm × 29.0mm × 76.1mm |
| Operation Temperature | 0~55℃ |
| Storage Temperature | -20~75℃ |
| Product Weight | 167.0g |
