| Model | UA5MEAGV-50M/C |
| Product Description | 5MP Global Shutter GigE Area Scan Camera |
| Sensor | Global Shutter CMOS |
| Image Mode | Mono / Color |
| Optical Size | 10.85 mm |
| Resolution | 2448 * 2048 |
| Pixel Size | 3.4μm * 3.4μm |
| Max Frame Rate | 24fps（50fps with SAccel™） |
| Data Format |
Monochrome Camera: Mono8/10/10p/12/12p Color Camera：Mono8/Bayer8/10/10p/12/12p/RGB8/BGR8/YUV422 |
| Dynamic Range | ≥ 66.0dB |
| Data Rate | 252MB/s |
| Trigger Mode | Free Run / External Trigger / Pulse Width Control |
| External Trigger | External IO / Software Trigger |
| Exposure Control | Pulse Width Control / Timed / Auto Function |
| Exposure Time | 6μs - 8s |
| Analog Gain | 1/2/4/8/17x |
| Digital Gain | 0.1-8.0x |

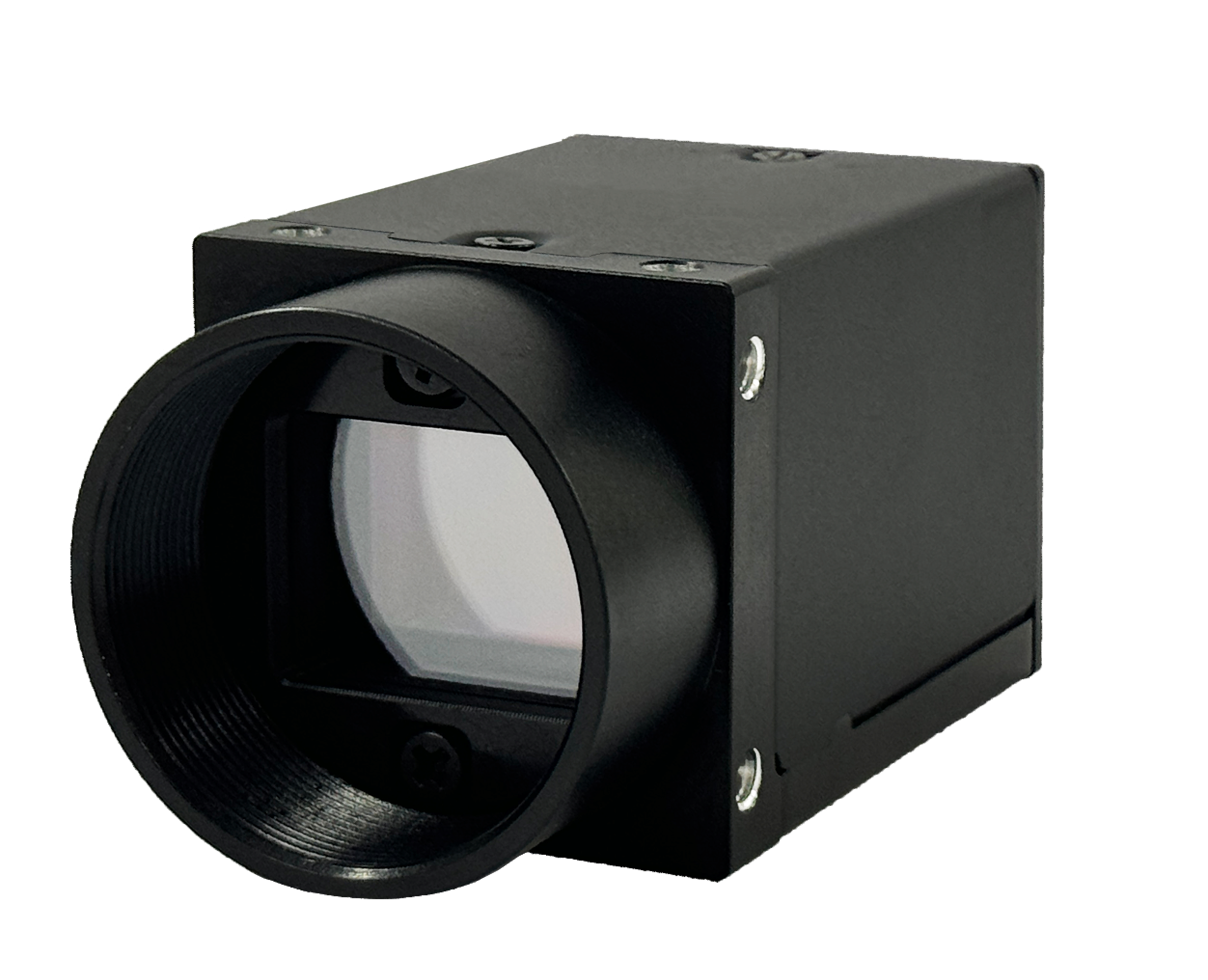

| Lens Mount | C Mount |
| Data Interface | GigE Vision |

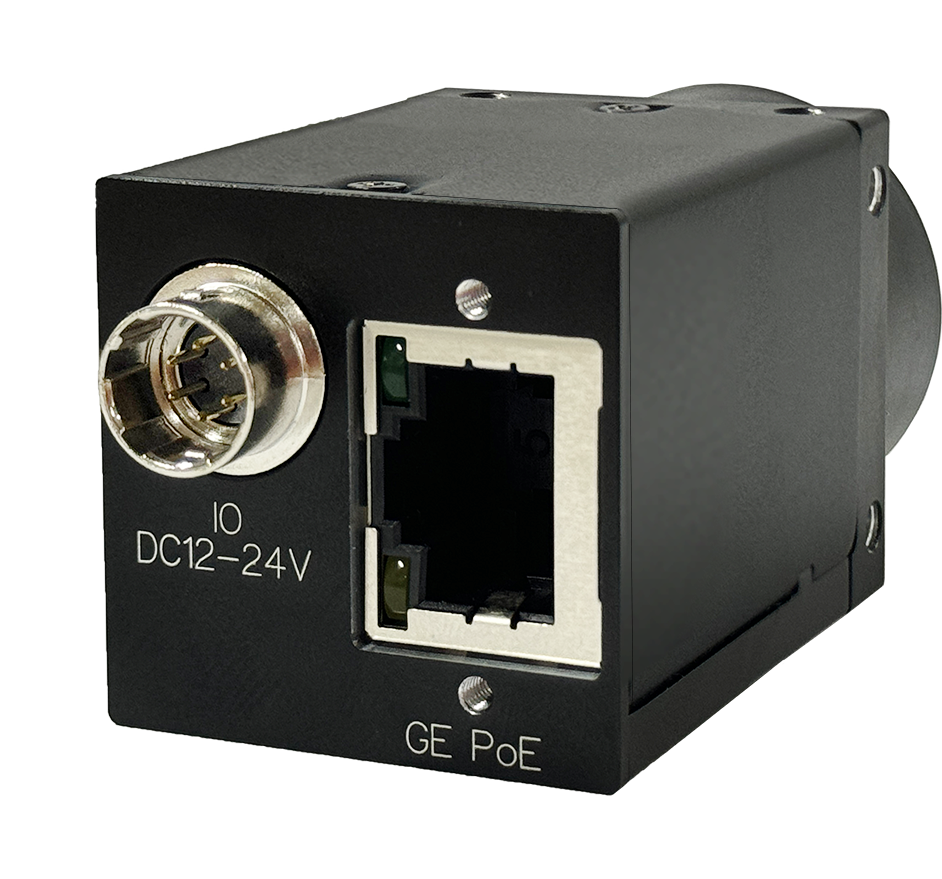

| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC 12~24V (±10%) 0.5A or PoE |
| Power Consumption | 4.0W (DC) or 4.8W (PoE) |
| Mechanical | 29.0mm x 29.0mm x 61.2mm |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 89.3g |
