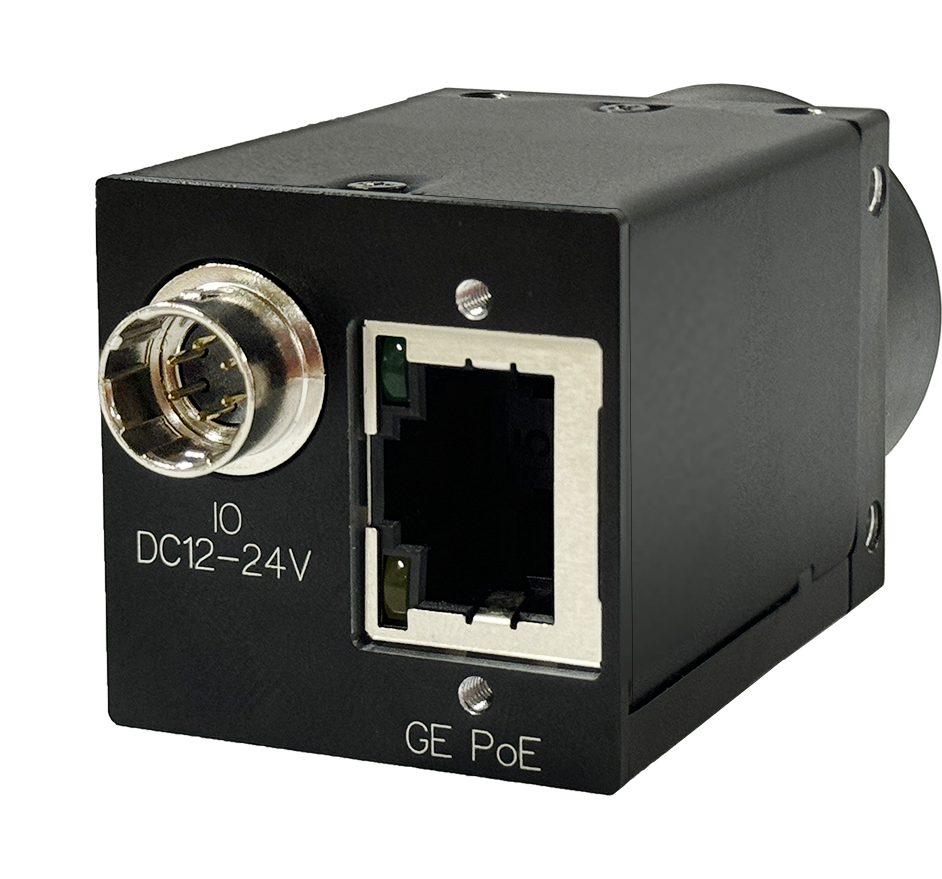

| Model | UA5MAAGV-36M/C |
| Product Description | 5MP Global Shutter GigE Area Scan Camera |
| Sensor | IMX264 |
| Image Mode | Mono / Color |
| Optical Size | 11.01 mm |
| Resolution | 2448 * 2048 |
| Pixel Size | 3.45μm * 3.45μm |
| Max Frame Rate | 24fps（36fps with SAccel™） |
| Data Format |
Monochrome Camera：Mono8/10/10p/12/12p Color Camera：Mono8/Bayer8/10/10p/12/12p/RGB8/YUV422_8 |
| Dynamic Range | ≥72.0 dB |
| Data Rate | 180MB/s |
| Trigger Mode | Free Run / External Pulse / Pulse Width Control |
| External Trigger | External IO / Software Trigger |
| Exposure Control | Pulse Width Control / Timed / Auto Function |
| Exposure Time |
Standard Exposure: 28 µs–10 s Ultra-Short Exposure: 1.08 µs–14.44 µs (step: 0.05387 µs) |
| Analog Gain | 0-24 |
| Digital Gain | 0.1-8.0x |
| Data Interface | GigE Vision |
| Lens Mount | C Mount |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC 12~24V (±10%) 0.5A or PoE |
| Power Consumption | 3.7W (DC) or 4.4W (PoE) |
| Mechanical | 29.0mm x 29.0mm x 60.9mm |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 89.3g |
