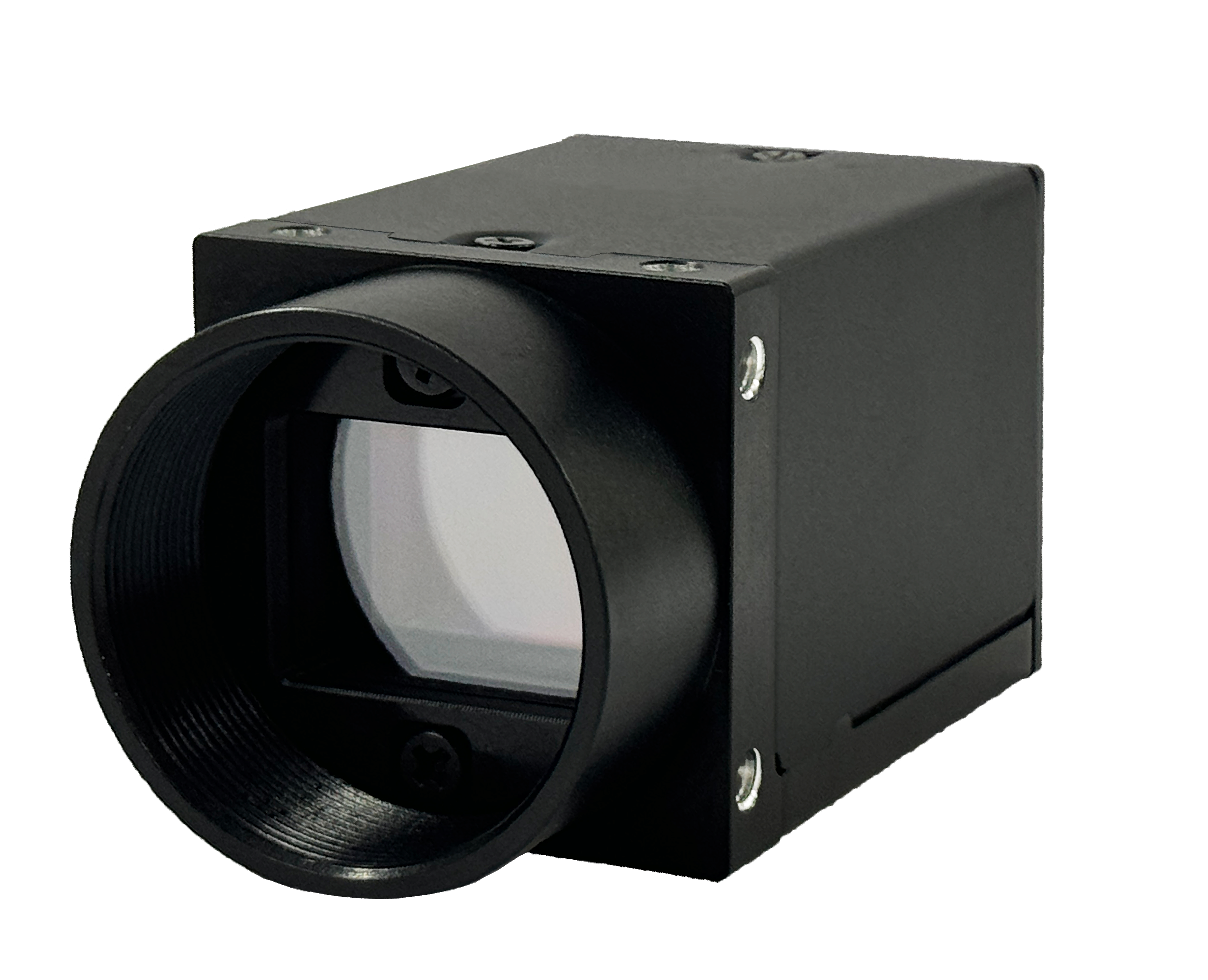

| Model | UA3M2AAGV-54M/C |
| Product Description | 3.2MP Global Area Scan Camera |
| Sensor | IMX265 |
| Image Mode | Mono / Color |
| Optical Size | 8.83 mm |
| Resolution | 2048 * 1536 |
| Pixel Size | 3.45μm * 3.45μm |
| Max Frame Rate | 37fps (54fps with SAccel™) |
| Data Format |
Monochrome Camera：Mono8/10/10p/12/12p Color Camera：Mono8/Bayer8/10/10p/12/12p/RGB8/YUV422_8 |
| Dynamic Range | ≥71.9 dB |
| Data Rate | 170MB/s |
| Trigger Mode | Free Run / External Pulse / External PWM |
| External Trigger | External IO / Software Trigger |
| Exposure Control | Pulse Width Control / Timed / Auto Function |
| Exposure Time | 26μs-10s |
| Analog Gain | 0-24 |
| Digital Gain | 0.1-8.0 |
| Data Interface | GigE |
| Lens Mount | C Mount |

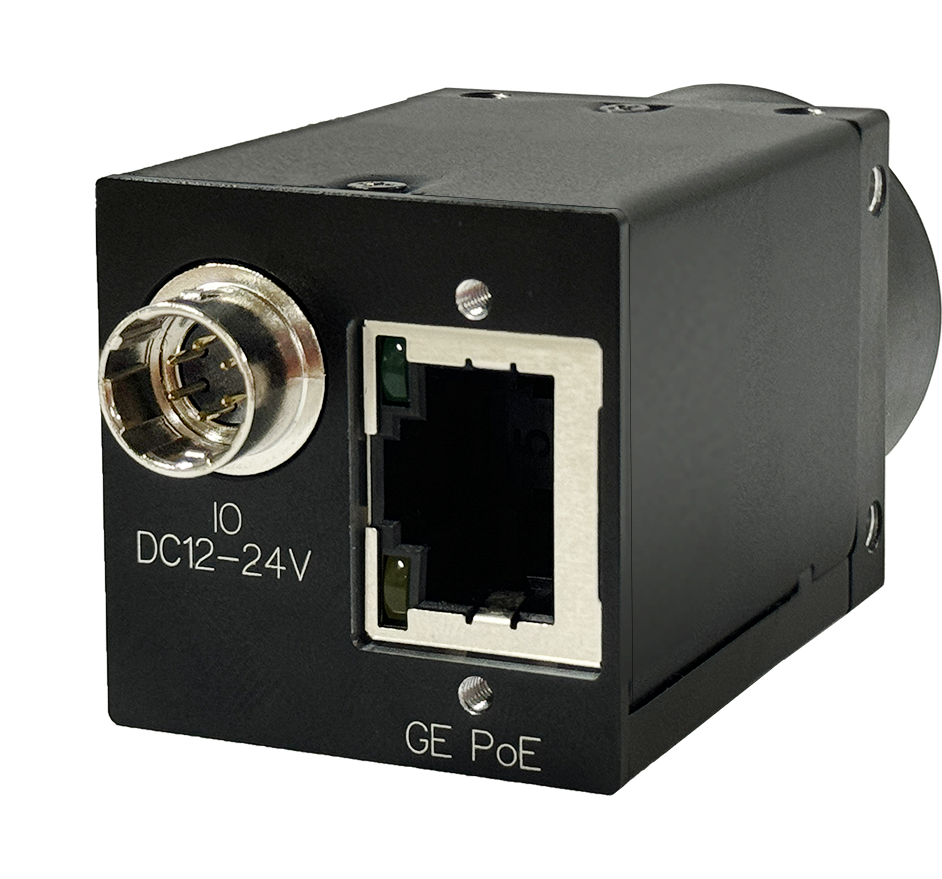

| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC 12~24V (±10%) 0.5A or PoE power supply |
| Power Consumption | 3.6W (DC) or 4.2W (PoE) |
| Dimensions | 29.0mm x 29.0mm x 60.9mm |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 89.3g |
