Standards

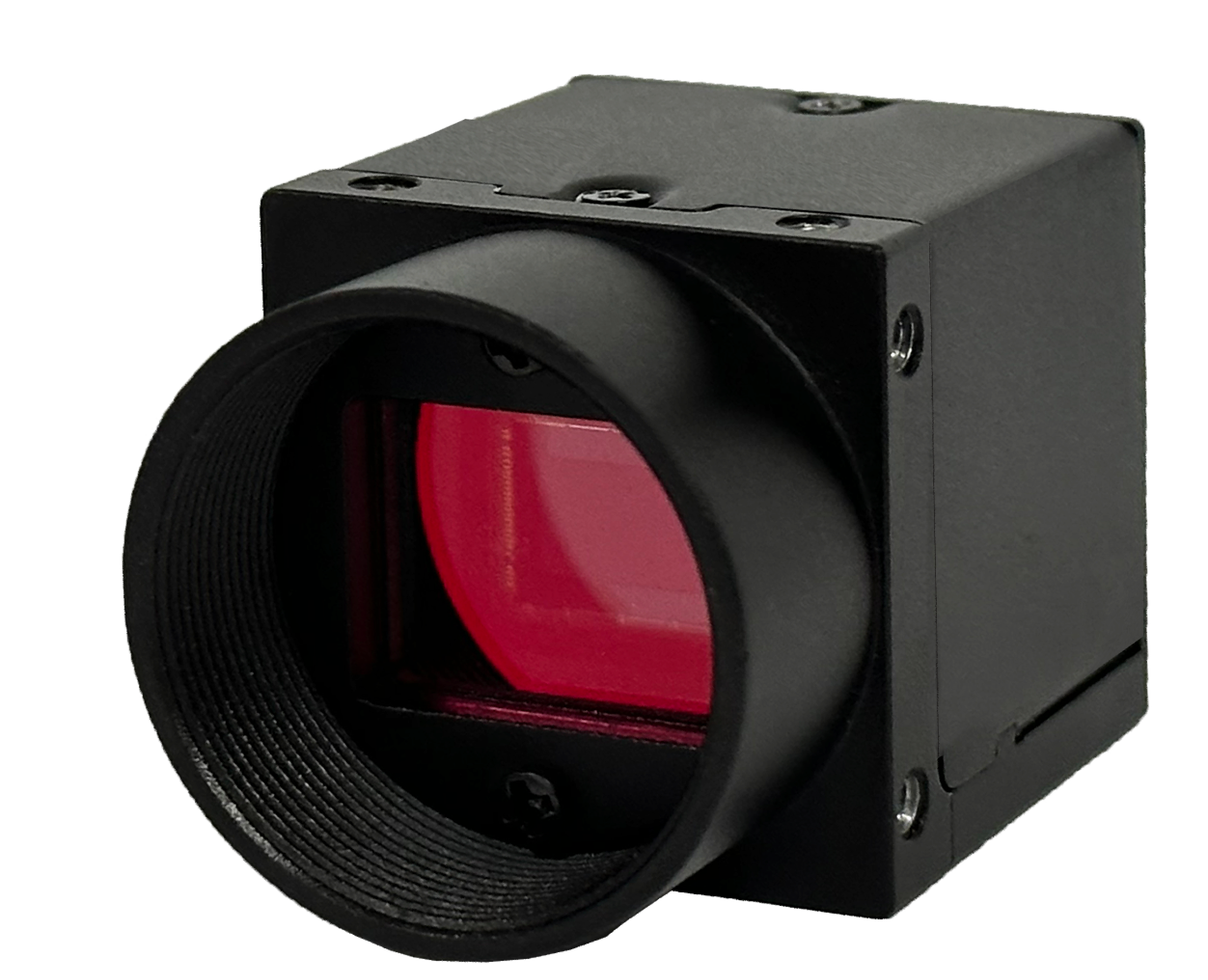

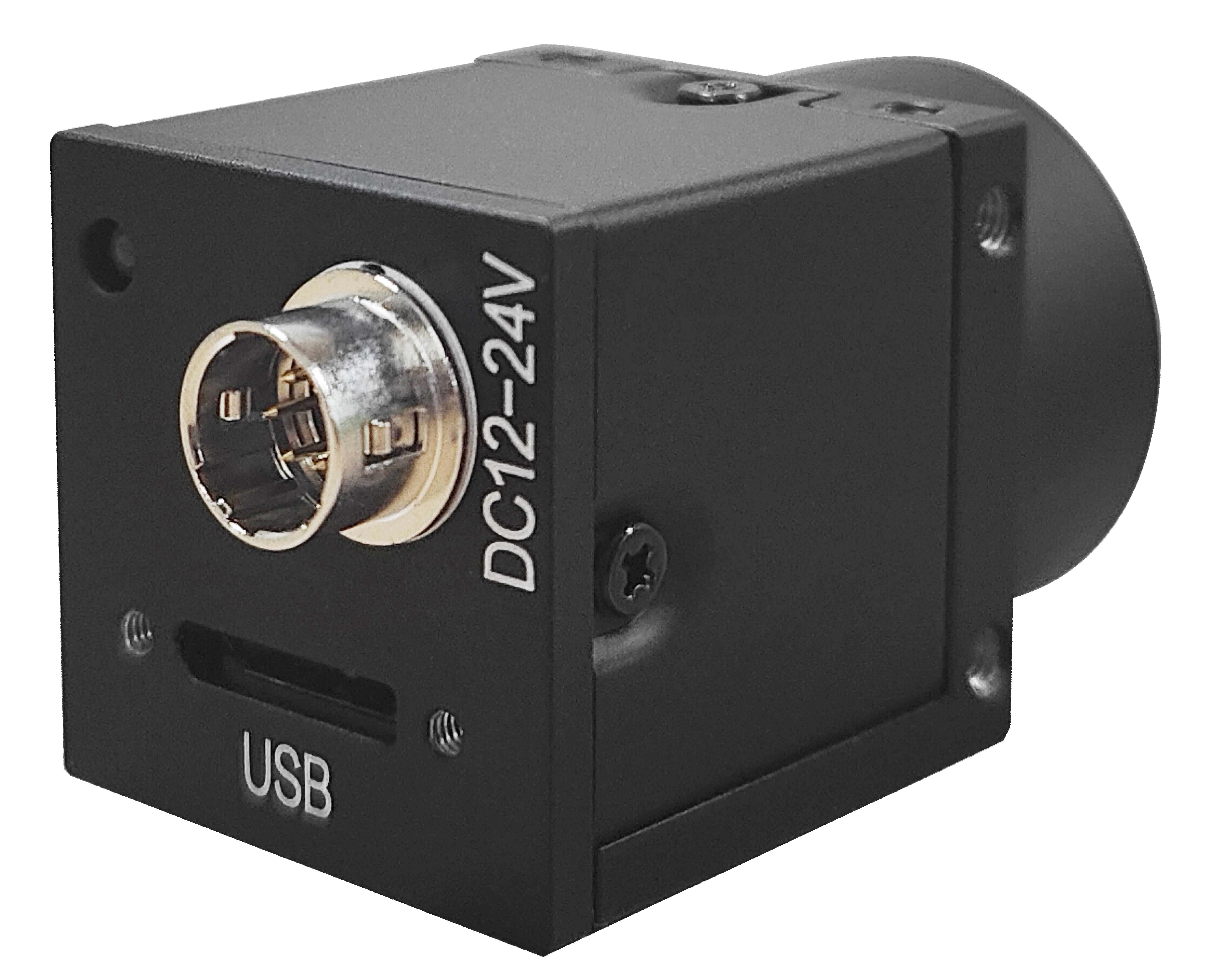

| Model | UA2M3AFU30-164M/C |
| Sensor | IMX174 |
| Image Mode | Color / Mono |
| Optical Size | 13.27mm |
| Resolution | 1920 * 1200 |
| Pixel Size | 5.86μm * 5.86μm |
| Max Frame Rate |
166.1fps@8bit，84.5fps@10/12/YUV422bit，134.7fps@10pbit， 112.6fps@12pbit，56.3fps@RGB8/BGR8 |
| Data Format |
Monochrome: Mono8/10/10p/12/12p Color: Mono8/Bayer8/10/10p/12/12p/RGB8/BGR8/YUV422 |
| Dynamic Range | ≥73.2dB |
| Data Rate | 389MB/s |
| Trigger Mode | Free-Run / External Pulse / External PWM |
| Trigger Source | Software Trigger / External IO |
| Exposure Control | Pulse Width Control / Timed |
| Exposure Time | 4μs-10s |
| Analog Gain | 0-24dB |
| Digital Gain | 0.004-8.0x |
| Lens Mount | C Mount |
| Data Interface | USB3.0 |
| Power Supply | DC 12~24V (±10%) 1.0A or PoUSB |
| Power Consumption | 2.8W(DC) or 2.5W(PoUSB) |
| Dimensions | 29.0mm x 29.0mm x 50.1mm |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 85.4g |
