Standards

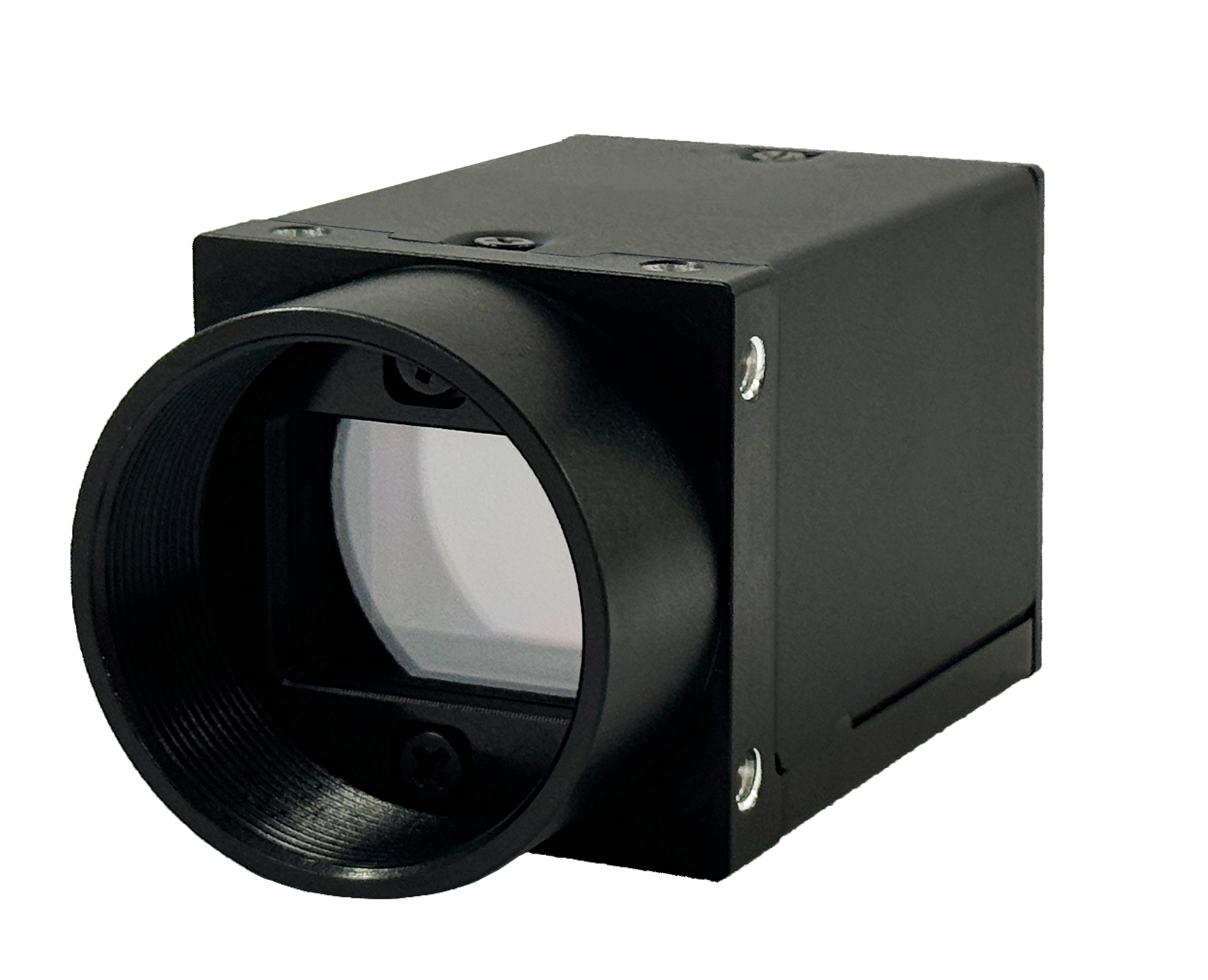

| Model | UA20MARGV-9M/C |
| Sensor | IMX183, Rolling Shutter CMOS |
| Image Mode | Color / Mono |
| Optical Size | 15.98 mm |
| Resolution | 5496 * 3672 |
| Pixel Size | 2.4μm * 2.4μm |
| Max Frame Rate | 6fps (9fps with SAccel™) |
| Data Format |
Monochrome: Mono8/10/10p/12/12p Color: Mono8/Bayer8/10/10p/12/12p/RGB8/YUV422_8 |
| Dynamic Range | ≥71.9dB |
| Data Rate | 182MB/s |
| Trigger Mode | Free-Run / External Pulse / External PWM |
| Trigger Source | External I/O Signal / Software Trigger Signal |
| Exposure Control | Timed / Pulse Width Control / Auto Function |
| Exposure Time | 32μs - 10s |
| Analog Gain | 0-24dB |
| Digital Gain | 0.1-8.0 × |
| Lens Mount | C Mount |

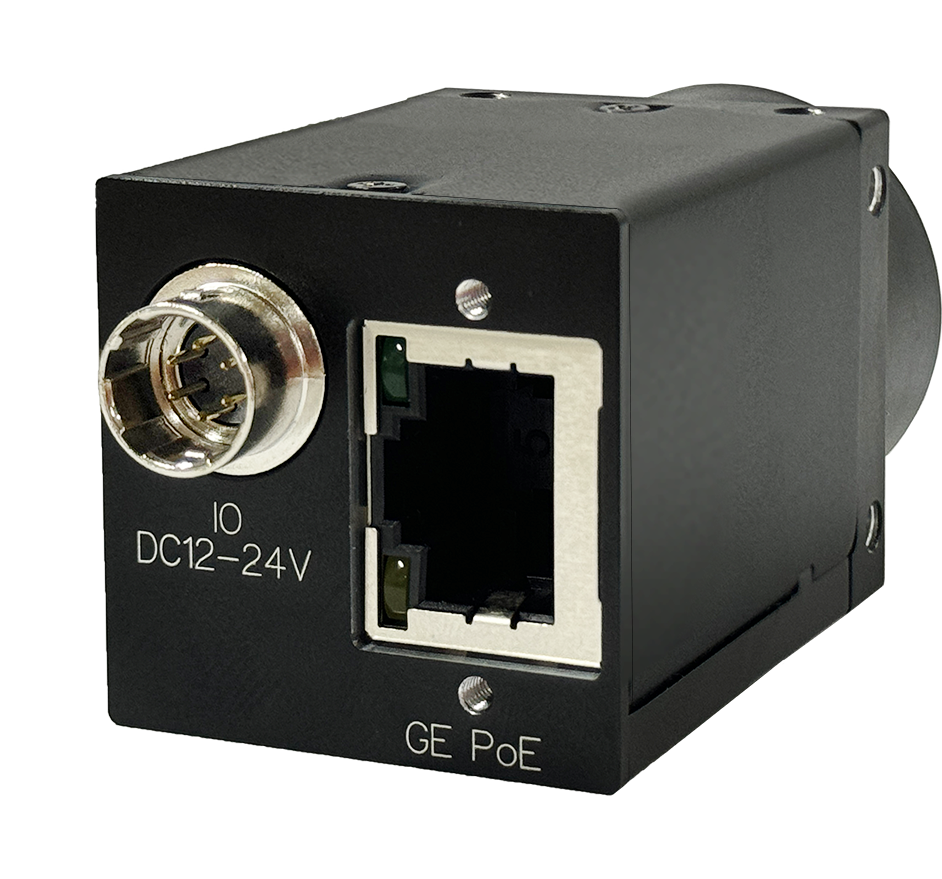

| Data Interface | GigE Vision |
| Power Supply | DC12-24V (±10%) 0.5A or PoE |
| Power Consumption | 3.4W (DC) or 4.0W (PoE) |
| Dimensions | 29.0 mm (W) × 29.0 mm (H) × 60.9 mm (D) (without adapter) |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 89.3g |
