Standards
| Model | UA1M5ABGV-107M/C |
| Sensor | IMX273 |
| Image Mode | Color / Mono |
| Optical Size | 6.21 mm |
| Resolution | 1440 * 1080 |
| Pixel Size | 3.45μm * 3.45μm |
| Max Frame Rate | 107fps |
| Image Buffer | 256MB |
| Pixel Format |
Monochrome Camera: Mono8/10/10p/12/12p Color Camera: Mono8/Bayer8/10/10p/12/12p/RGB8/YUV422_8 |
| Dynamic Range | ≥71.5dB |
| Data Rate |
Compression Transfer ON:166 MB/s Compression Transfer OFF:118 MB/s |
| Trigger Mode | Free Run / External Trigger / Pulse Width Control |
| Trigger Source | External IO / Software Trigger |
| Exposure Control | Pulse Width Control / Timed / Automatic Control |
| Exposure Time |
Standard Exposure: 22 µs–10 s Ultra-Short Exposure: 0.81 µs–13.31 µs (step: 0.05387 µs) |
| Analog Gain | 0-24dB |
| Digital Gain | 0.1-8.000x |

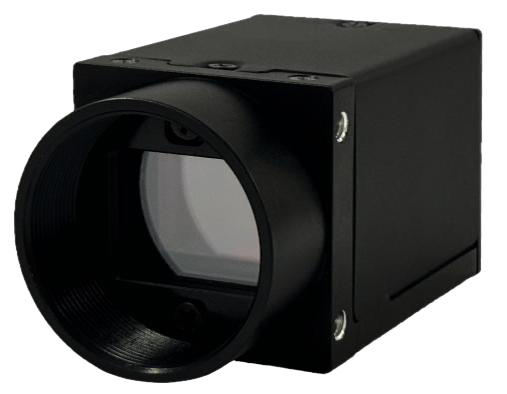

| Lens Mount | C Mount |
| Data Interface | GigE Vision |

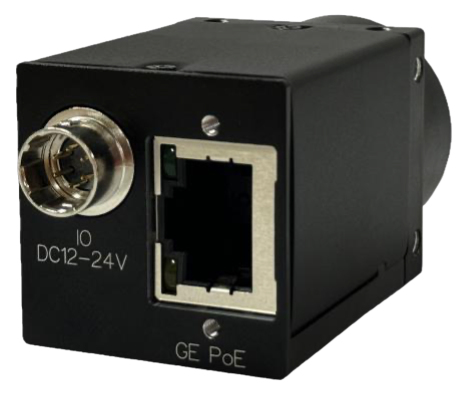

| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC12-24V(±10%) 0.5A or PoE |
| Power Consumption | 3.5W (DC) / 4.2W (PoE) |
| Dimensions | 29.0mm(W) x 29.0mm(H) x 60.9mm(D) (Without adapter) |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 89.3g |
