Standards

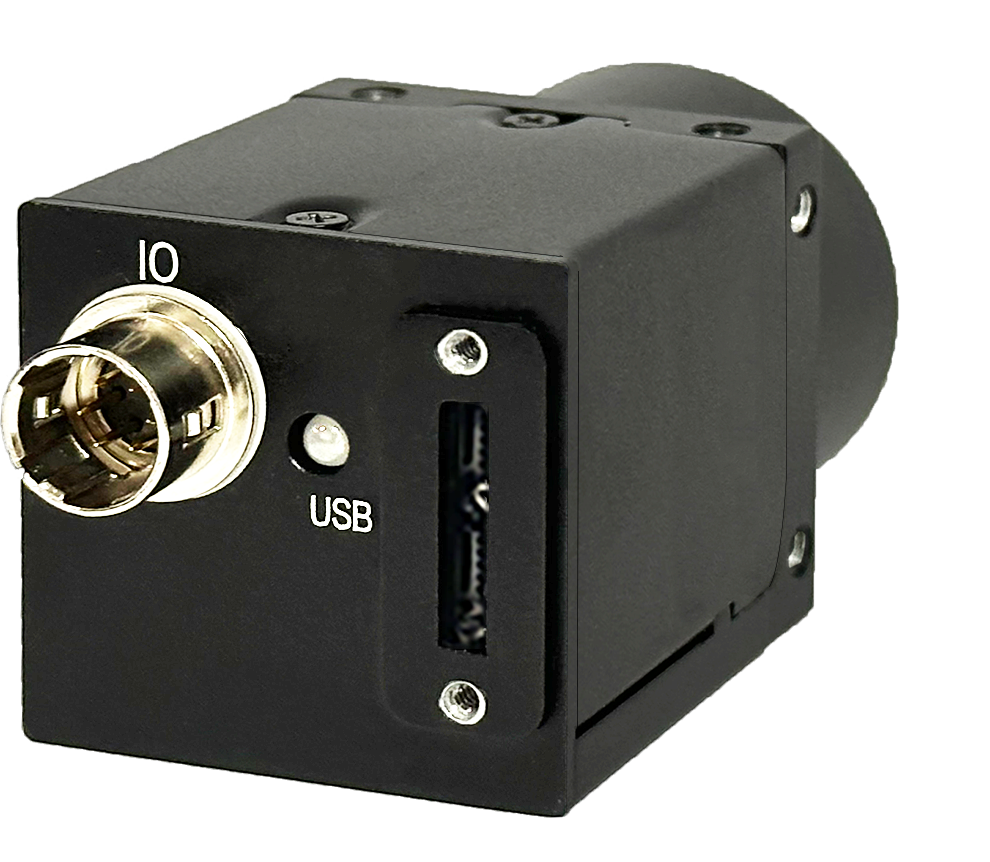

| Model | UA12MARU30-30M/C |
| Sensor | IMX226 |
| Image Mode | Color / Mono |
| Optical Size | 9.32mm |
| Resolution | 4024 * 3036 |
| Pixel Size | 1.85μm * 1.85μm |
| Max Frame Rate | 30.3fps@8bit, 16.0fps@10/12/16bit, 25.7fps@10pbit, 21.4fps@12pbit |
| Data Format |
Monochrome: Mono8/10/10p/12/12p Color: Mono8/Bayer8/10/10p/12/12p/RGB8/BGR8/YUV422 |
| Dynamic Range | ≥69.7dB |
| Data Rate | 392 MB/s |
| Trigger Mode | Free-Run / External Pulse / External PWM |
| External Trigger | Software Trigger / External IO |
| Exposure Control | Timed / Pulse Width Control / Auto Function |
| Exposure Time | 2μs - 10s |
| Analog Gain | 0-24dB |
| Digital Gain | 0.004-8.0x |
| Lens Mount | C Mount |
| Data Interface | USB3.0 |
| Power Supply | DC 12~24V (±10%)1.0A or PoUSB |
| Power Consumption | 2.6W(DC) or 2.4W(PoUSB) |
| Dimensions | 29.0mm x 29.0mm x 50.1mm |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 85.4g |
