Standards
| Model | TTS65MU30-5M/C |
| Sensor Type | GMAX3265 |
| Image Mode | Mono / Color / |
| Optical Size | 37.36 mm |
| Resolution | 9344 * 7000 |
| Pixel Size | 3.2μm * 3.2μm |
| Max Frame Rate | 5.32fps@8bit，2.55fps@12bit |
| Bit Depth | 8/12 bit |
| Dynamic Range | ≥66 dB |
| Data Rate | 350 MB/s |
| Trigger Mode | Free Run / External Trigger / External PWM |
| Trigger Source | Software Trigger / External IO |
| Exposure Control | Timed / Pulse Width Control |
| Exposure Time | 22μs-10s(Step:1μs) |
| Analog Gain | 0-64dB |
| Digital Gain | 0.1-8.0× |

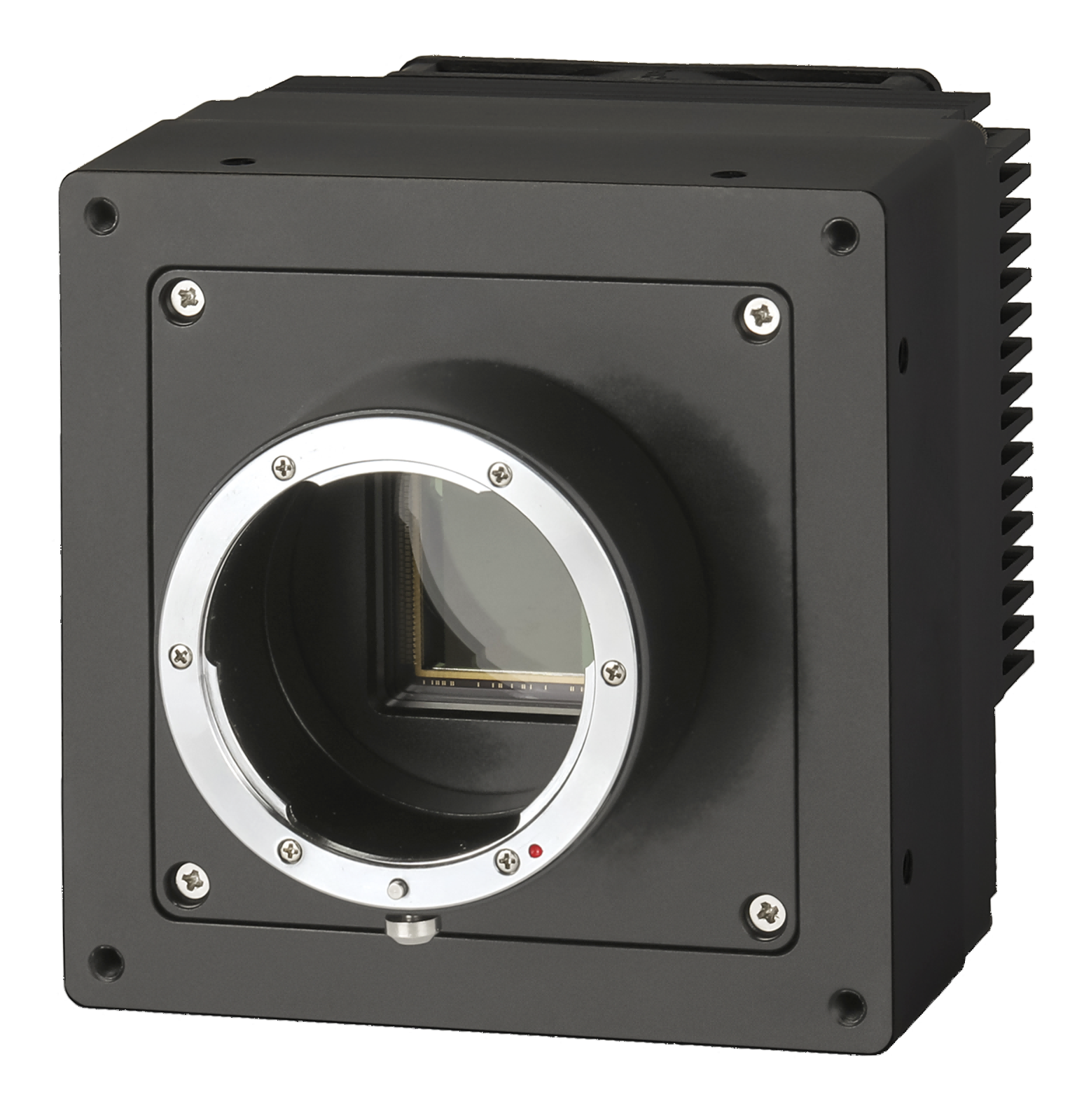

| Lens Mount | F Mount |
| Data Interface | USB3.0 |

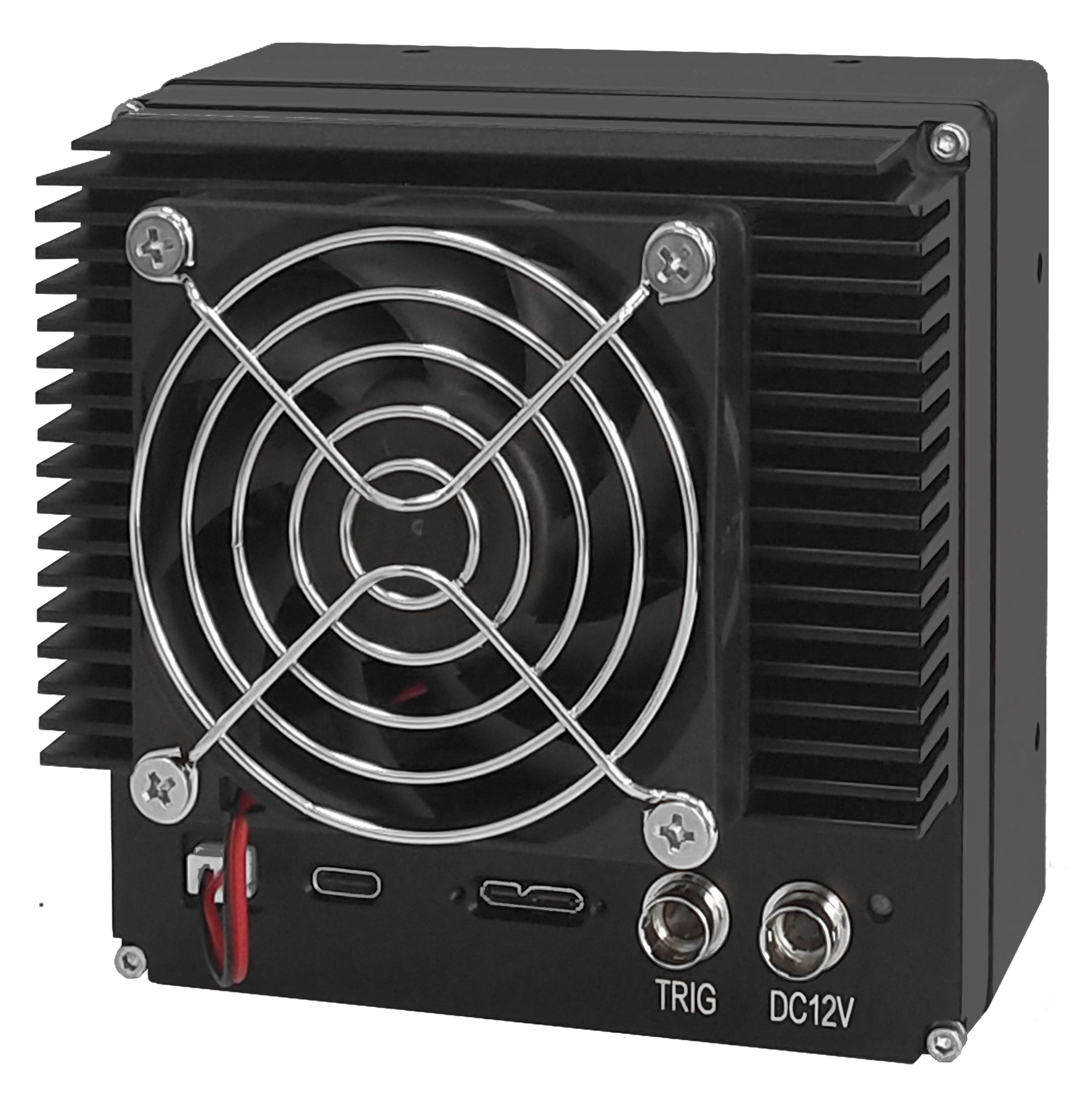

| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC12V±10% 5.0A |
| Power Consumption |
TEC On: 44.2W TEC Off: 12.8W |
| Cooling Mode | TEC Cooling |
| TEC Cooling | About 20℃ below ambient temperature |
| Dimensions | 111.0mm(W) × 111.0mm(H) × 124.0mm(D) |
| Operating Temperature | 0-50℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 1773.4g |
