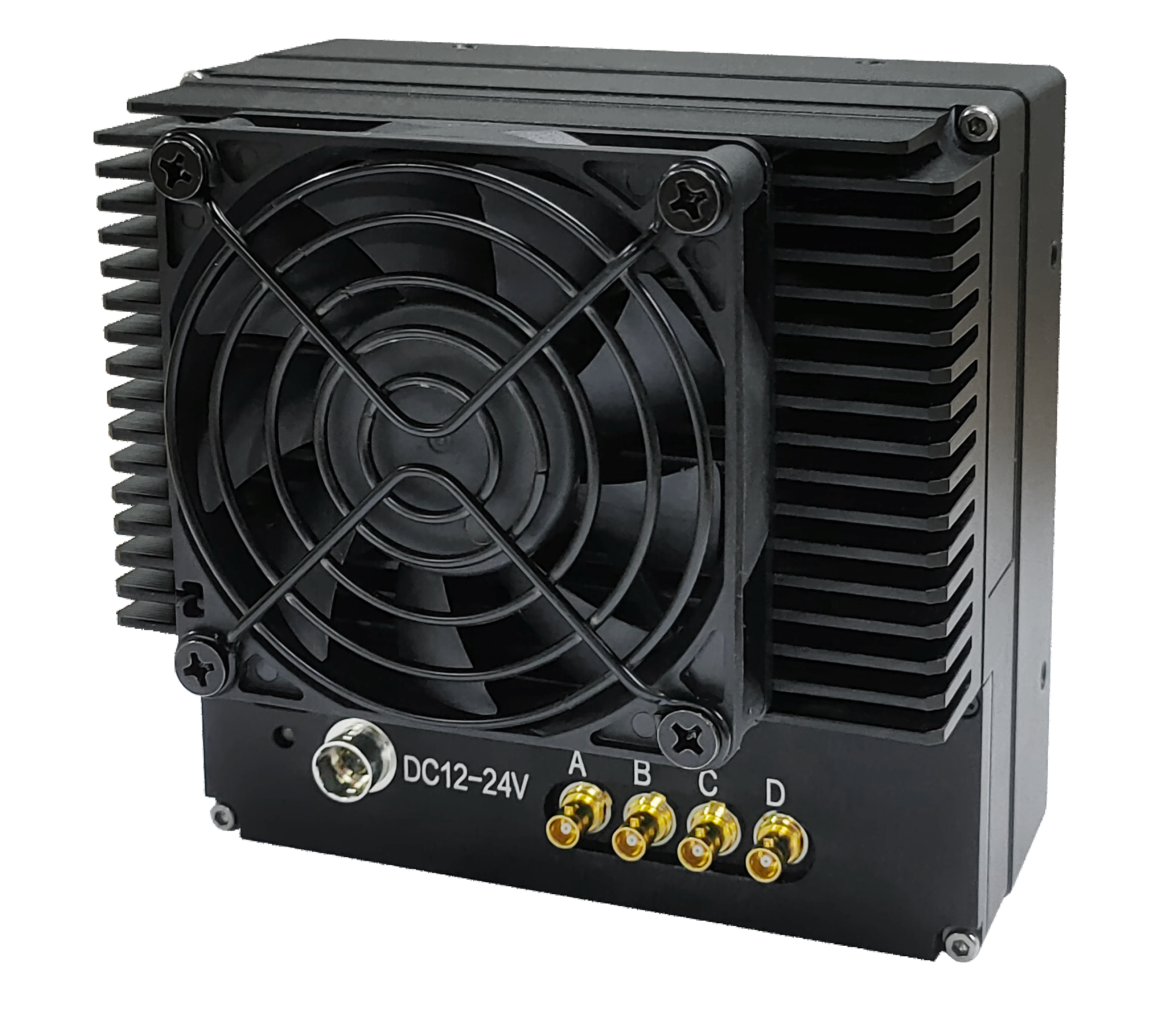

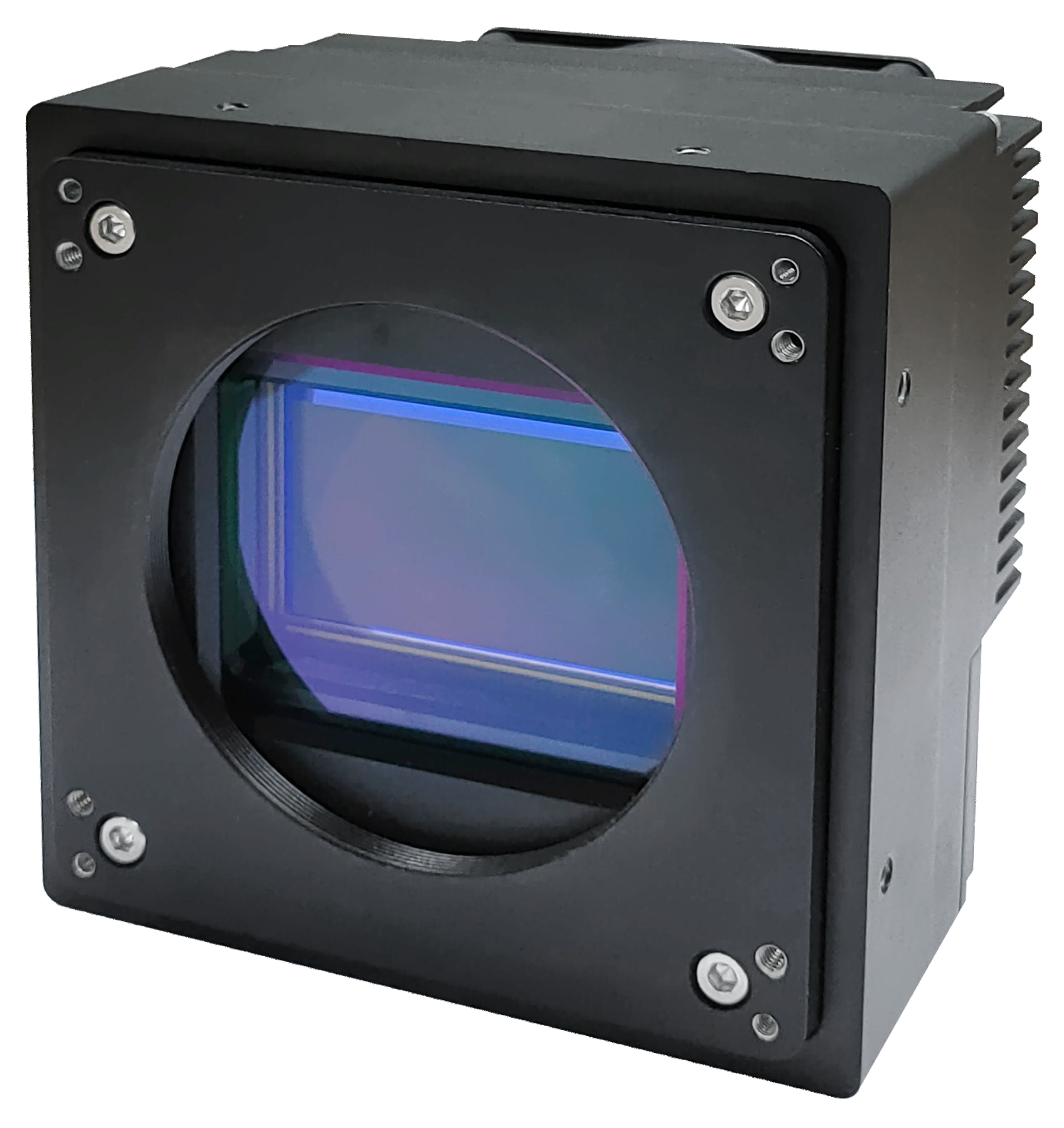

| Model | TTS152MPCXP10-16M/C |
| Description | 152MP Global CMOS Area Scan Camera |
| Sensor | Global Shutter CMOS |
| Resolution | 16544 * 9200 |
| Pixel Size | 3.2μm |
| Image Mode | Mono / Color |
| Optical Size | 60.60mm |
| Dynamic Range | ≥66.0dB |
| SNR | 39.7dB |
| Max Frame Rate | 16.247fps@8/10/12bit |
| Data Format | 8/10/12bit |
| Data Rate | 3709MB/s |
| Exposure Control | External PWM / Timed |
| Exposure Time | 18.95μs~60s |
| Trigger Mode | Free Run / External Pulse / External PWM |
| Trigger Signal | CXP Signal / External IO Signal / Software Trigger Signal |
| Analog Gain | ×1 / ×2 / ×3 |
| Digital Gain | 0.1~8× |
| Data Interface | CoaXPress10 |
| Lens Mount | M72 * 0.75 |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC 12~24V（±10%） 5.0A |
| Power Consumption |
TEC OFF：27.1W TEC ON：72.7W |
| TEC Cooling | Approximately 19℃ below ambient temperature |
| Mechanical Dimensions | 111.0mm x 111.0mm x 102.5mm |
| Operation Temperature | 0~55℃ |
| Storage Temperature | -20~75℃ |
| Product Weight | 1606.2g |
