Standards

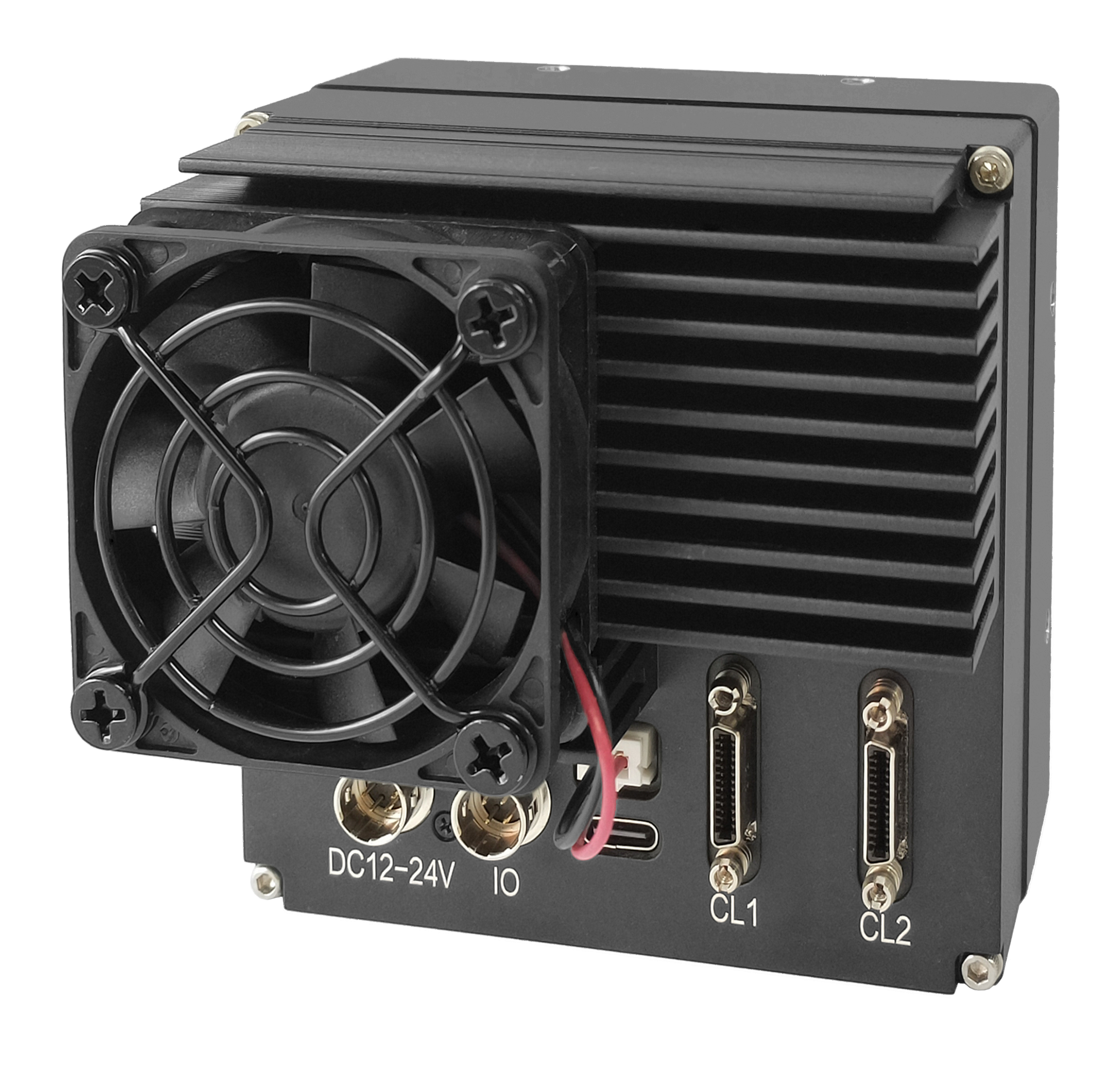

| Model | TTS120MCL-7M/C |
| Sensor Type | Rolling Shutter CMOS |
| Image Mode | Mono / Color |
| Optical Size | 35.45 mm |
| Resolution | 13248 * 9176 |
| Pixel Size | 2.2μm * 2.2μm |
| Max Frame Rate | 6.92fps@10Tap, 5.54fps@8Tap, 2.77fps@4Tap, 1.38fps@2Tap |
| Bit Depth | 8/10 bit |
| Dynamic Range | ≥61.0 dB |
| Data Rate | 840 MB/s |
| Trigger Mode | Free Run / External Trigger / External PWM |
| Trigger Source | Camera Link CC / External IO |
| Exposure Control | Timed / Pulse Width Control |
| Exposure Time | 94μs-10s(Step:16μs) |
| Analog Gain | 1/2/4× |
| Digital Gain | 0.01 - 8.00× |
| Lens Mount | M72 × 0.75 / F Mount |
| Data Interface | Camera Link |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC 12-24V(±10%) 4A |
| Power Consumption | 29.0 W |
| Cooling Mode |
TEC Cooling Fan Cooling |
| TEC Cooling | About 18℃ below ambient temperature |
| Dimensions |
M72: 90.0mm × 90.0mm × 92.15mm F Mount: 90.0mm × 90.0mm × 119.13mm |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 908.8g |
