Standards

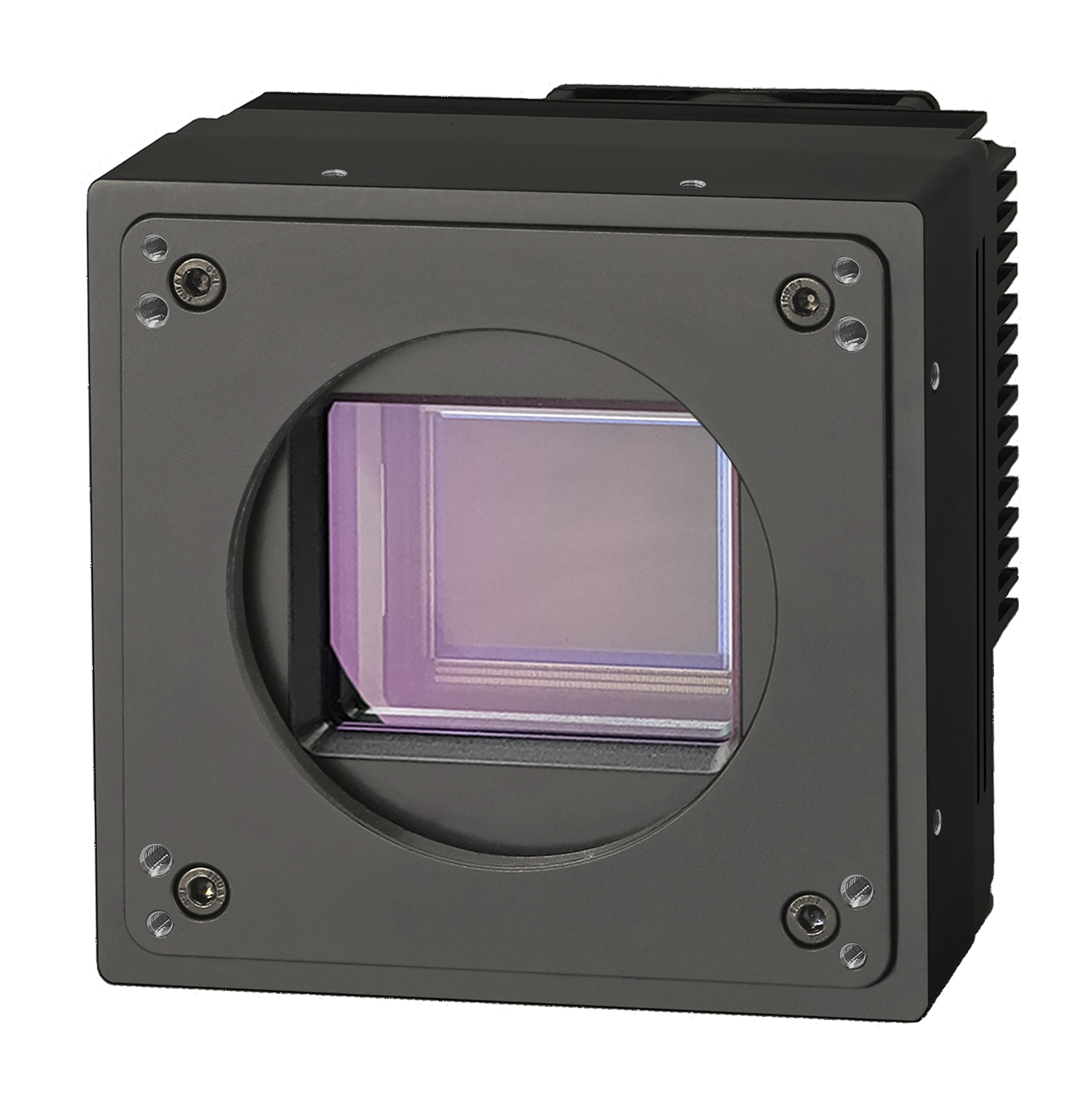

| Model | TTS103MCXP10-24M/C |
| Sensor Type | GMAX32103 |
| Image Mode | Mono / Color |
| Optical Size | 46.50 mm |
| Resolution | 11248 * 9200 |
| Pixel Size | 3.2μm * 3.2μm |
| Max Frame Rate | 24.85fps@8/10bit, 23.87fps@12bit |
| Bit Depth | 8/10/12 bit |
| Dynamic Range | ≥64.5dB |
| Data Rate | 3700 MB/s |
| Trigger Mode | Free Run / External Trigger / External PWM |
| Trigger Source | External IO / CXP Trigger |
| Exposure Control | Timed / Pulse Width Control |
| Exposure Time | 19µs-548s(Step:1µs) |
| Analog Gain | 1/2/3.7× |
| Digital Gain | 0.004-8.000× |
| Lens Mount | M72 × 0.75 |
| Data Interface | CoaXPress10 |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC12-24V(±10%) 5A |
| Power Consumption | 42.5W |

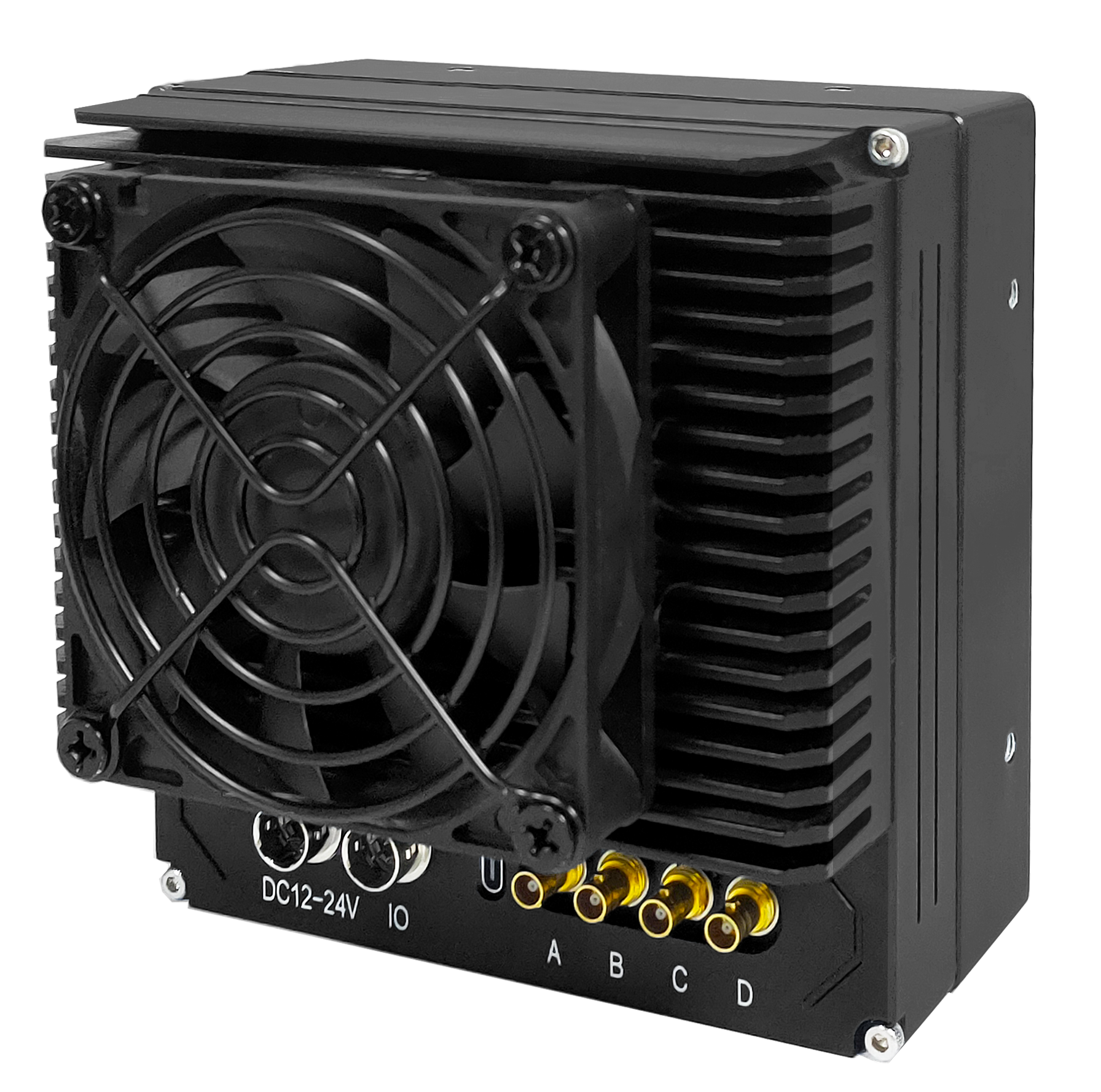

| Cooling Mode |
TEC Cooling Fan Cooling |
| TEC Cooling | About 20℃ below ambient temperature |
| Dimensions | 111.0mm(W) × 111.0mm(H) × 91.36mm(D)(Without adapter) |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 1310.6g |
