Standards

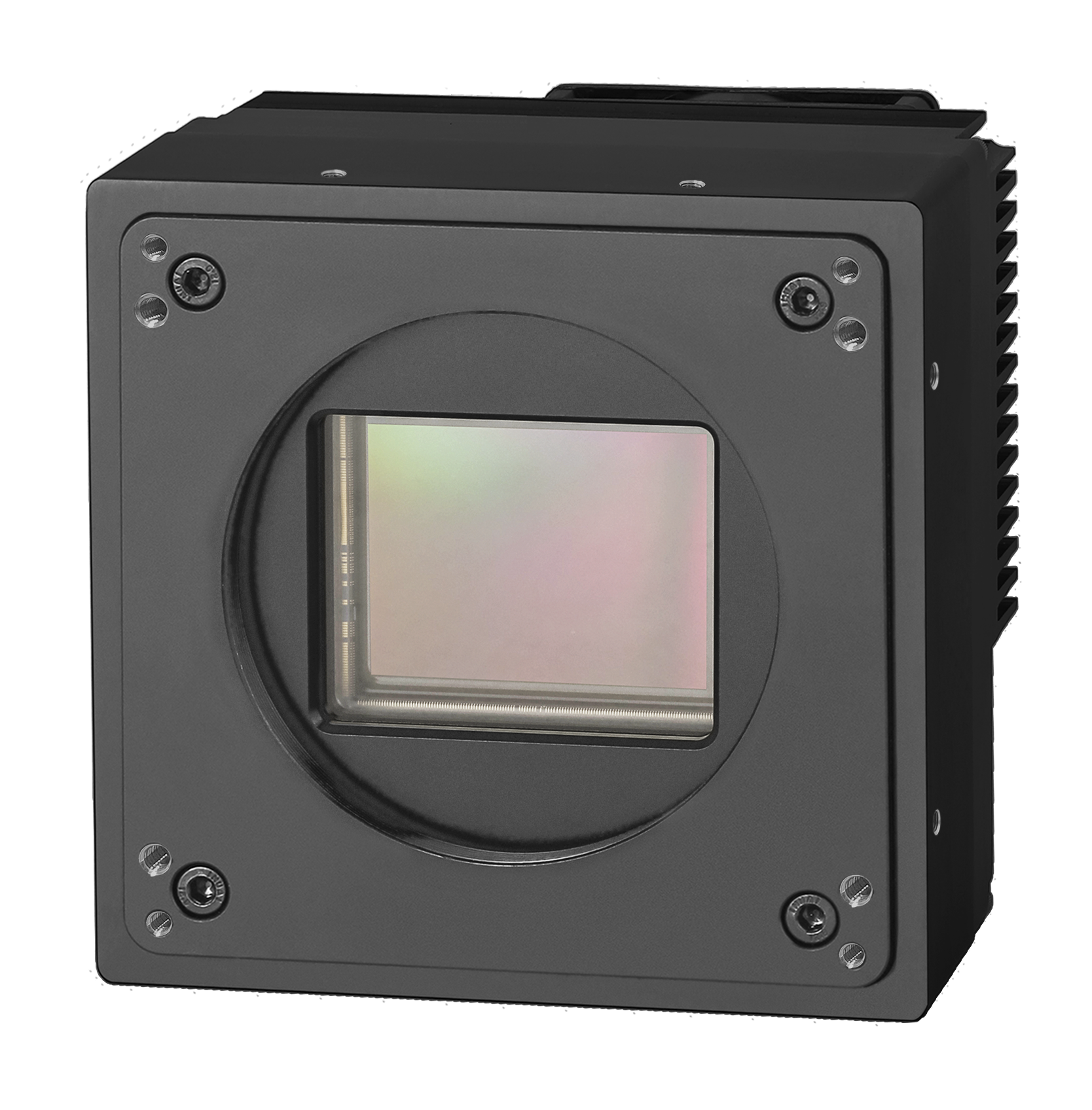

| Model | TTS101M2CL-8M/C |
| Sensor Type | IMX461 |
| Image Mode | Mono / Color |
| Optical Size | 54.78 mm |
| Resolution | 11656 * 8742 |
| Pixel Size | 3.76μm * 3.76μm |
| Max Frame Rate | 7.86fps@10Tap, 6.26fps@8Tap, 3.13fps@4Tap |
| Bit Depth | 8/10/12/16bit |
| Dynamic Range | ≥78 dB |
| Data Rate | 801 MB/s |
| Trigger Mode | Free Run / External Trigger / External PWM |
| Trigger Source | Camera Link CC / External IO |
| Exposure Control | Timed / Pulse Width Control |
| Exposure Time | 73μs~60s (Step: 1μs) |
| Analog Gain | 0-96dB |
| Digital Gain | 0.01-8.00× |
| Lens Mount | M72 × 0.75 |

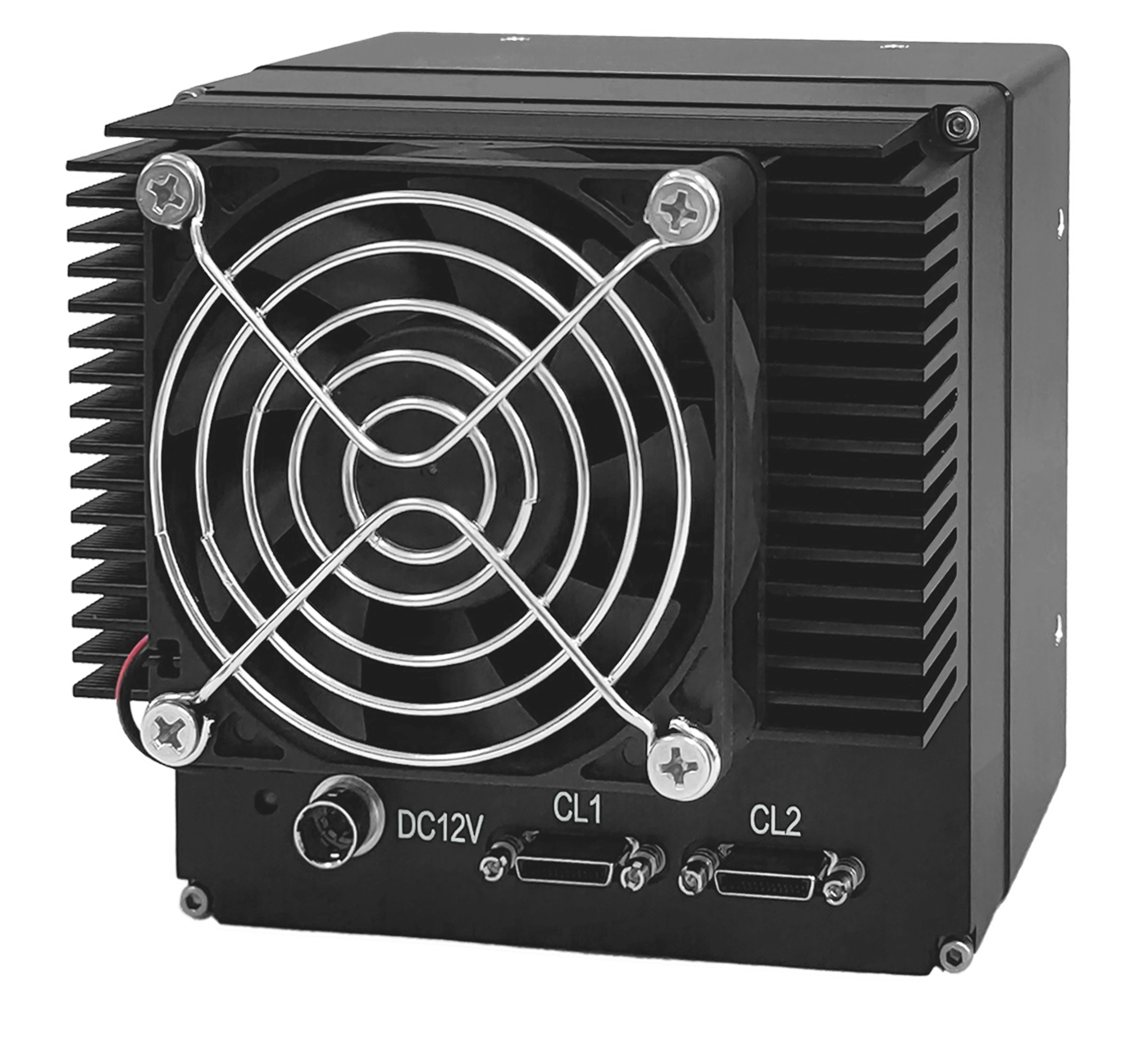

| Data Interface | Camera Link |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC12V±10% 5A |
| Power Consumption | 50.0 W |
| Cooling Mode | TEC Cooling |
| TEC Cooling | About 20℃ below ambient temperature |
| Dimensions | 111.0mm(W) × 111.0mm(H) × 103.2mm(D) |
| Operating Temperature | 0-50℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 1716.9g |
