Standards

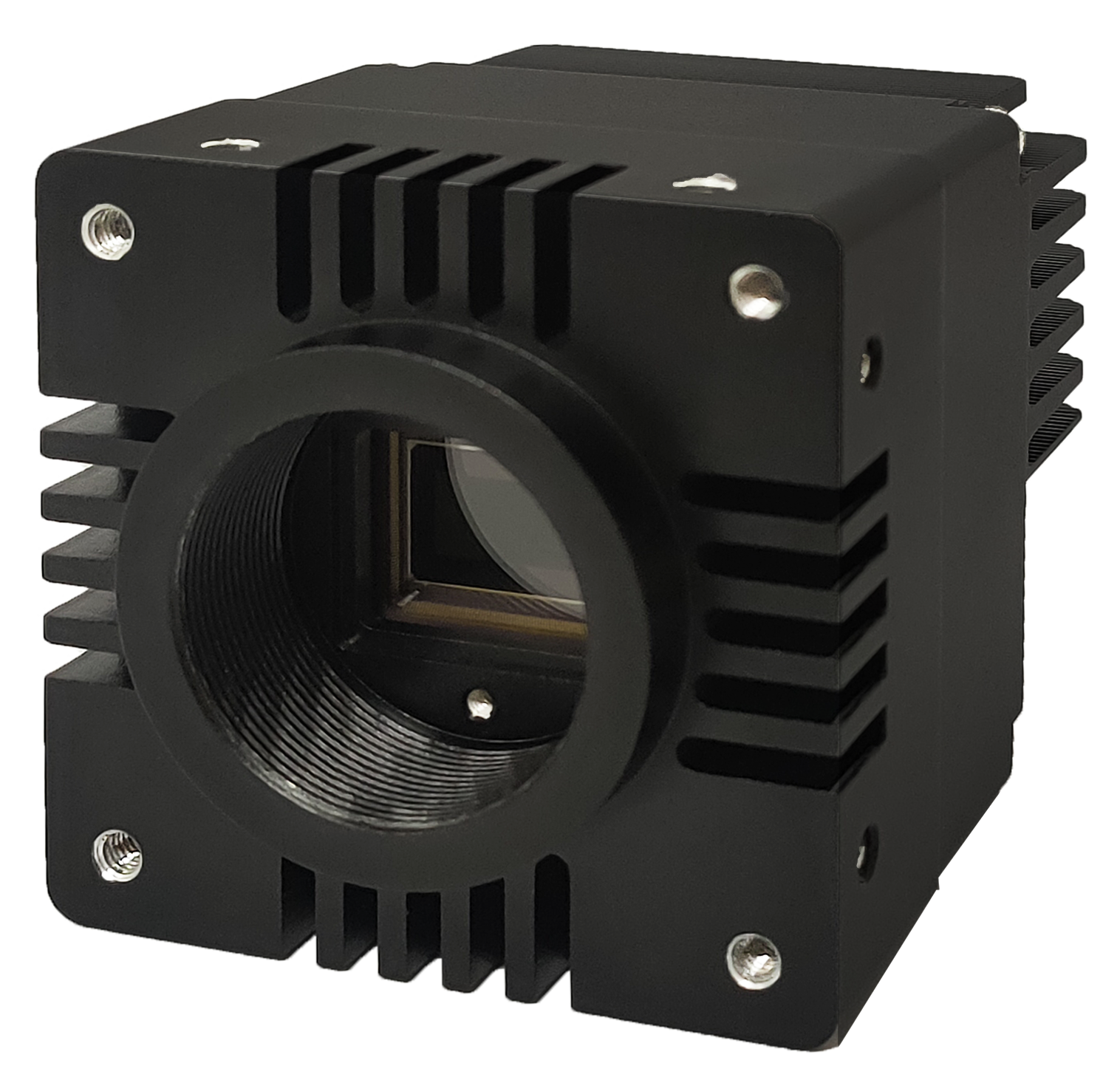

| Model | TS9MCXP12-260M/C |
| Sensor | Global Shutter CMOS |
| Image Mode | Color / Mono |
| Optical Size | 11.79 mm |
| Resolution | 4192 * 2160 |
| Pixel Size | 2.5μm * 2.5μm |
| Max Frame Rate | 261.56fps@8bit，211.28fps@10bit |
| Bit Depth | 8/10 bit |
| Dynamic Range | ≥62.0 dB |
| Data Rate | 2390 MB/s |
| Trigger Mode | Free run / External Pulse / External PWM |
| Trigger Source | External IO / CXP Trigger |
| Exposure Control | Timed / Pulse Width Control |
| Exposure Time | 2μs-10s(Step:0.01μs) |
| Digital Gain | 0.001-8.000x |
| Lens Mount | C Mount |
| Data Interface | CoaXPress12 |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC12-24V(±10%) 1.0A |
| Power Consumption | 7.9W |
| Dimensions | 50.0mm x 50.0mm x 62.2mm |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 215.7g |
