Standards

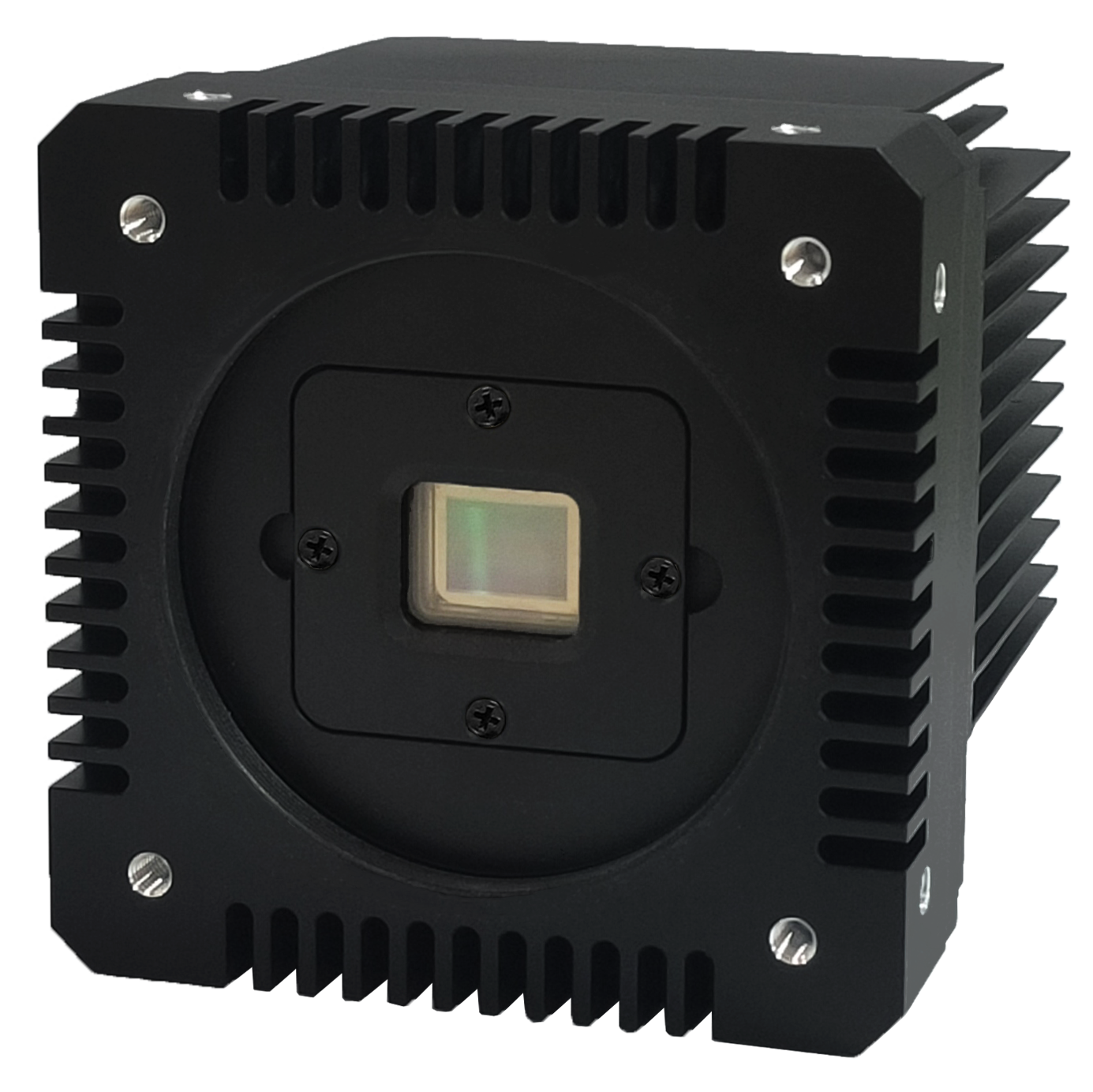

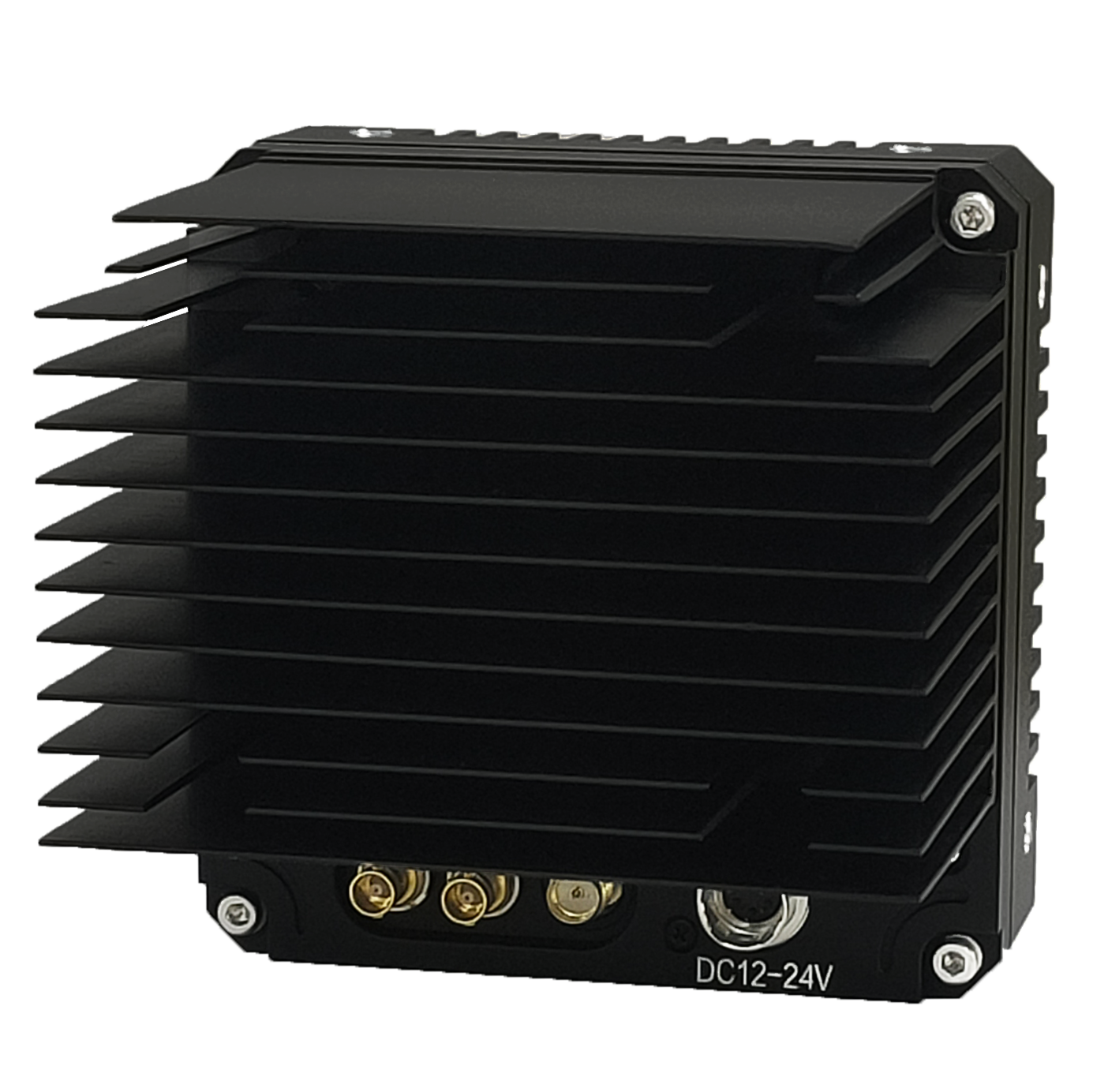

| Model | TS8MSCXP10-194U |
| Sensor | IMX487 |
| Image Mode | Mono |
| Optical Size | 11.04 mm |
| Resolution | 2848 * 2848 |
| Pixel Size | 2.74μm * 2.74μm |
| Max Frame Rate | 194.29fps@8bit,175.03fps@10bit,127.63fps@12bit |
| Bit Depth | 8/10/12 bit |
| Dynamic Range | ≥69.5 dB |
| Data Rate | 1553MB/s |
| Trigger Mode | Free-Run / External Pulse / External PWM |
| Trigger Source | External IO / CXP Trigger |
| Exposure Control | Timed / Pulse Width Control |
| Exposure Time |
Exposure:5.81us~10s (Step: 0.0135us) Fast Exposure: 27.9us~10s Ultra-short Exposure:1.02us~2.47us |
| Analog Gain | 0-24dB |
| Digital Gain | 0.001-8.000x |
| Lens Mount | M58 * 0.75 |
| Data Interface | CoaXPress10 |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC12-24V(±10%) 1.0A |
| Power Consumption | 7.0 W |
| Dimensions | 80.0mm(W) x 80.0mm(H) x 75.4mm(D) |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
