Standards

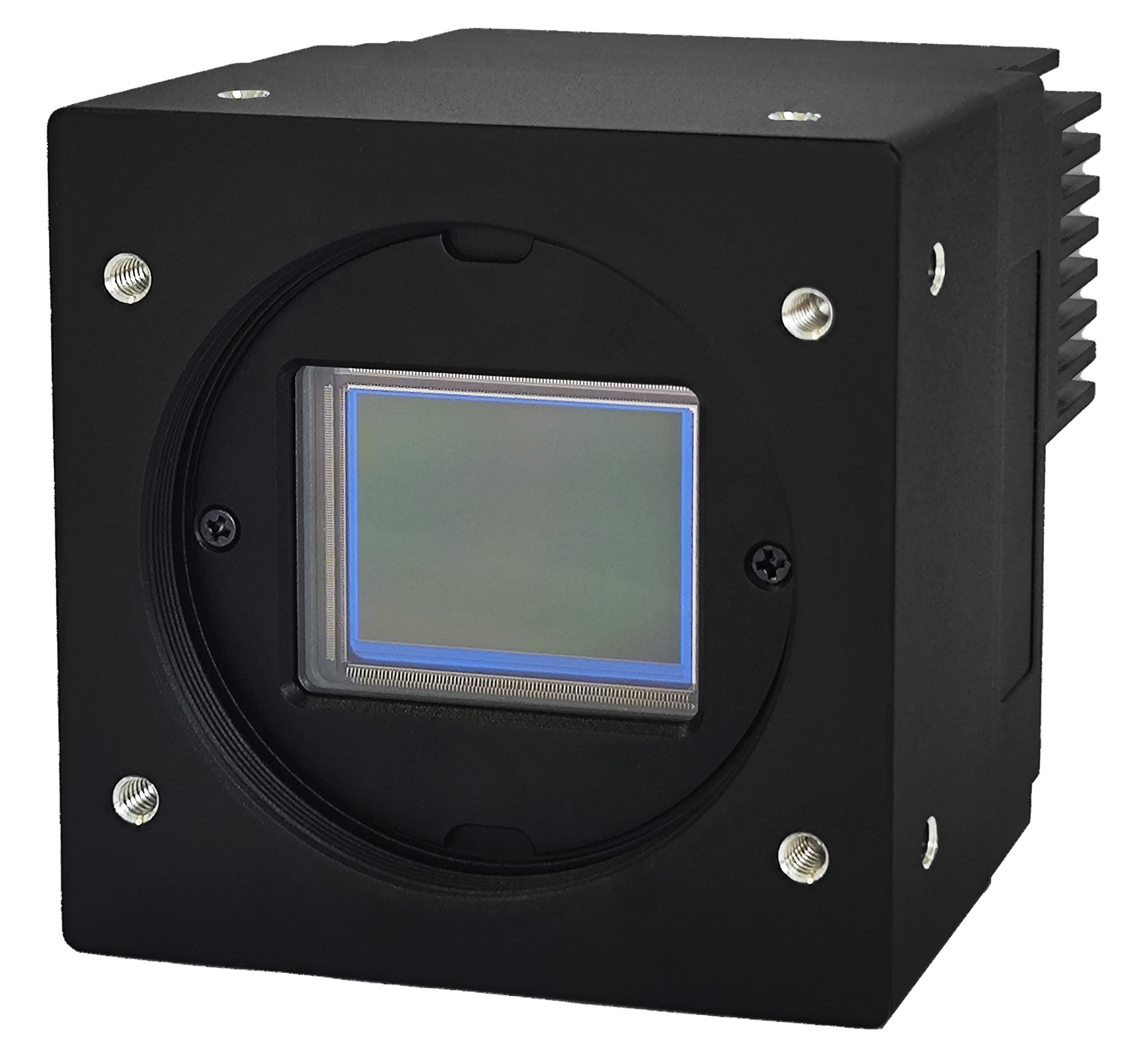

| Model | TS65MCXP-31M/C |
| Sensor Type | GMAX3265 |
| Image Mode | Mono / Color |
| Optical Size | 37.36 mm |
| Resolution | 9344 * 7000 |
| Pixel Size | 3.2μm * 3.2μm |
| Max Frame Rate | 31.594fps@8bit, 28.438fps@10bit, 23.699fps@12bit |
| Bit Depth | 8/10/12 bit |
| Dynamic Range | ≥62 dB |
| Data Rate | 2325 MB/s |
| Trigger Mode | Free Run / External Trigger / External PWM |
| Trigger Source | External IO / CXP Trigger / Software Trigger |
| Exposure Control | Timed / Pulse Width Control |
| Exposure Time | 14μs~10s (Step: 1μs) |
| Analog Gain | 0-64dB |
| Digital Gain | 0.1-8.0× |
| Lens Mount | M58 × 0.75 |
| Data Interface | CoaXPress |

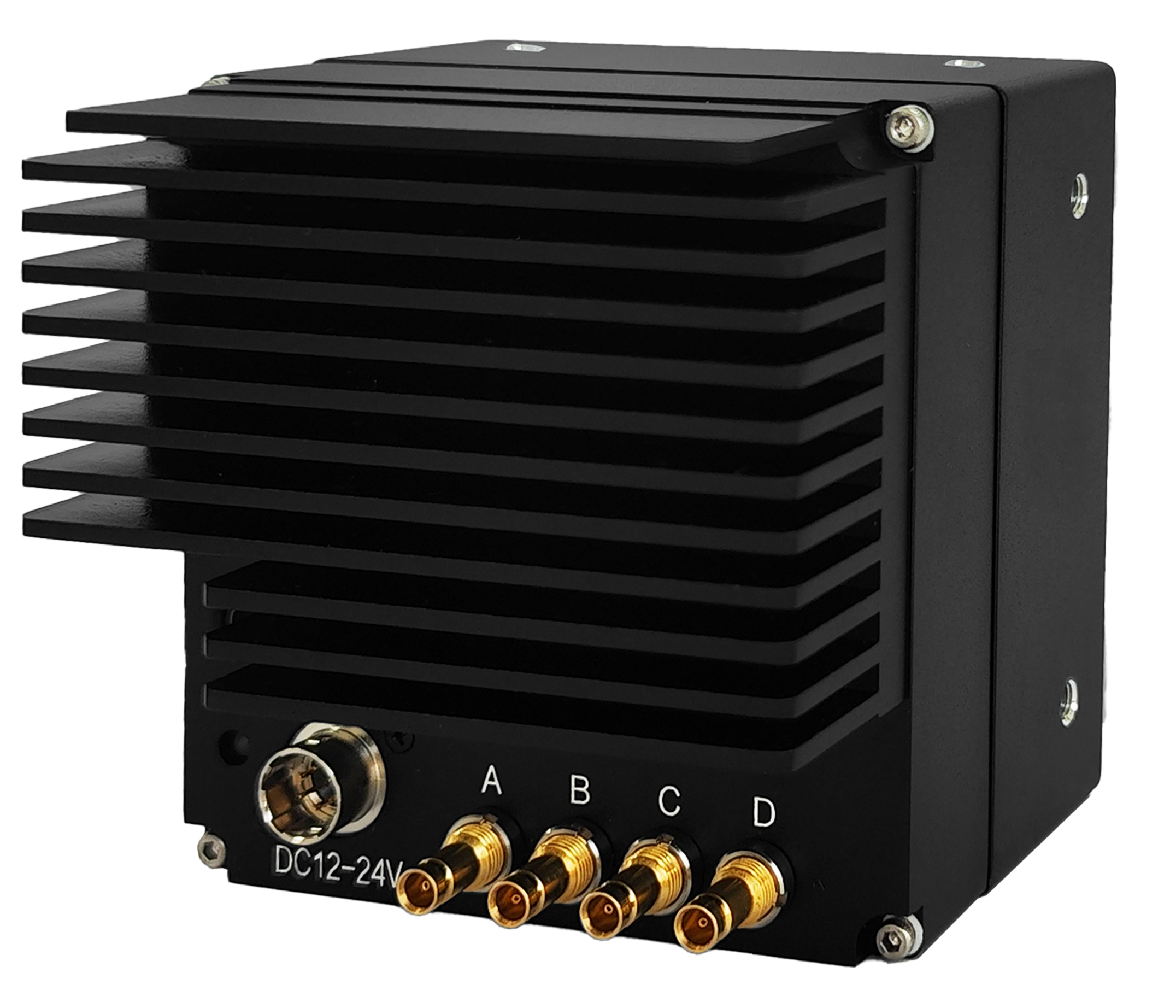

| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC 12~24V(±10%) 1.5A or PoCXP |
| Power Consumption | 9.9W (DC) or 10.5W (PoCXP) |
| Dimensions | 75.0mm × 75.0mm × 69.27mm |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
