Standards

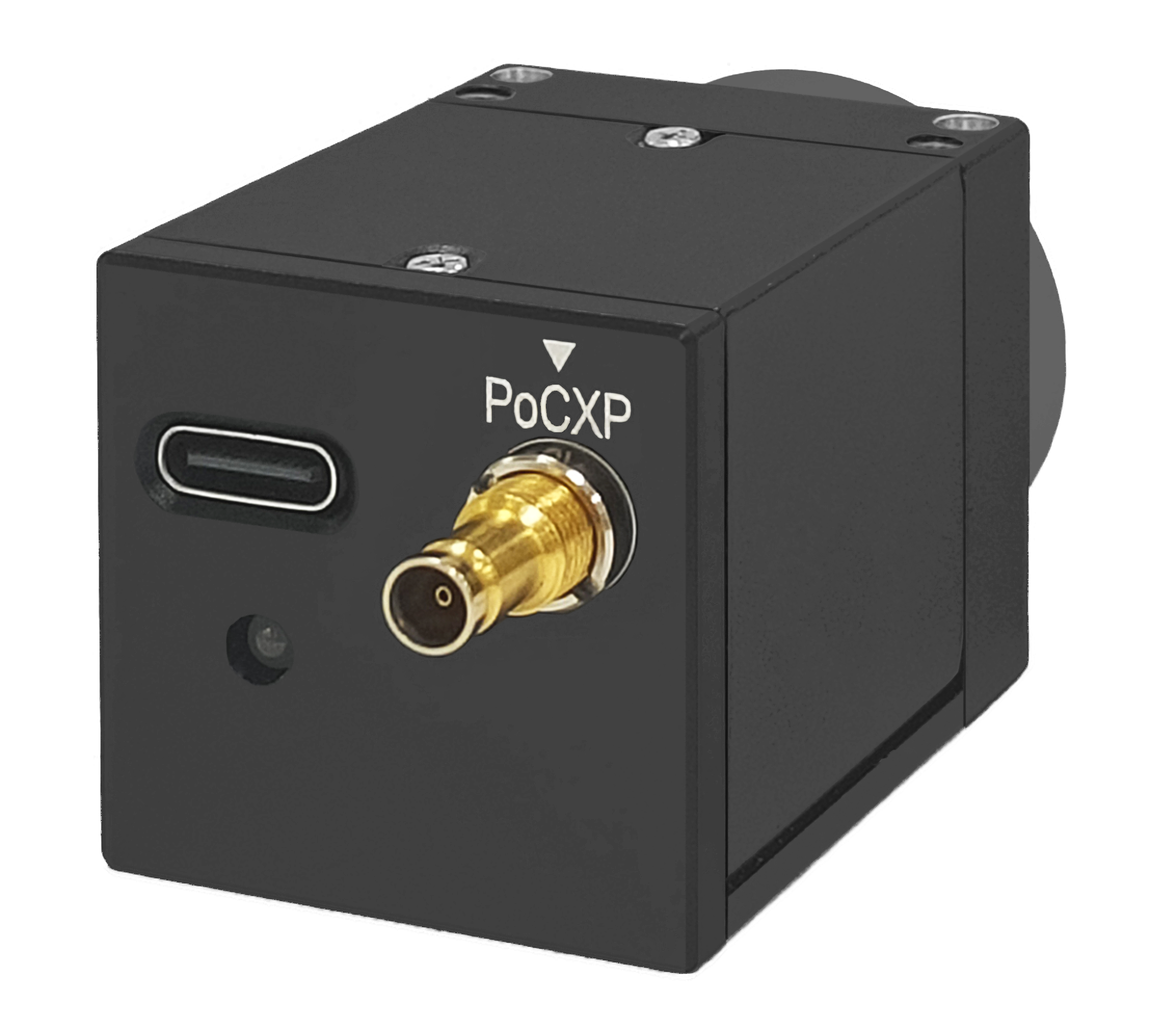

| Model | TS5M3CXP-105M/C |
| Sensor | Global Shutter CMOS |
| Image Mode | Mono / Color |
| Optical Size | 15.86 mm |
| Resolution | 2592 * 2048 |
| Pixel Size | 4.8μm * 4.8μm |
| Max Frame Rate | 105fps@8bit，87fps@10bit |
| Bit Depth | 8/10 bit |
| Dynamic Range | ≥55 dB |
| Data rate | 550 MB/s |
| Trigger Mode | Free-Run / External Pulse / External PWM |
| Trigger Source | CXP Trigger |
| Exposure Control | Pulse Width Control / Timed |
| Exposure Time | 5μs-50s(Step:1μs) |
| Analog Gain | 1/1.8x |
| Digital Gain | 0.01-8.00x |
| Lens Mount | C Mount |
| Data Interface | CoaXPress |
| Power Supply | PoCXP |
| Power Consumption | 3.4 W |
| Dimensions | 29.0mm x 29.0mm x 58.27mm |
| Operating Temperature | 0-50℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 58.1g |
