Standards

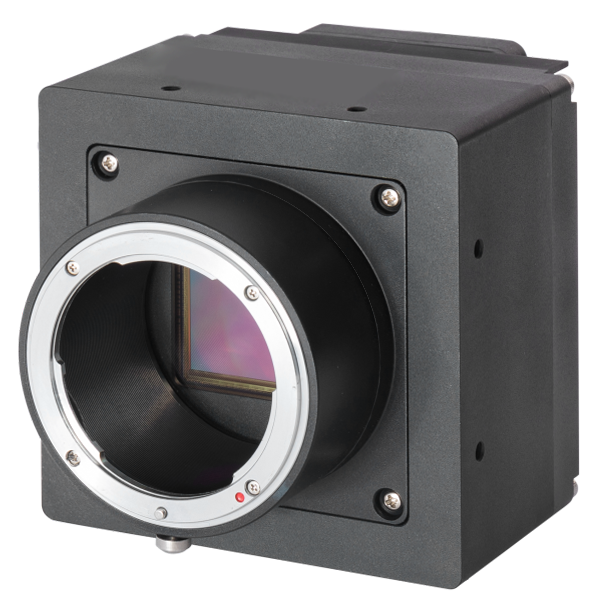

| Model | TS50M2CL-15M |
| Sensor Type | Global Shutter CMOS |
| Image Mode | Mono |
| Optical Size | 45.72 mm |
| Resolution | 7920 * 6004 |
| Pixel Size | 4.6μm * 4.6μm |
| Max Frame Rate | 15 fps |
| Bit Depth | 8/10/12 bit |
| Dynamic Range | ≥64 dB |
| Data Rate | 800 MB/s |
| Trigger Mode | Free Run / External Trigger |
| Trigger Source | Camera Link CC / External IO |
| Exposure Control | Program / Pulse Width |
| Exposure Time | 80μs-50s(Step:1μs) |
| Analog Gain | 1/2/4x |
| Digital Gain | 0.01-8.00x |
| Lens Mount | F Mount |

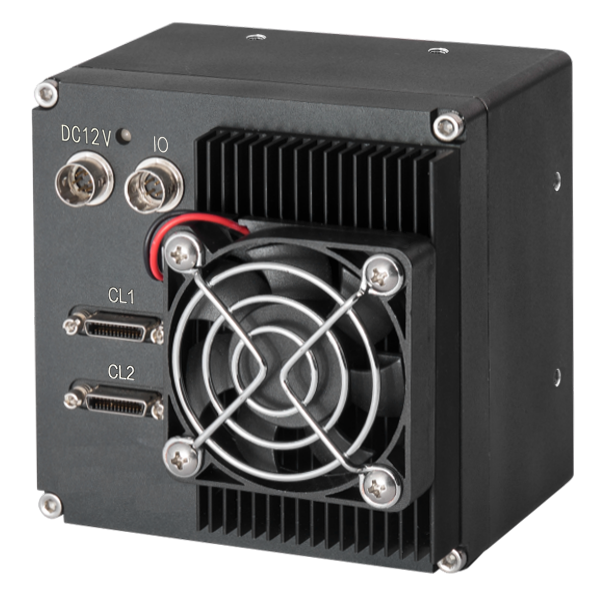

| Data Interface | Camera Link |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC 12V±10% 1.0A |
| Power Consumption | 6.8 W |
| Dimensions | 90.0mm(W) x 90.0mm(H) x 97.7mm(D) |
| Operating Temperature | 0-50℃ |
| Storage Temperature | -20-75℃ |
