Standards

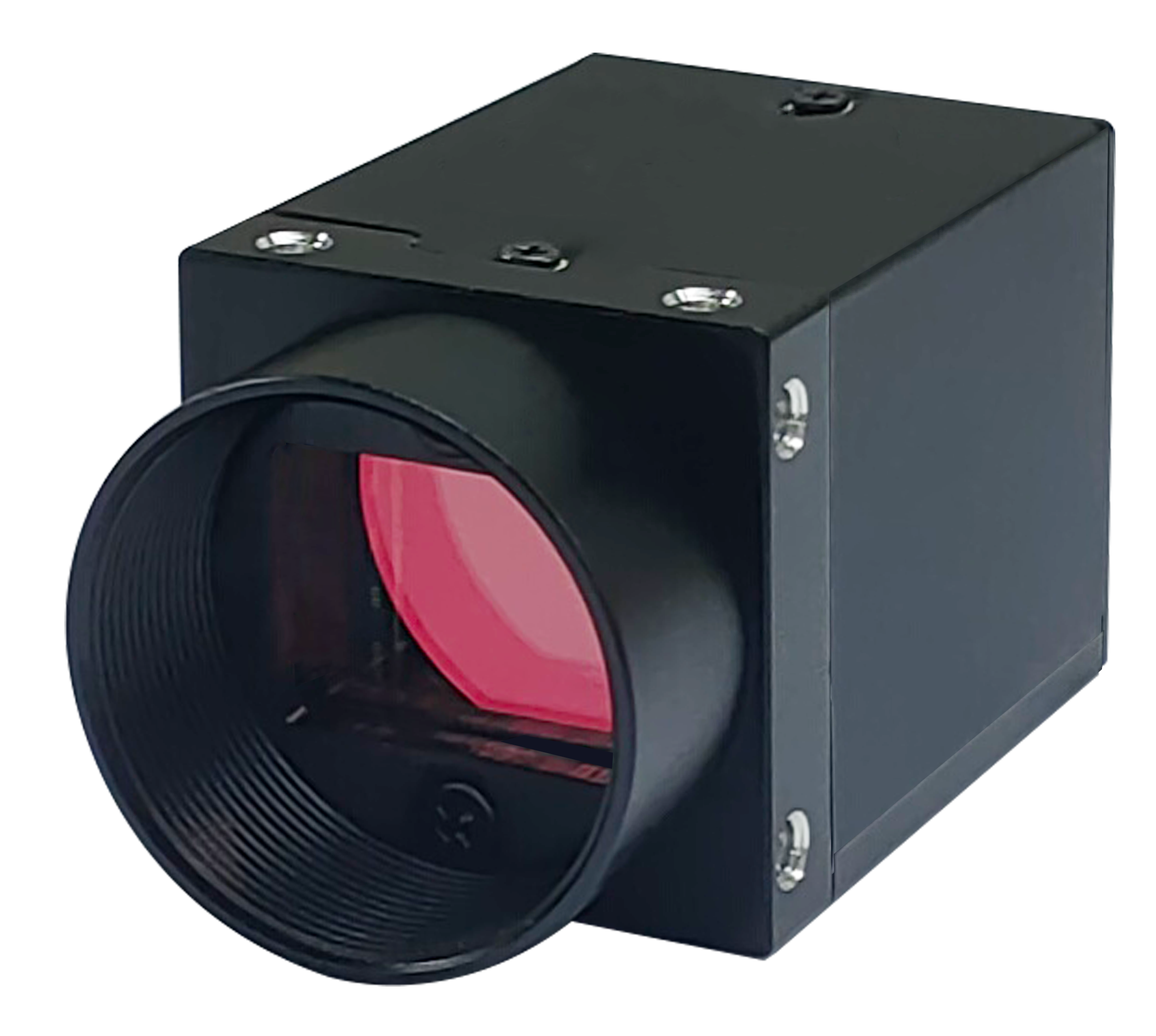

| Model | TS4MCL-180M/C |
| Sensor | Global Shutter CMOS |
| Image Mode | Mono / Color |
| Optical Size | 15.93 mm |
| Resolution | 2048 * 2048 |
| Pixel Size | 5.5μm * 5.5μm |
| Max Frame Rate | 179.67fps@10Tap，149.72fps@8Tap，45.24fps@4Tap， 22.65fps@2Tap |
| Bit Depth | 8/10/12bit |
| Dynamic Range | ≥54.6 dB |
| Data Rate | 753MB/s |
| Trigger Mode | Free-Run / External Pulse / External PWM |
| Trigger Source | External IO / Camera Link CC |
| Exposure Control | Timed / Pulse Width Control |
| Exposure Time | 11.61μs-5s(Step:0.01μs) |
| Analog Gain | x1/x1.2/x1.4/x1.6/x2/x2.4/x2.8/x3.2 |
| Digital Gain | 0.05-8.00x |
| Lens Mount | C Mount |
| Data Interface | Camera Link |
| Power Connector | 4-Pin M5(Male) |
| Power Supply | DC12V±10% 0.5A |
| Power Consumption | 3.6 W |
| Dimensions | 29.0mm x 29.0mm x 56.3mm |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 59.1g |
