Standards

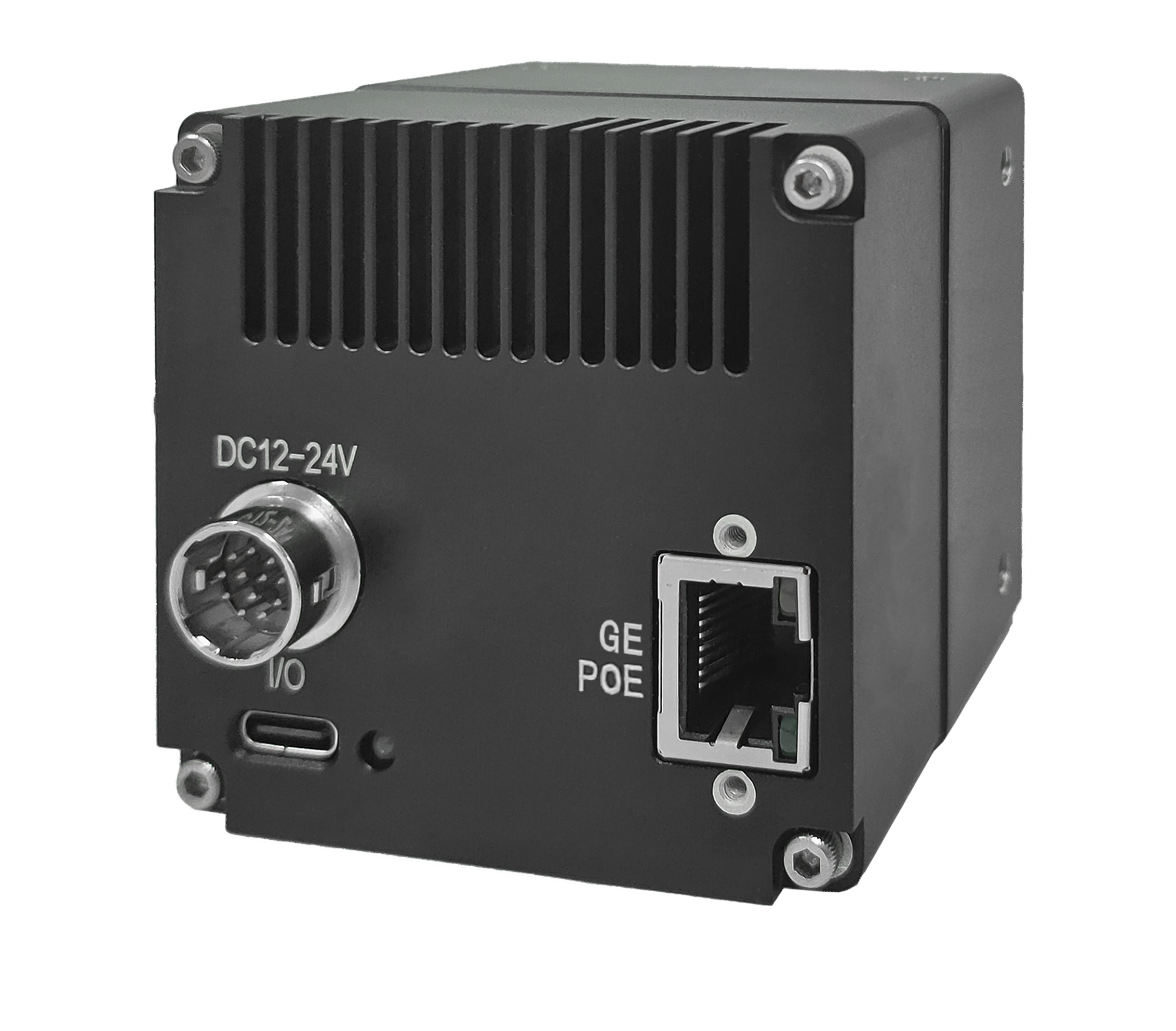

| Model | TS31MSGV-6M/C |
| Sensor Type | IMX342 |
| Image Mode | Mono / Color |
| Optical Size | 27.88 mm |
| Resolution | 6464 * 4852 |
| Pixel Size | 3.45μm * 3.45μm |
| Max Frame Rate | 3.9fps(6.2fps with SAccel™) |
| Data Format | 8/10/10p/12/12p |
| Dynamic Range | ≥70.7 dB |
| Data Rate | 188MB/s |
| Trigger Mode | Free Run / External Pulse / External PWM |
| Trigger Source | Software Trigger / External IO |
| Exposure Control | Timed / Pulse Width Control |
| Exposure Time | 31μs-10s(Step:1μs) |
| Analog Gain | 0-24dB |
| Digital Gain | 0.004-8.000× |
| Lens Mount | M58 / M42 / F Mount |
| Data Interface | GigE Vision |
| Power Connector | HR10A-10R-12PB(71)(Male) |
| Power Supply | DC12-24V(±10%) 1.0A or PoE |
| Power Consumption | 5.5W (DC) / 6.1W (PoE) |
| Dimensions |
F Mount: 62mm × 62mm × 89.6mm M42 Mount: 62mm × 62mm × 55.1mm M58 Mount: 62mm × 62mm × 54.6mm |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 339.1g |
