Standards

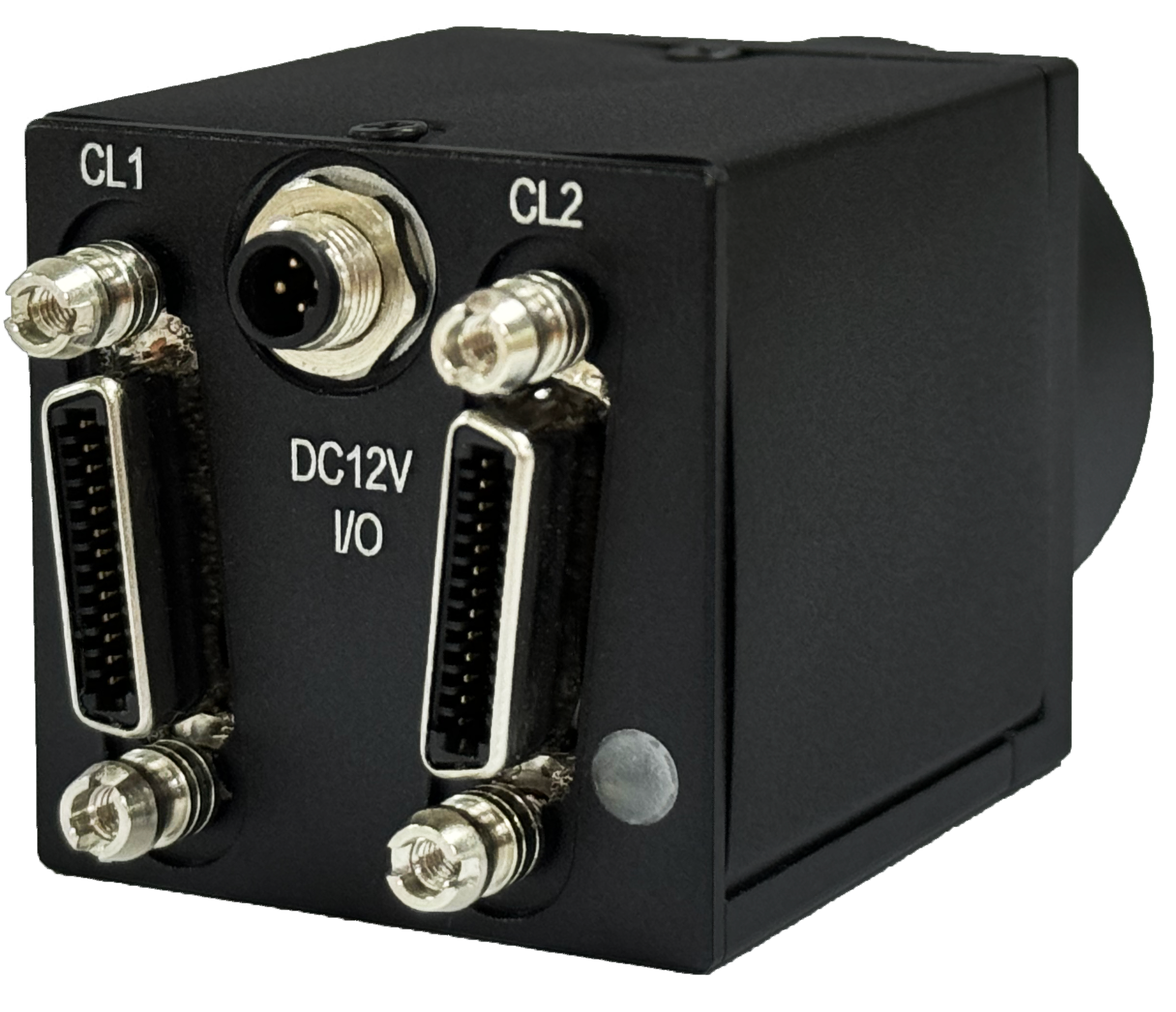

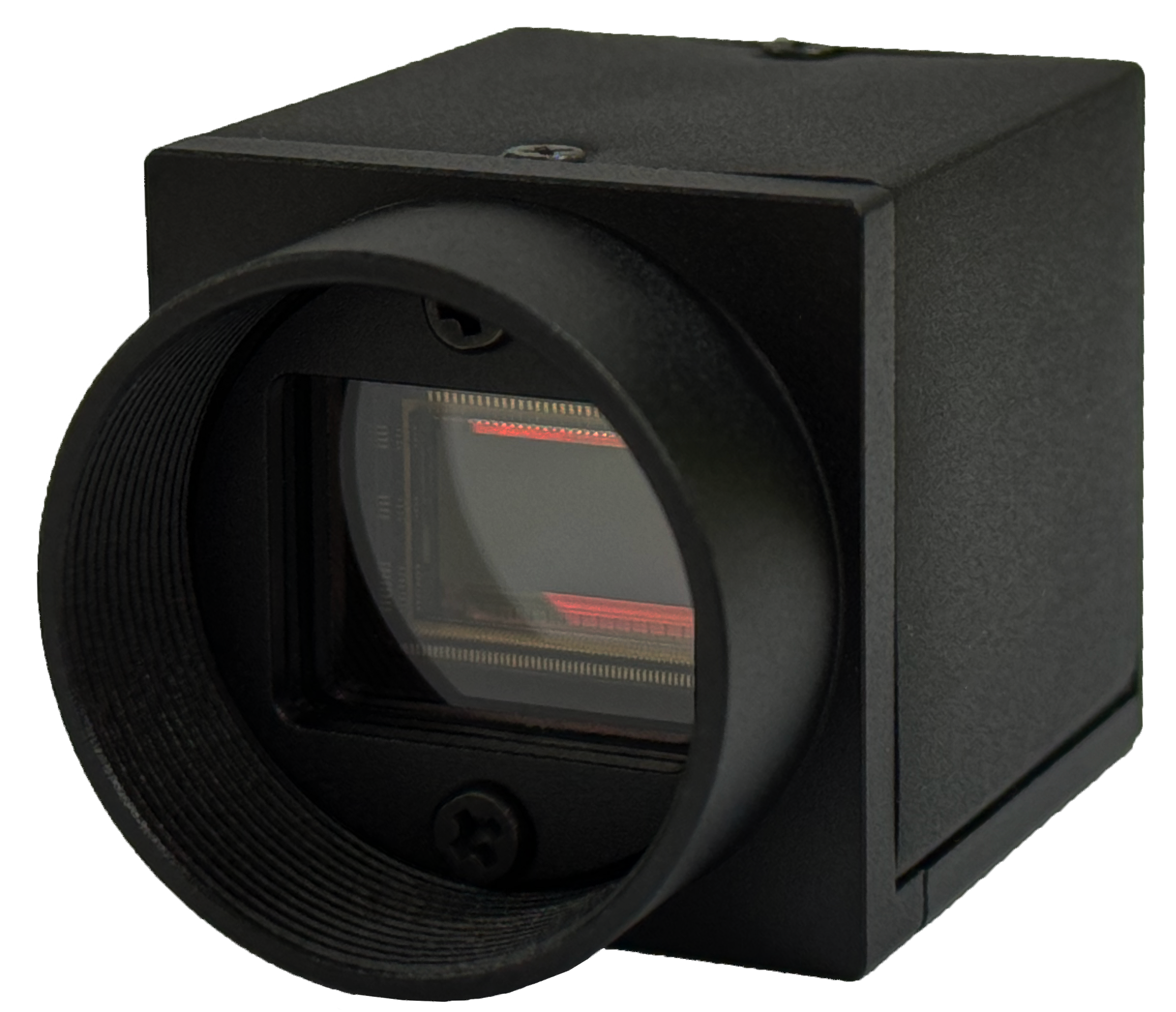

| Model | TS2MCL-340M/C |
| Sensor | Global Shutter CMOS |
| Image Mode | Color / Mono |
| Optical Size | 12.75 mm |
| Resolution | 2048 * 1088 |
| Pixel Size | 5.5μm * 5.5μm |
| Max Frame Rate | 337.72fps@10Tap, 281.45fps@8Tap, 83.69fps@4Tap, 41.90fps@2Tap |
| Bit Depth | 8/10/12 bit |
| Dynamic Range | ≥54.6 dB |
| Data Rate | 753 MB/s |
| Trigger Mode | Free-Run / External Pulse / External PWM |
| Trigger Source | Camera Link Signal / External I/O Signal |
| Exposure Control | Timed / Pulse Width Control |
| Exposure Time | 5.81μs-5s(Step:0.01μs) |
| Analog Gain | 1/1.2/1.4/1.6/2/2.4/2.8/3.2x |
| Digital Gain | 0.05-8.00x |
| Lens Mount | C Mount |
| Data Interface | Camera Link |
| Power Connector | 4-Pin M5(Male) |
| Power Supply | DC12V±10% 0.5A |
| Power Consumption | 3.6 W |
| Dimensions | 29.0mm(W) x 29.0mm(H) x 56.3mm(D) |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 58.3g |
