Standards

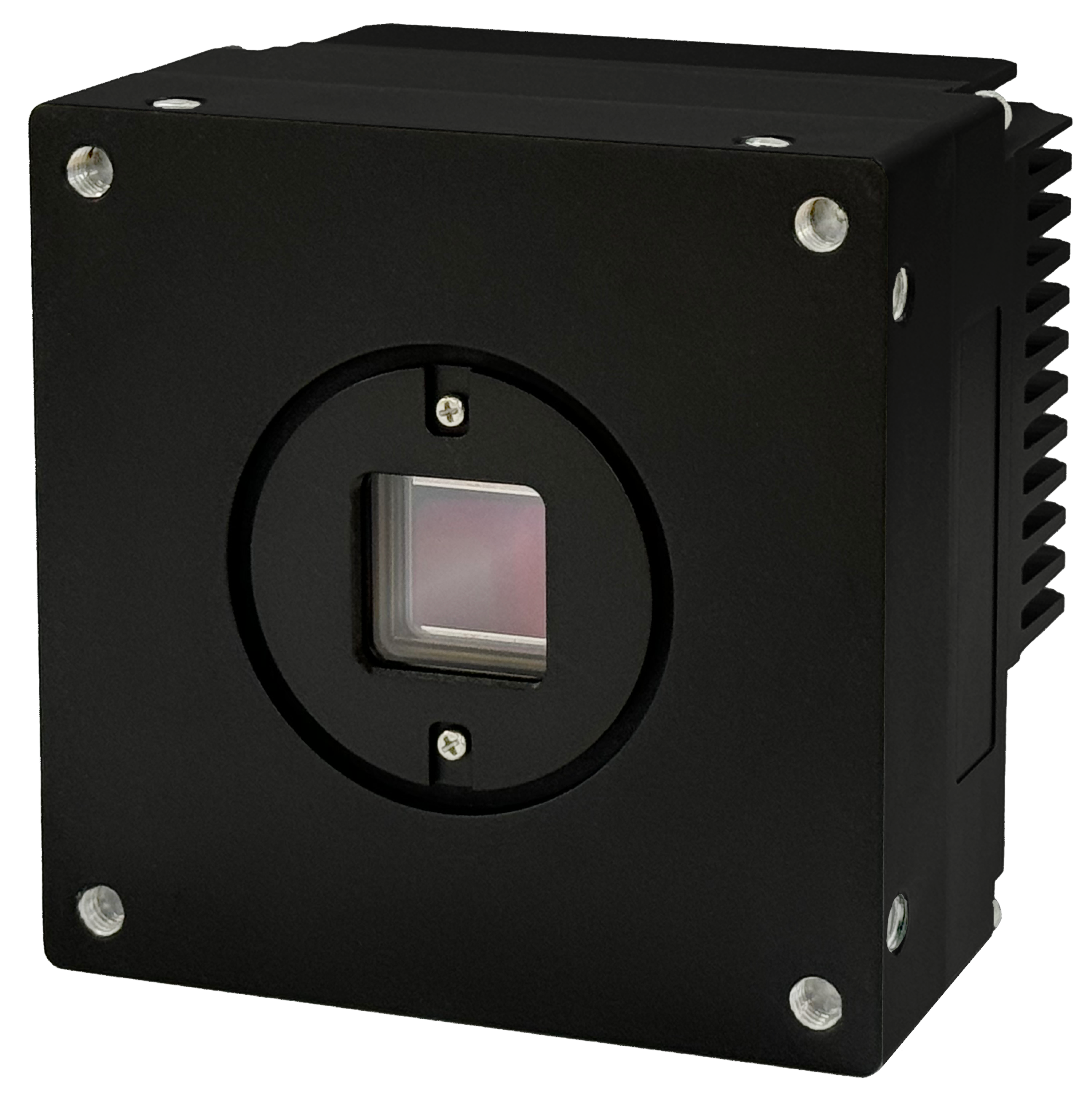

| Model | TS25MCXP10-146M/C |
| Sensor Type | GMAX0505, Global Shutter CMOS |
| Image Mode | Mono / Color |
| Optical Size | 18.10 mm |
| Resolution | 5120 * 5120 |
| Pixel Size | 2.5μm * 2.5μm |
| Max Frame Rate | 146.84fps@8bit, 118.18fps@10bit |
| Bit Depth | 8/10 bit |
| Dynamic Range | ≥56.2 dB |
| Data Rate | 3872MB/s |
| Trigger Mode | Free Run / External Pulse / External PWM |
| Trigger Source | External IO / CXP Trigger |
| Exposure Control | Timed / Pulse Width Control |
| Exposure Time | 3μs - 60s(step:1μs) |
| Analog Gain | 1 / 1.5 / 2 / 2.5× |
| Digital Gain | 0.1-8.0× |
| Lens Mount | M42 / M58 / C Mount |
| Data Interface | CoaXPress10 |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC12-24V(±10%) 2.0A or PoCXP |
| Power Consumption | 11.7W (DC) or 11.8W (PoCXP) |
| Dimensions | 80.0mm(W) × 80.0mm(H) × 62.9mm(D) |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 632.6g |
