Standards

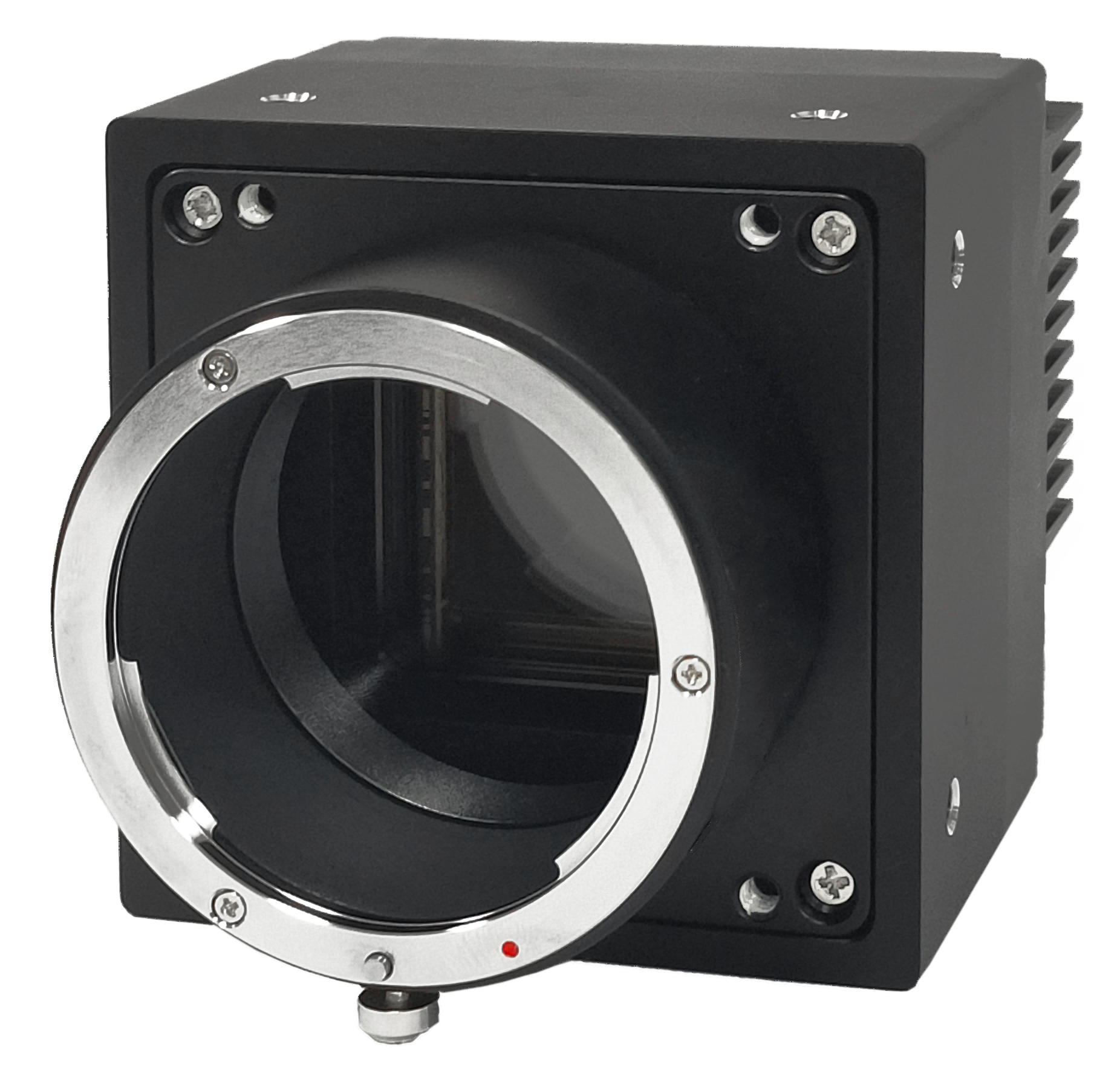

| Model | TS25MCXP-85M |
| Sensor Type | Global Shutter CMOS |
| Image Mode | Mono |
| Optical Size | 32.58mm |
| Resolution | 5120 * 5120 |
| Pixel Size | 4.5μm * 4.5μm |
| Max Frame Rate | 85.10fps@8bit, 70.23fps@10bit |
| Bit Depth | 8/10 bit |
| Dynamic Range | ≥55 dB |
| Date rate | 2300 MB/s |
| Trigger Mode | Free Run / External Pulse / External PWM |
| Trigger Source | CXP Signal / External I/O Signal / Software Trigger Signal |
| Exposure Control | Timed / Pulse Width Control |
| Exposure Time | 40μs-10s(Step:1μs ) |
| Analog Gain | 1 / 1.26 / 1.87 / 3.17× |
| Digital Gain | 0.001-8.000× |
| Lens Mount | M58 / F Mount |

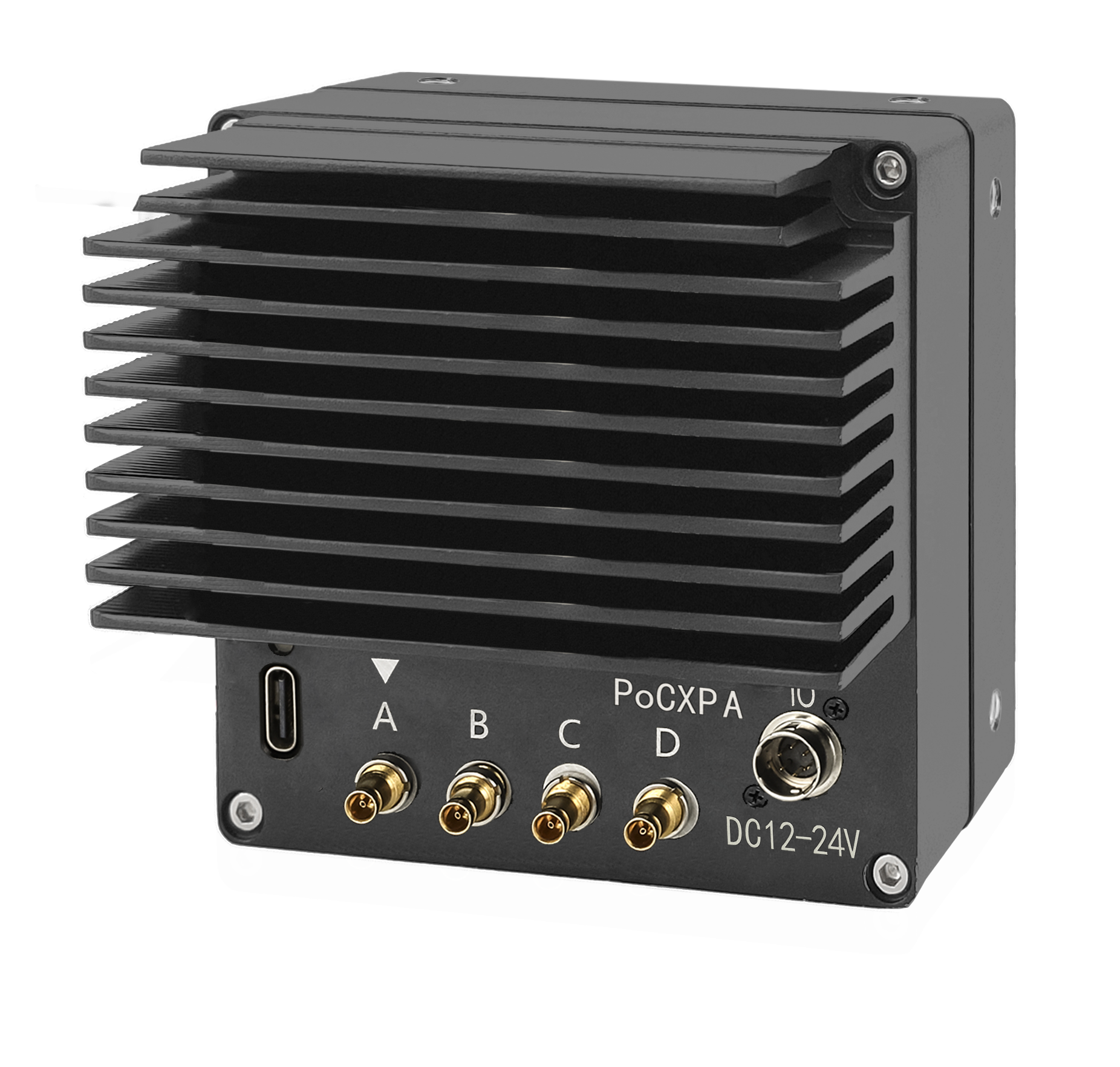

| Data Interface | CoaXPress |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC12-24V 1.5A or PoCXP |
| Power Consumption | 9.5W(DC) or 10.0W(PoCXP) |
| Dimensions |
M58 Mount: 75mm × 75mm × 55.9mm F Mount: 75mm × 75mm × 90.9mm |
| Operating Temperature | 0-50℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 703.6g |
