Standards

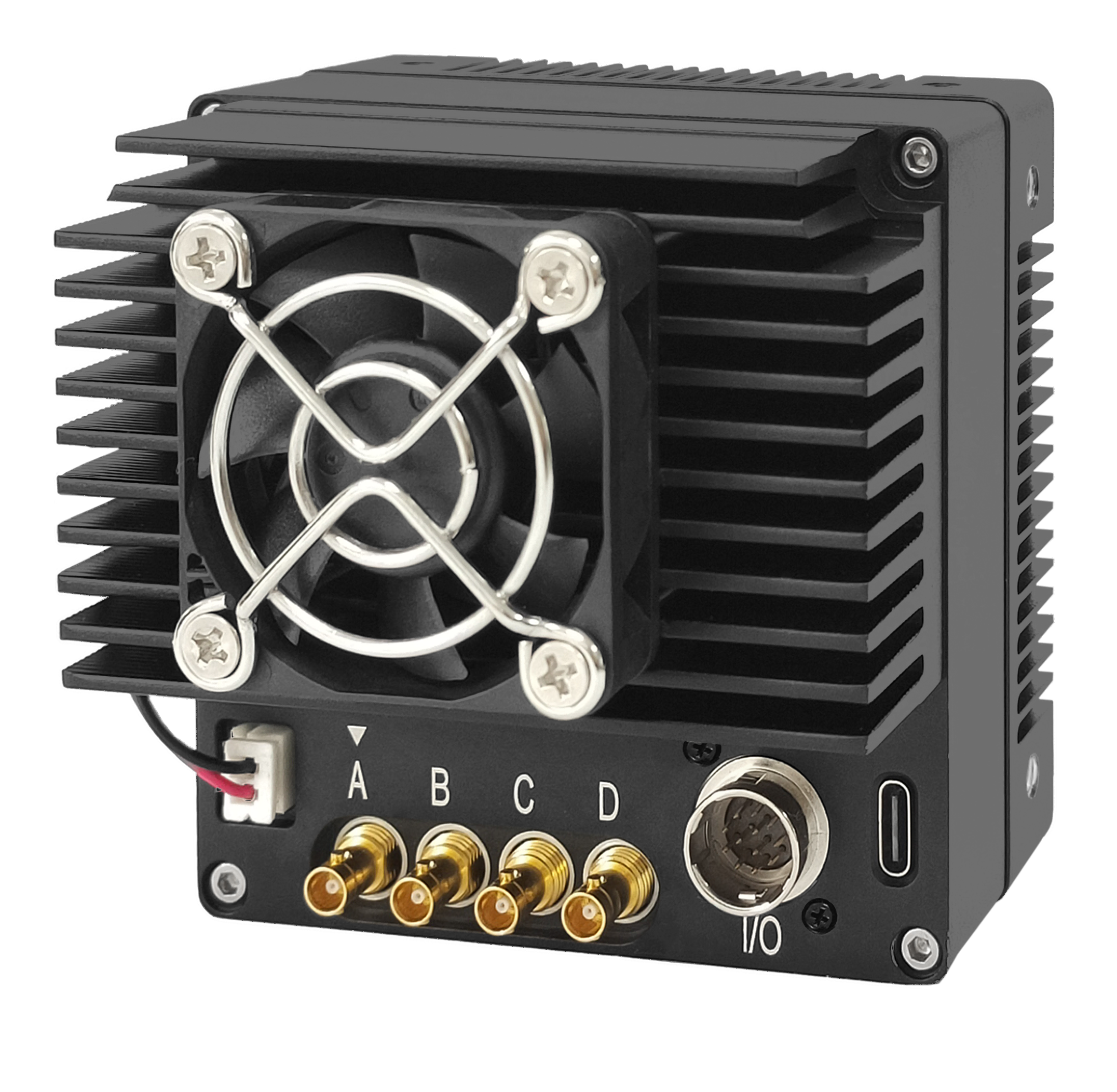

| Model | TS21MCXP12-230M/C |
| Sensor Type | Global Shutter CMOS |
| Image Mode | Color / Mono |
| Optical Size | 29.50 mm |
| Resolution | 5120 * 4096 |
| Pixel Size | 4.5μm * 4.5μm |
| Max Frame Rate | 231.1fps@8bit, 185.1fps@10bit, 154.4fps@12bit |
| Bit Depth | 8/10/12 bit |
| Dynamic Range | ≥65.7 dB |
| Data Rate | 4857MB/s |
| Trigger Mode | Free Run / External Trigger / External PWM |
| Trigger Source | External IO / CXP Trigger |
| Exposure Control | Timed / Pulse Width Control |
| Exposure Time | 1μs-10s(Step:1μs) |
| Analog Gain | 1/2/4x |
| Digital Gain | 0.001-8.000x |
| Lens Mount | M42 * 1 / M58 * 0.75 |
| Data Interface | CoaXPress12 |
| Power Connector | HR10A-10R-12PB(71) (Male) |
| Power Supply | DC12-24V(±10%) 2.5A or PoCXP |
| Power Consumption | 17.4W(DC) or 17.6W(PoCXP) |
| Dimensions | 80.0mm(W) x 80.0mm(H) x 62.3mm(D) |
| Operating Temperature | 0-65℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 628.1g |
