Standards
| Model | TS12MCXP-190M/C |
| Sensor Type | Global Shutter CMOS |
| Image Mode | Color / Mono |
| Optical Size | 28.16 mm |
| Resolution | 4096 * 3072 |
| Pixel Size | 5.5μm * 5.5μm |
| Max Frame Rate | 190.9fps@8bit，154.3fps@10bit |
| Bit Depth | 8/10 bit |
| Dynamic Range | ≥54 dB |
| Data Rate | 2430 MB/s |
| Trigger Mode | Free-Run / External Pulse / External PWM |
| Trigger Source | External IO / CXP Trigger |
| Exposure Control | Timed / Pulse Width Control |
| Exposure Time | 15μs-1s(Step:3μs) |
| Analog Gain | 1/2/3/4x |
| Digital Gain | 0.01-8.00× |

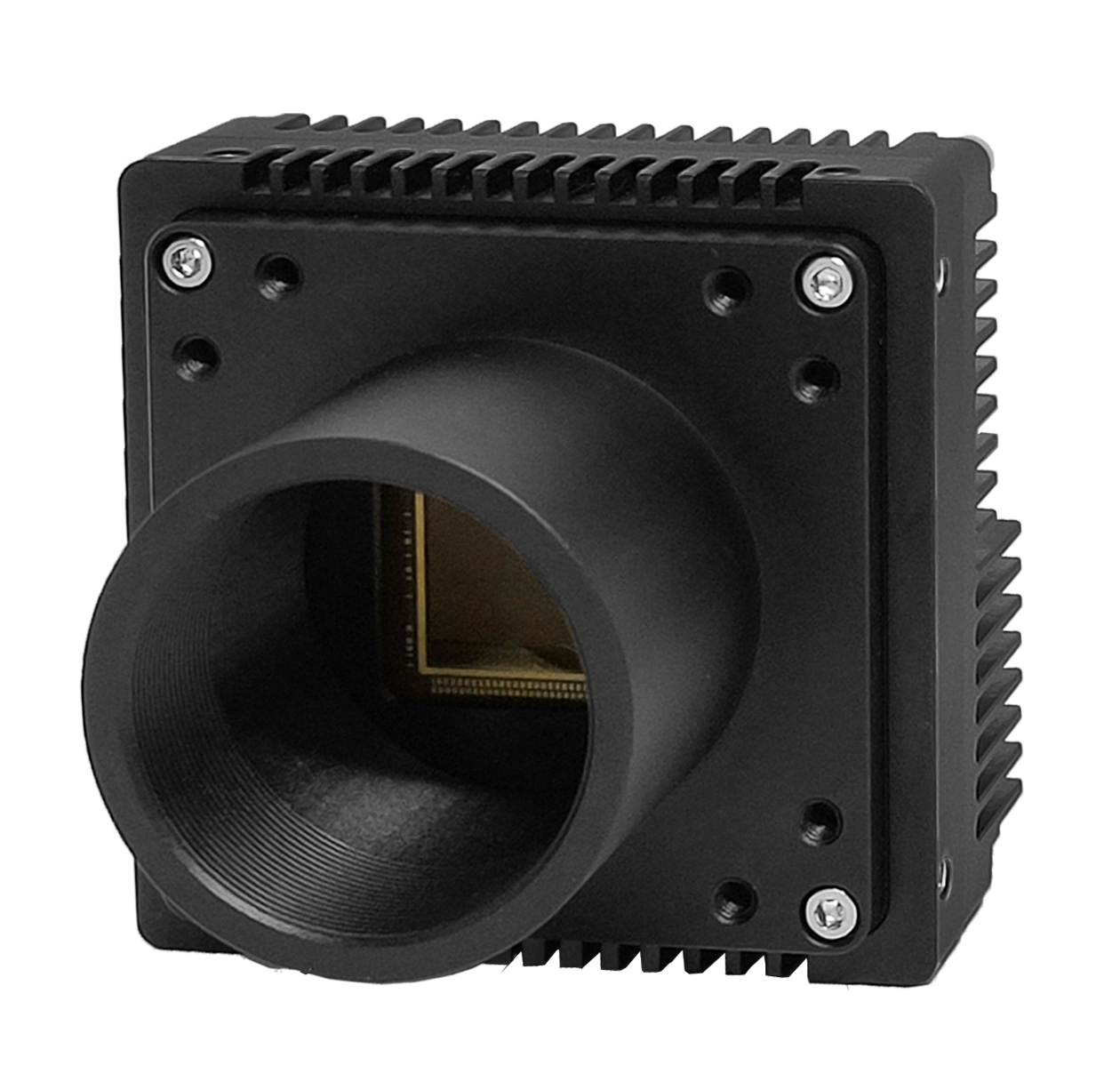

| Lens Mount | M42 * 1 / F Mount |

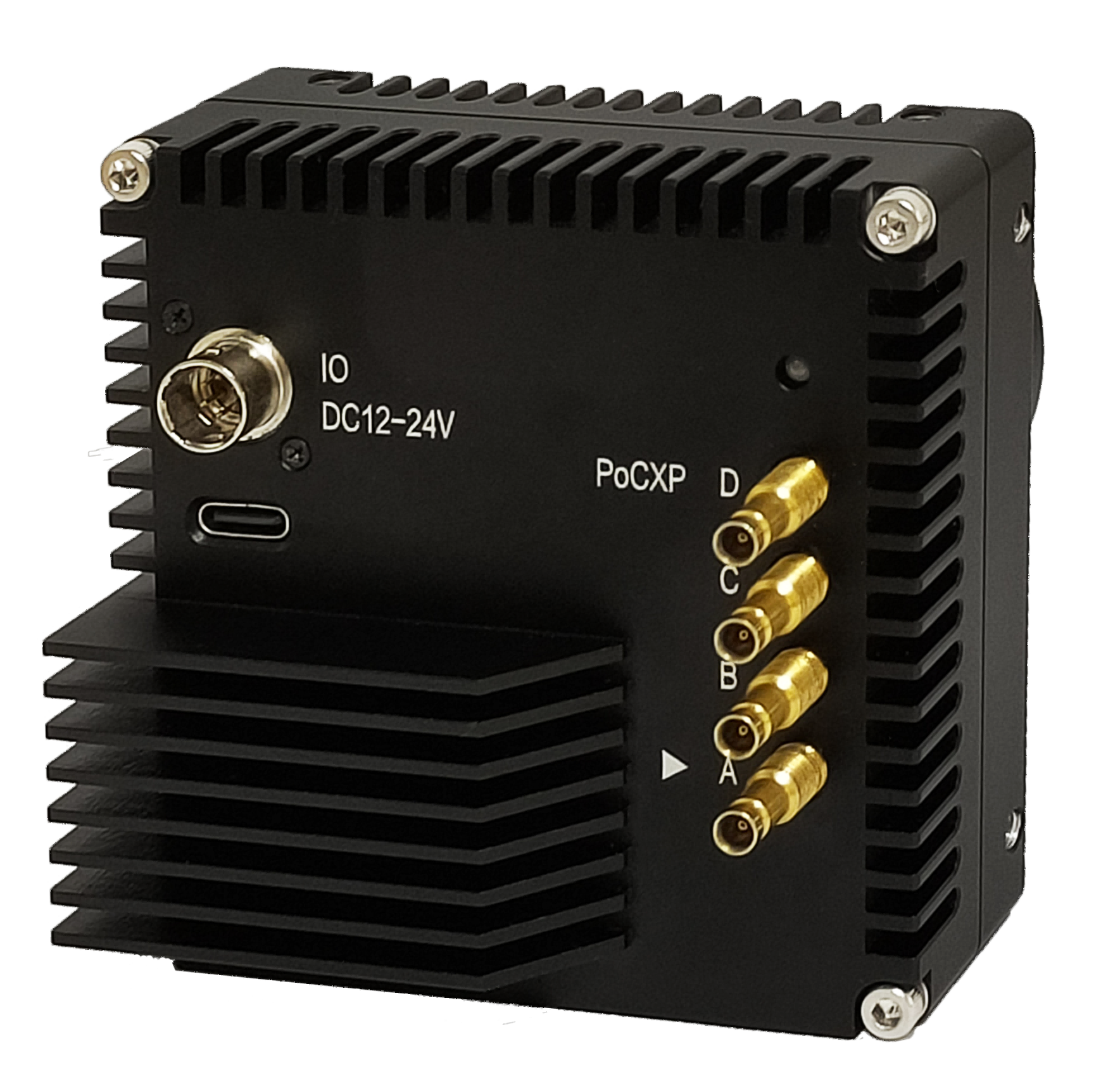

| Data Interface | CoaXPress |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC12-24V(±10%) 1.5A or PoCXP |
| Power Consumption | 9.6W (DC) or 7.3W (PoCXP) |
| Dimensions | 80.0mm(W) x 80.0mm(H) x 36.9mm(D)(Without adapter) |
| Operating Temperature | 0-50℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 487.3g |
