Standards
| Model | TS12MCL-65M/C |
| Sensor Type | Global Shutter CMOS |
| Image Mode | Color / Mono |
| Optical Size | 28.16 mm |
| Resolution | 4096 * 3072 |
| Pixel Size | 5.5μm * 5.5μm |
| Max Frame Rate | 65.36fps@10Tap, 52.56fps@8Tap, 26.50fps@4Tap, 13.31fps@2Tap |
| Bit Depth | 8/10 bit |
| Dynamic Range | ≥54dB |
| Data Rate | 822MB/s |
| Trigger Mode | Free Run / External Pulse / External PWM |
| Trigger Source | External IO / Camera Link CC1 |
| Exposure Control | Timed / Pulse Width Control |
| Exposure Time | 26µs-1s (step: 1µs) |
| Analog Gain | 1/2/3/4× |
| Digital Gain | 0.01-8.00 |
| Lens Mount | M42 * 1 / M58 * 0.75 / F Mount |

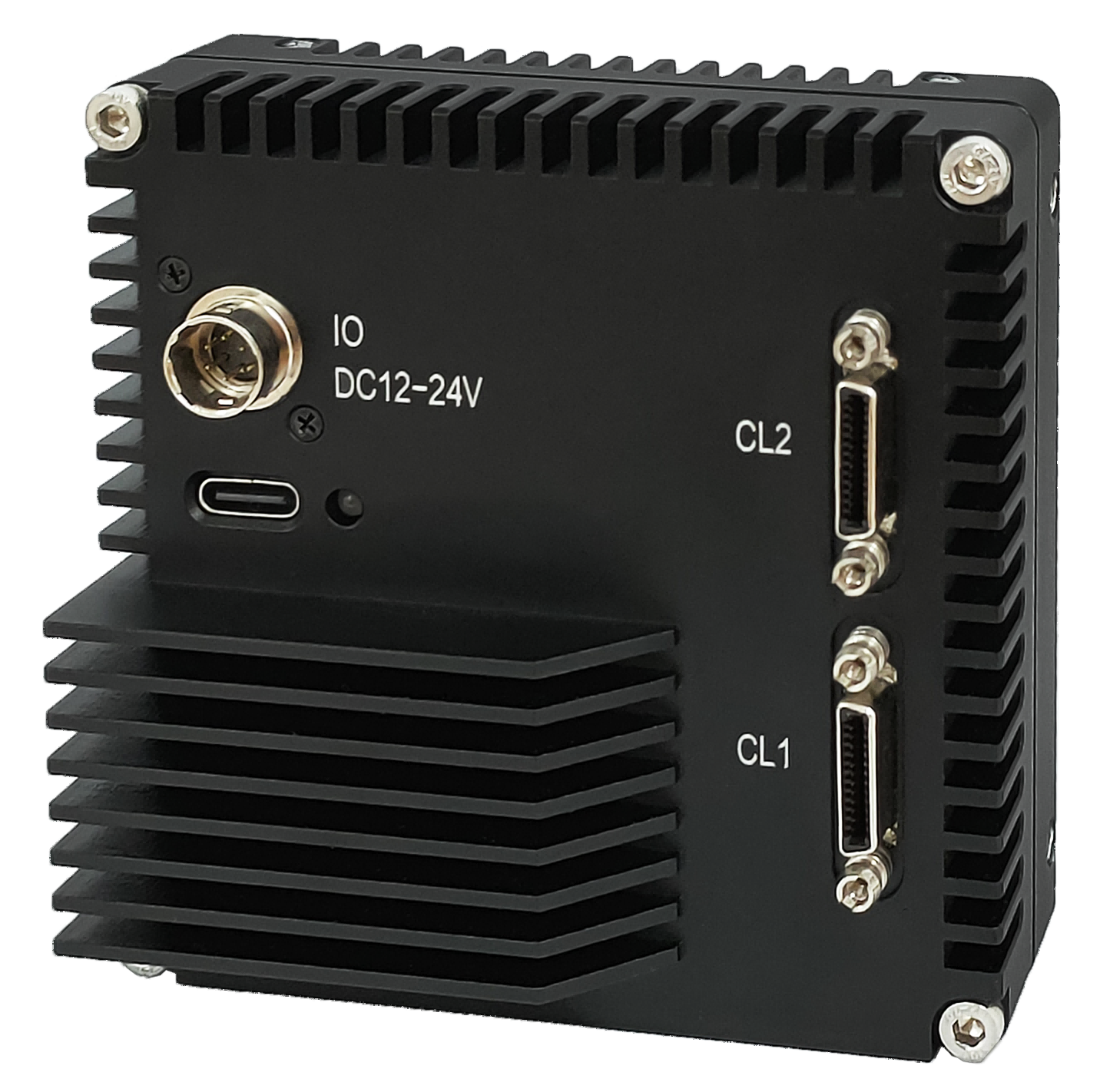

| Data Interface | Camera Link |
| Power interface | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC12-24V(±10%) 1A |
| Power Consumption | 6.9 W |
| Dimensions | 80.0mm × 80.0mm × 40.2mm |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 458.5g |
