Standards

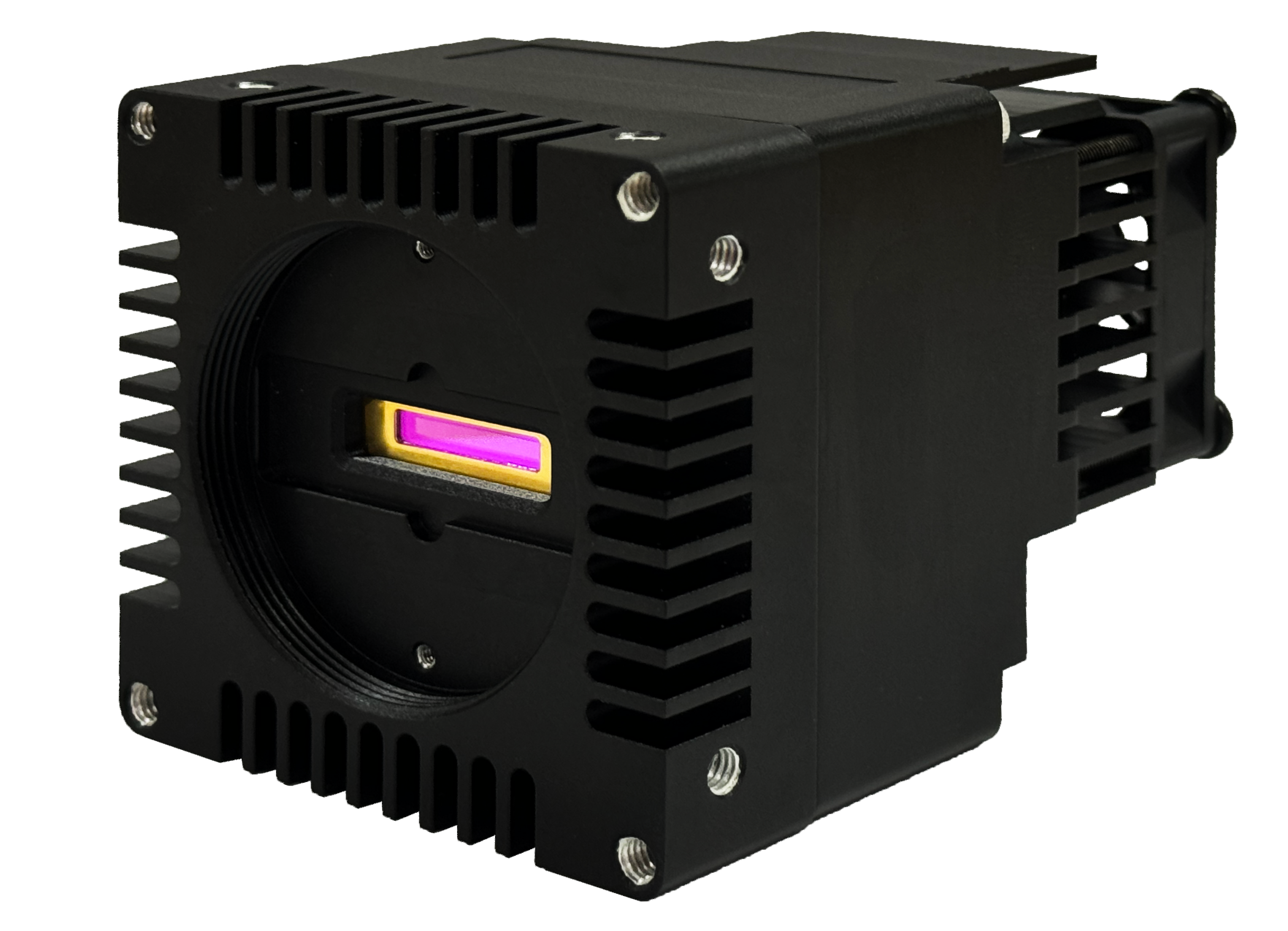

| Model | TPL512GV-30KS2 |
| Sensor | Global Shutter InGaAs |
| Spectral Range | 950-1700 nm |
| Image Mode | Mono |
| Optical Size | 12.8 mm |
| Resolution | 512 * 2 |
| Pixel Size | 25μm * 25μm |
| Max Line Rate | 29.4kHz |
| Bit Depth | 8/10/10p/12/12p/14 bit |
| Dynamic Range | ≥62.2dB |
| Data Rate | 30 MB/s |
| Trigger Mode | Free Run / Line Trigger Control / Frame Trigger Control |
| Exposure Control | Pulse Width Control / Timed |
| Exposure Time | 0.064μs~19982μs(Step: 0.1μs) |
| Analog Gain | 1/2/5/11/17/25/50/100x |
| Digital Gain | 0.1-8.00x |

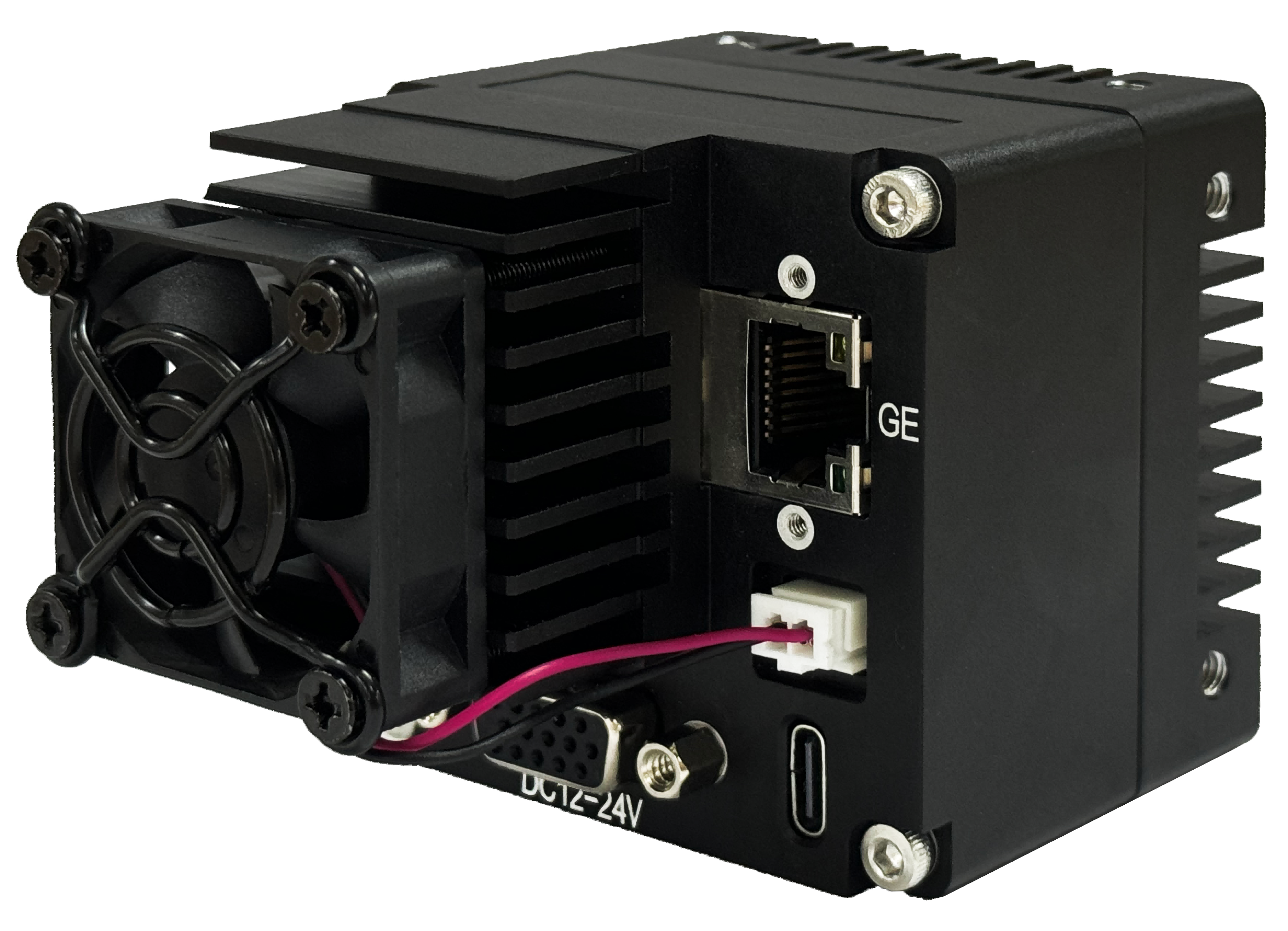

| Data Interface | GigE Vision |
| Lens Mount | M42 * 1 |
| Power Connector | HD15(Female) |
| Power Supply | DC12-24V (±10%) 1.0A |
| Power Dissipation |
TEC Off: 4.0W TEC On: 5.5W |
| Cooling Mode |
TEC Cooling Fan Cooling |
| TEC Cooling | About 22℃ below ambient temperature |
| Dimensions | 60.0mm(W) x 60.0mm(H) x 73.0mm(D) |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 288.0g |
