Standards

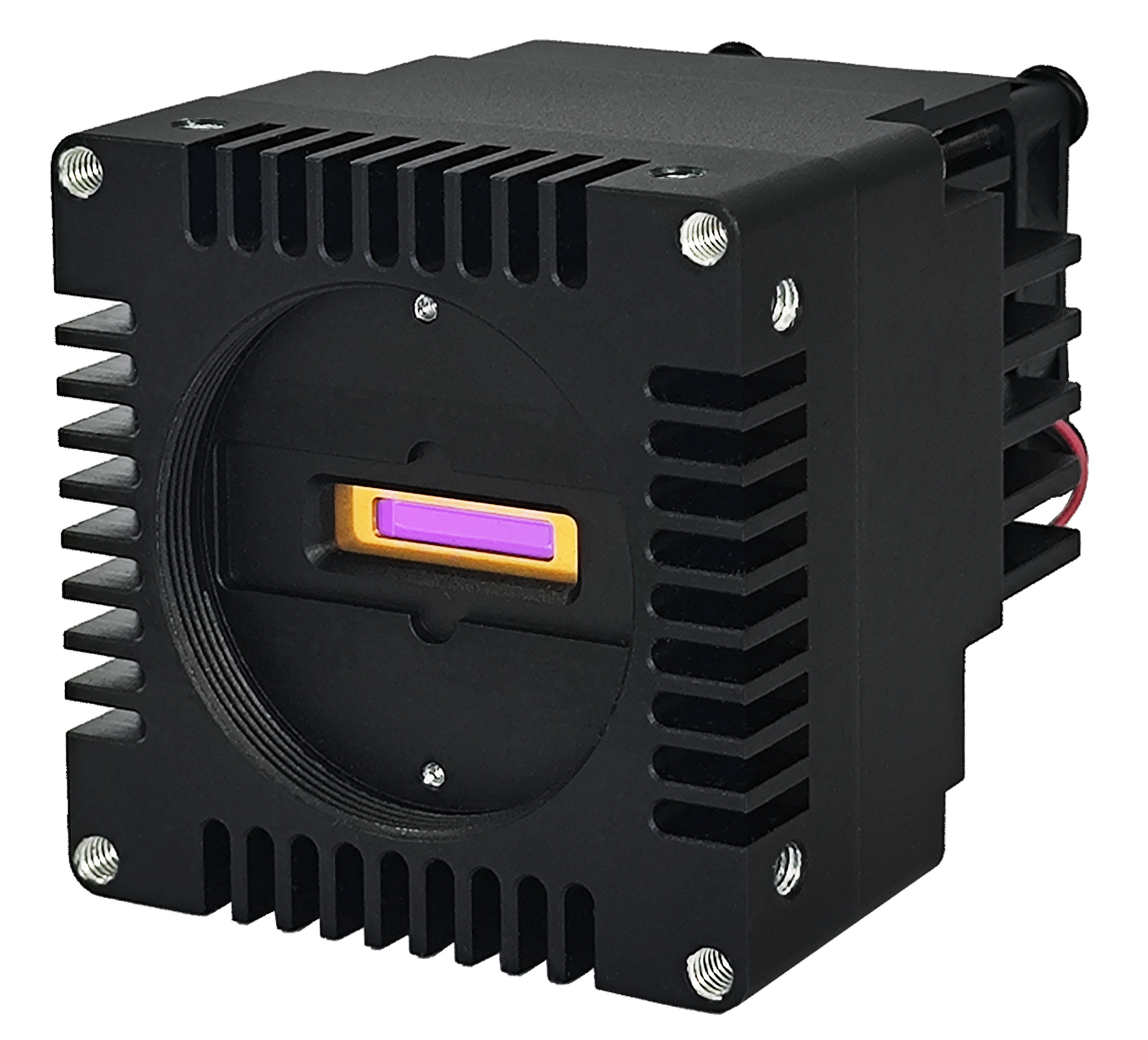

| Model | TPL1KCL-40KS |
| Sensor | Global Shutter InGaAs |
| Spectral Range | 950-1700 nm |
| Image Mode | Mono |
| Optical Size | 12.8 mm |
| Resolution | 1024 * 1 |
| Pixel Size | 12.5μm * 12.5μm |
| Max Line Rate | 40kHz |
| Bit Depth | 8/10/12/14 bit |
| Dynamic Range | ≥65.2dB |
| Data Rate | 71 MB/s |
| Trigger Mode | Free Run / External Pulse |
| Exposure Control | Pulse Width / Program |
| Exposure Time | 0.1μs-19987μs(Step:0.1μs) |
| Analog Gain | 1/5/25/50x |
| Digital Gain | 0.01-8.00x |
| Data Interface | Camera Link |
| Lens Mount | M42 * 1 |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC12-24V(±10%) 1.5A |
| Power Dissipation | TEC On: 10.2 WTEC Off: 6.0W |
| Cooling Mode | TEC Cooling |
| TEC Cooling | About 20℃ below ambient temperature |
| Dimensions | 60.0mm(W) x 60.0mm(H) x 75.76mm(D) |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
