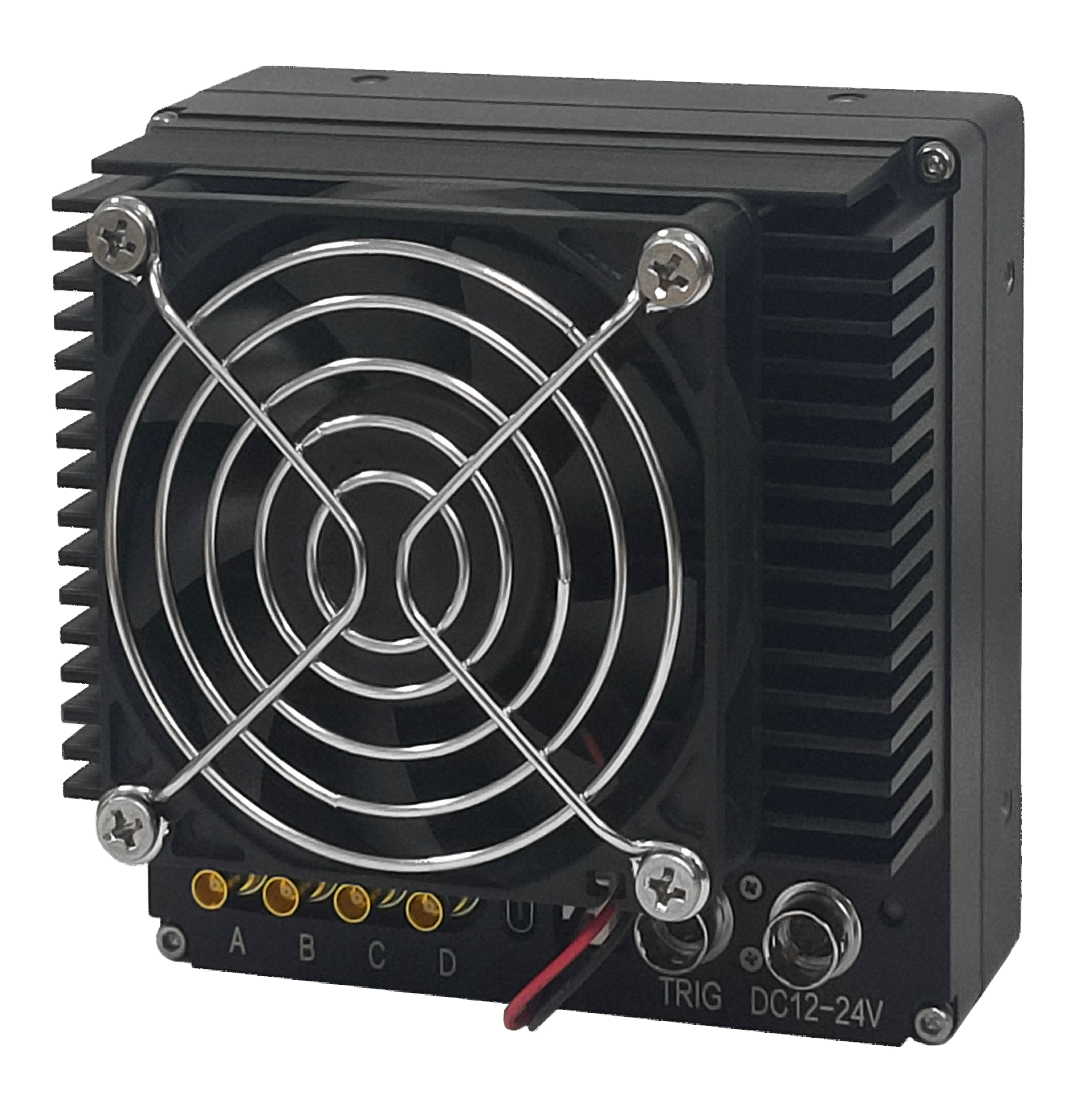

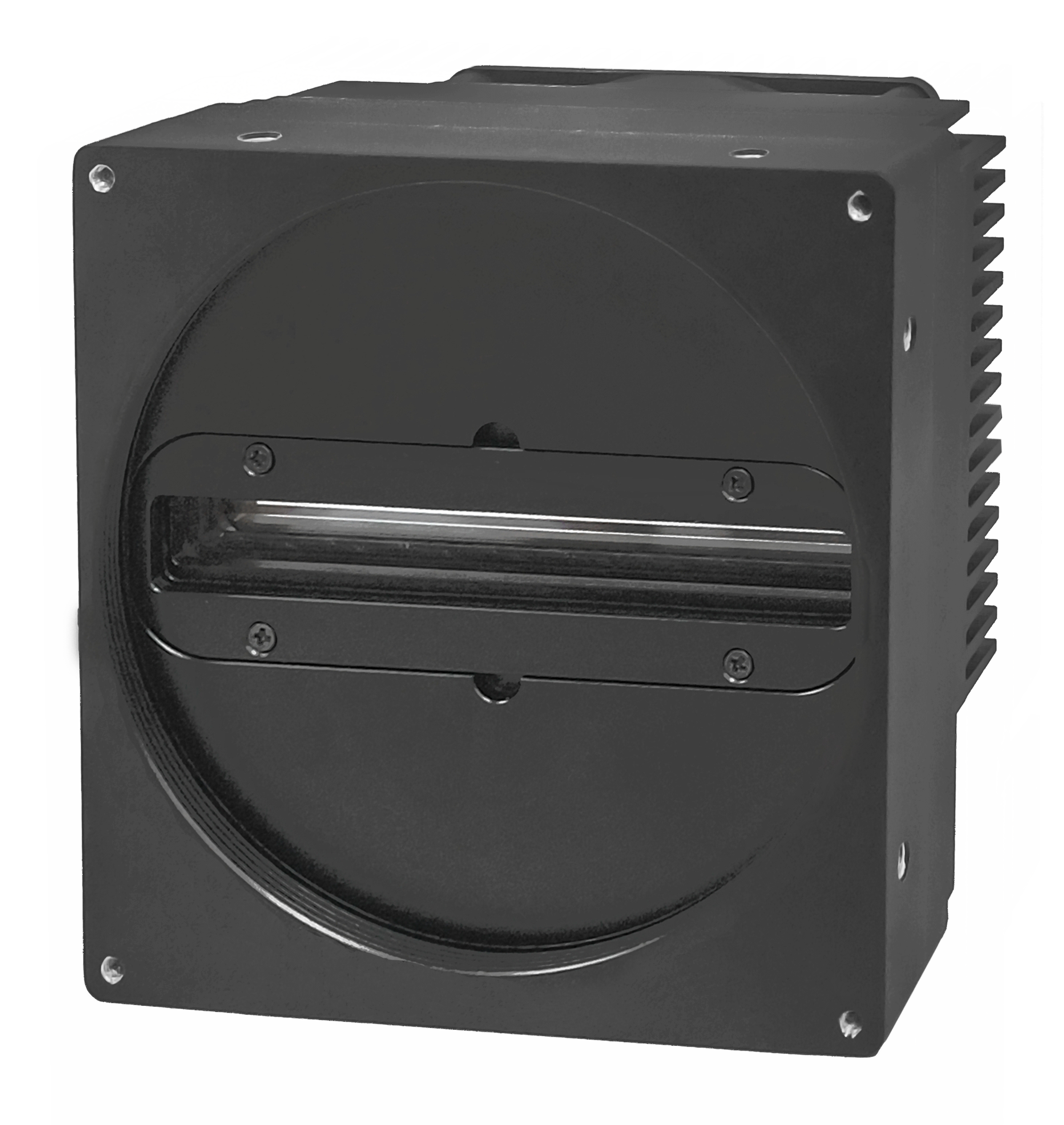

| Model | TPH16KCXP12-250KT |
| Sensor | Back Illuminated CCD |
| Image Mode | Mono |
| Optical Size | 81.92 mm |
| Resolution | 16384 * 256 |
| Pixel Size | 5μm * 5μm |
| Max Line Rate | 280.9kHz@8bit，234.7kHz@10bit，198.0kHz@12bit |
| Bit Depth | 8/10/12 bit |
| Dynamic Range | ≥ 53.7dB |
| Data Rate | 4866MB/s |
| Trigger Mode | Free Run / External Trigger |
| Exposure Control | External PWM / Timed |
| Exposure Time | Follow Line Rate |
| Analog Gain | x1/x2/x4/x8 |
| Digital Gain | 0.001-8.000x |
| Data Interface | CoaXPress12 |
| Lens Mount | M95 * 1 |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC12-24V(±10%) 5.0A |
| Power Dissipation | TEC OFF: 17.0WTEC ON:44.2W |
| Operating Temperature | 0~55℃ |
| Product Weight | 850.1g |
| Storage Temperature | -20~75℃ |
| TEC Cooling | About 17℃ below ambient temperature |
| Product Weight | 850.1g |
