Standards

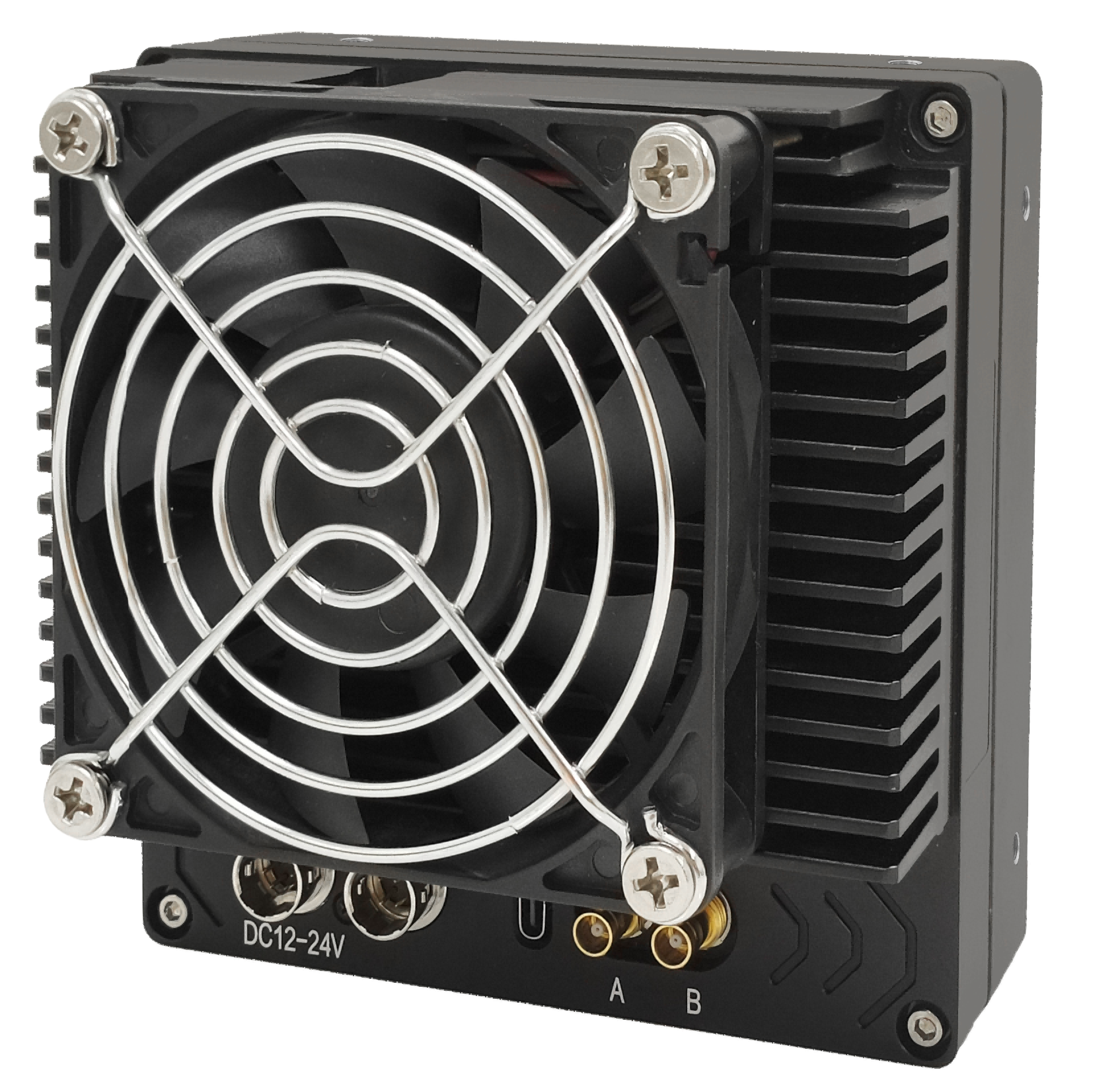

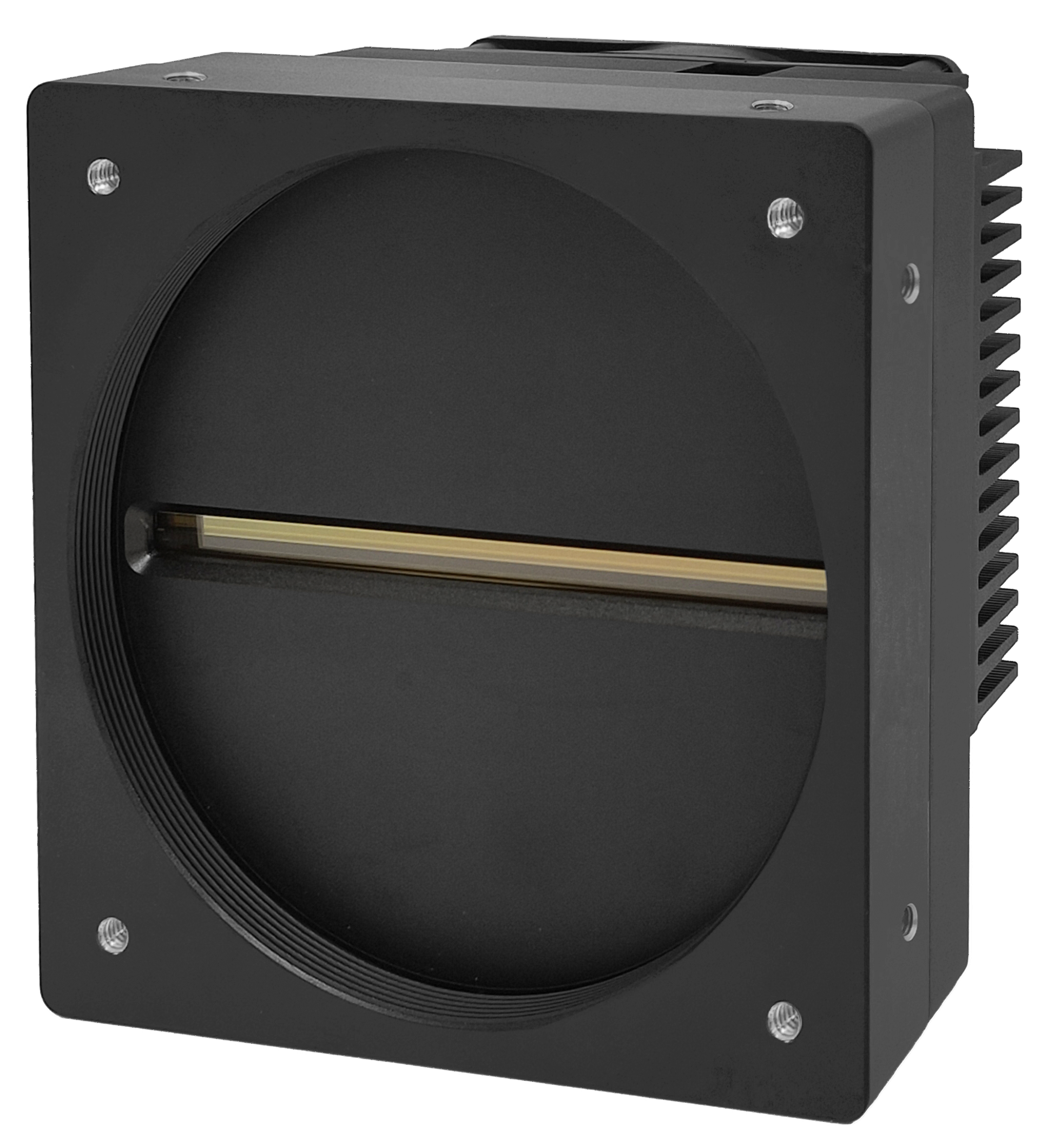

| Model | PR16KCXP10-70KC |
| Image Sensor | Global Shutter CMOS |
| Image Mode | Color |
| Optical Size | 81.92 mm |
| Resolution | 16384 * 3 |
| Pixel Size | 5μm * 5μm |
| Max Line Rate |
ROI OFF :39.9kHz@8bit, 31.9kHz@10bit ROI ON: 68.4kHz@8/10bit |
| Bit Depth | RGB/BGR@8/10bit |
| Dynamic Range | ≥62.8 dB |
| Data Rate | 1961 MB/s |
| Trigger Mode | Line Trigger / Frame Trigger |
| Exposure Control | Timed / Pulse Width Control |
| Exposure Time | 2.125μs - 63997μs(Step:0.0125μs) |
| Analog Gain | 1/2x |
| Digital Gain | 0.1-8.0x |
| Lens Mount | M90 * 1 |
| Data Interface | CoaXPress10 |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC12-24V(±10%) 2A |
| Power Dissipation | 17.3 W |
| Dimensions | 99.0mm(W) x 99.0mm(H) x 73.0mm(D) |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 838.5g |
