Standards

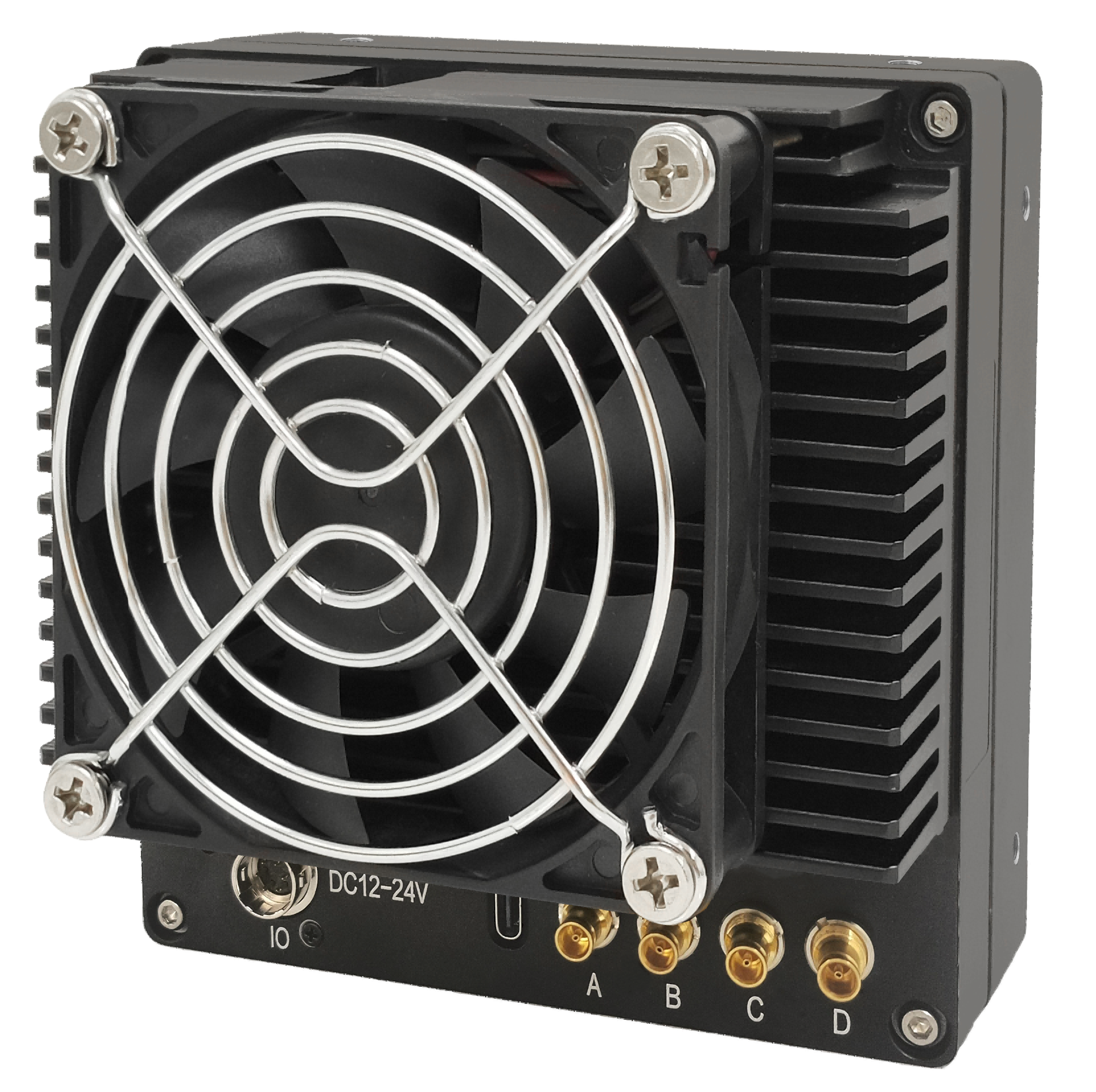

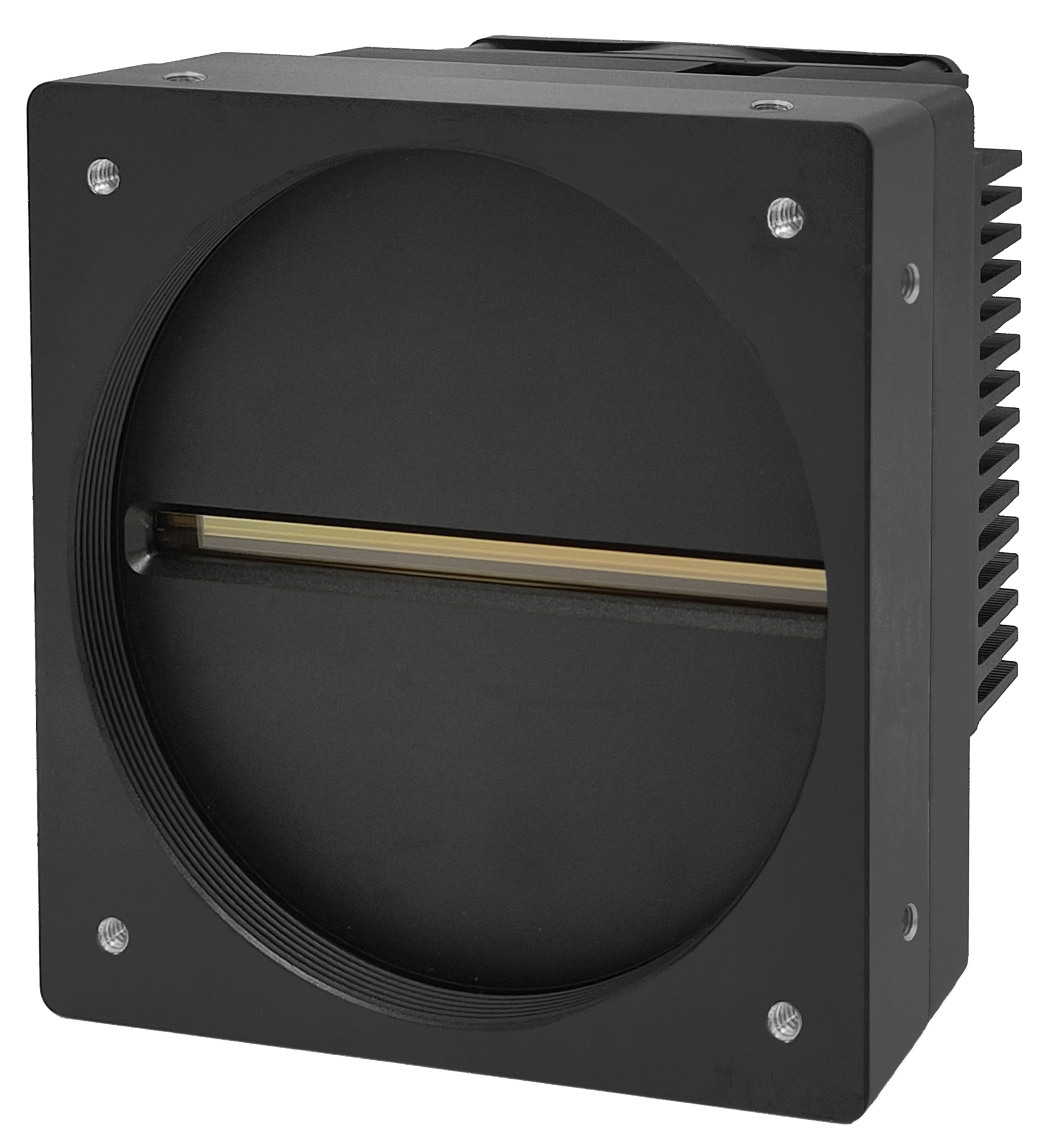

| Model | PR16KCXP-40KC |
| Image Sensor | Global Shutter CMOS |
| Image Mode | Color |
| Optical Size | 81.92 mm |
| Resolution | 16384 * 6 |
| Pixel Size | 5μm * 5μm |
| Max Line Rate | 39.8kHz |
| Bit Depth | RGB/BGR@8/10bit |
| Dynamic Range | ≥64.2dB |
| Data Rate | 2445MB/s |
| Trigger Mode | Line Trigger / Frame Trigger |
| Exposure Control | Timed / Pulse Width Control |
| Exposure Time | 2.2μs - 63997μs(step:0.0125μs) |
| Analog Gain | 1/2/4/8x |
| Digital Gain | 0.1-8.0x |
| Lens Mount | M90 * 1 |
| Data Interface | CoaXPress |
| Power Connector | Hirose HR10A-7P-6S(Female) |
| Power Supply | DC12-24V(±10%) 2.5A |
| Power Dissipation | 18.6 W |
| Dimensions | 99.0mm(W) x 99.0mm(H) x 73.0mm(D) |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 845.5g |
