Standards

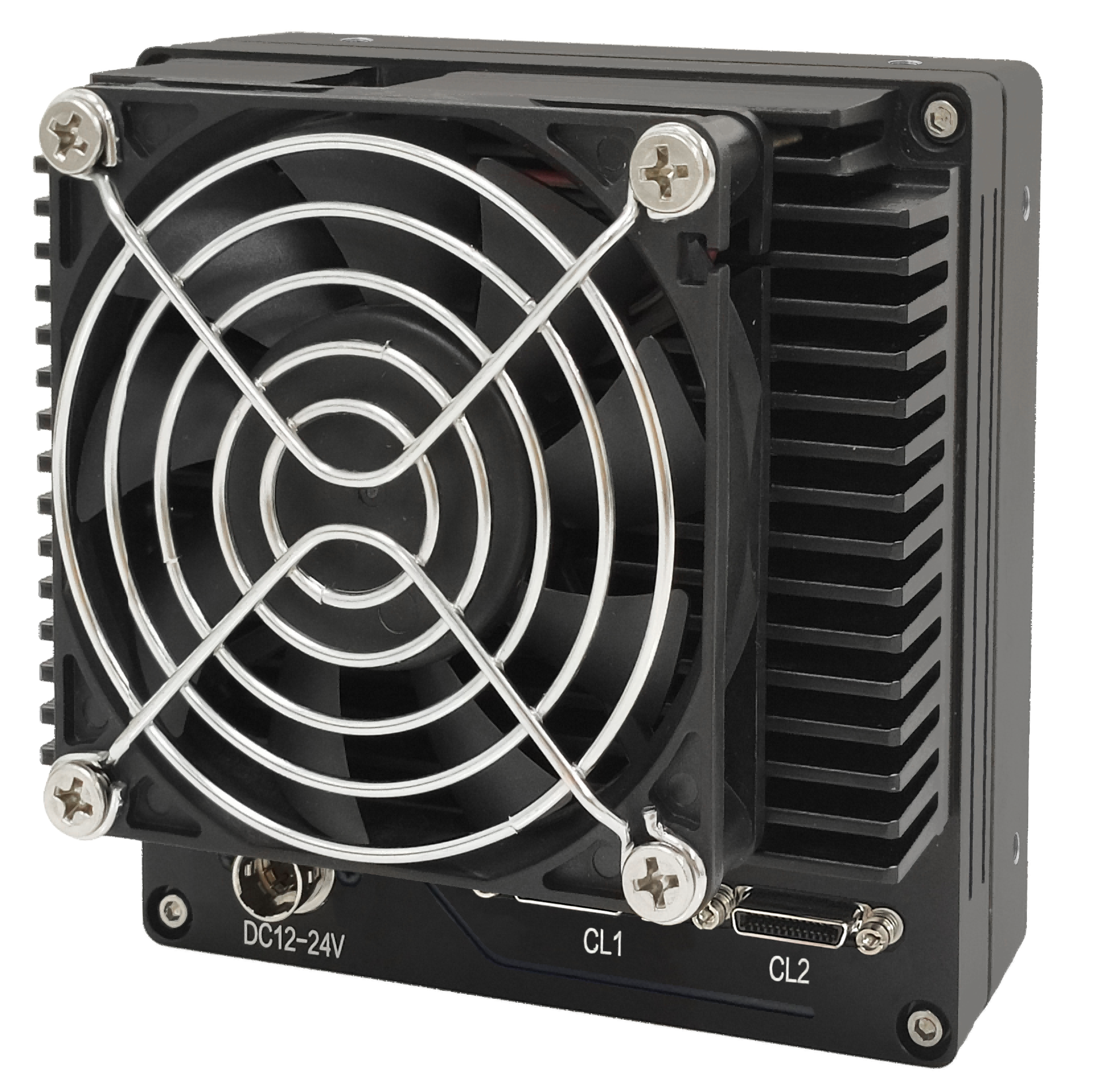

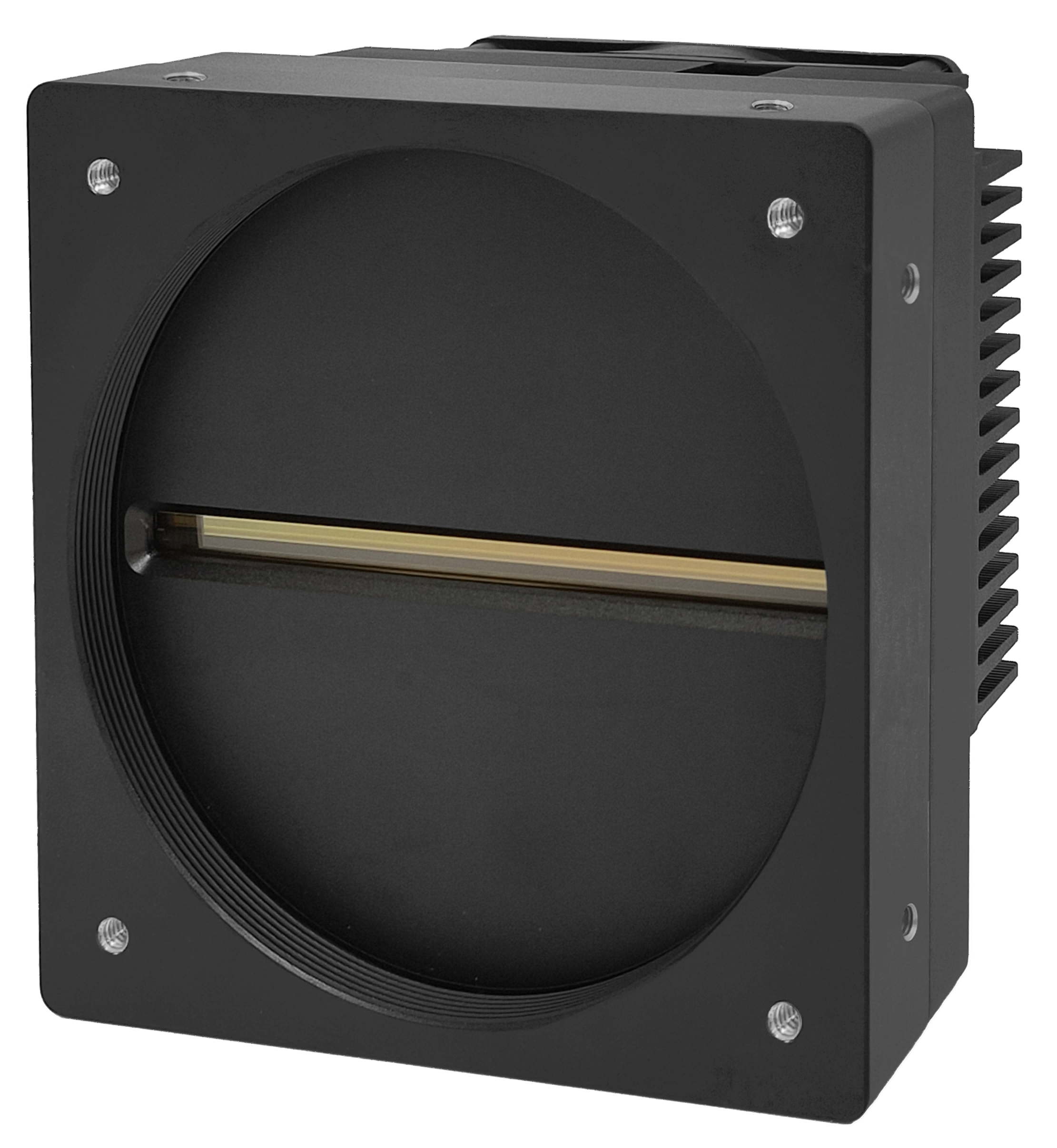

| Model | PR16KCL-51KT |
| Image Sensor | Global Shutter CMOS |
| Image Mode | Mono |
| Optical Size | 81.92 mm |
| Resolution | 16384 * 2 |
| Pixel Size | 5μm * 5μm |
| Max Line Rate | 51.0kHz@10Tap, 40.8kHz@8Tap, 20.4kHz@4Tap, 10.2kHz@2Tap |
| Bit Depth | 8/10bit |
| Dynamic Range | ≥64.8 dB |
| Data Rate | 835MB/s |
| Trigger Mode | Free-Run / External Pulse / External PWM |
| Exposure Control | Timed / Pulse Width Control |
| Exposure Time | 3.2μs - 63997μs(Step:0.01μs) |
| Analog Gain | 1x / 2x |
| Digital Gain | 0.01-8.00x |
| Lens Mount | M90 * 1 |
| Data Interface | Camera Link |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC12-24V(±10%) 2A |
| Power Dissipation | 12.0 W |
| Dimensions | 99.0mm(W) x 99.0mm(H) x 73.0mm(D) |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 831.1g |
