Standards

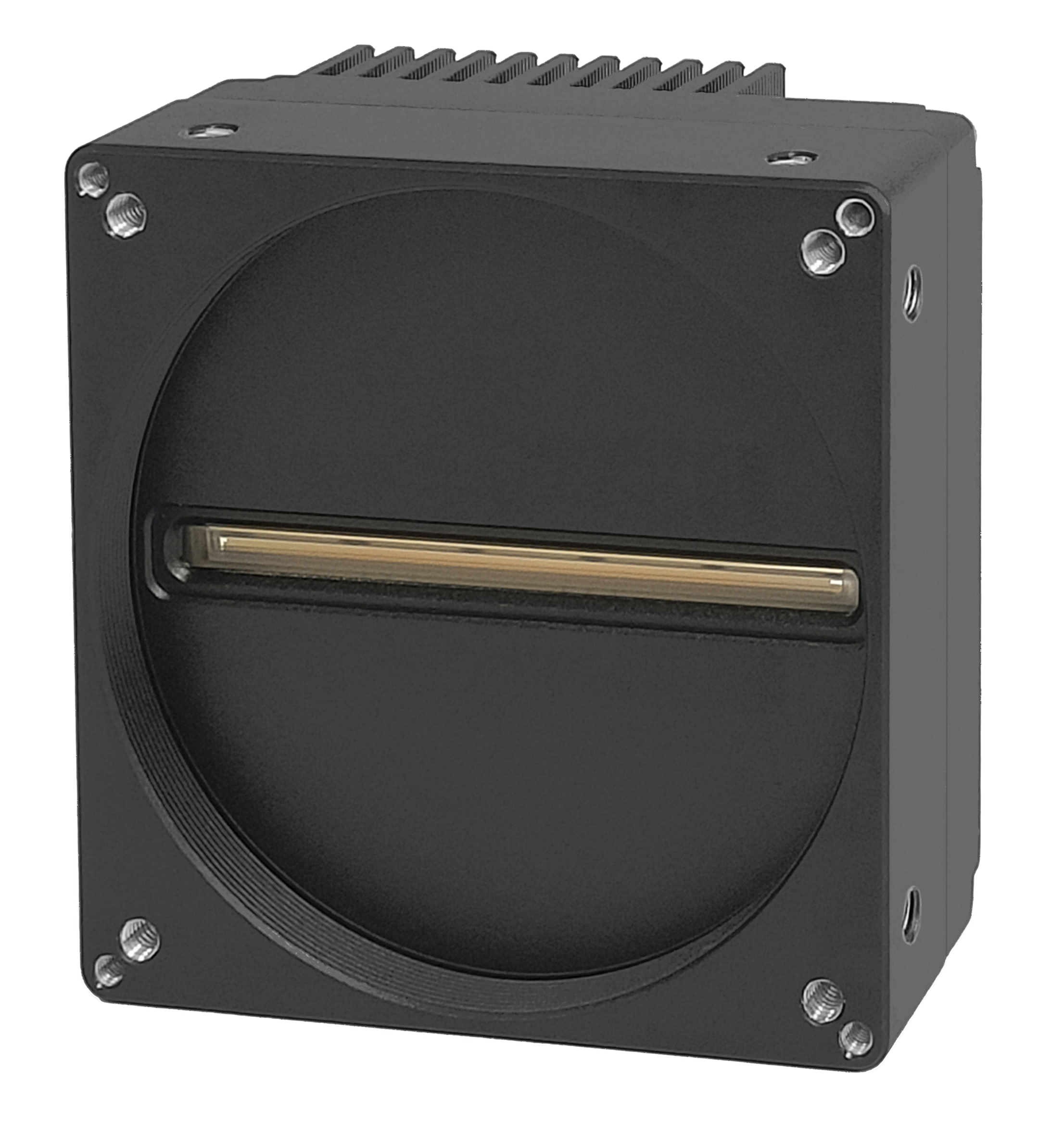

| Model | PN8KCL-80KT |
| Image Sensor | Global Shutter CMOS |
| Image Mode | Mono |
| Optical Size | 57.34 mm |
| Resolution | 8192 * 2 |
| Pixel Size | 7μm * 7μm |
| Max Line Rate | 79.4kHz@10/8Tap, 40.8kHz@4Tap, 20.4kHz@2Tap |
| Bit Depth | 8/10bit |
| Dynamic Range | ≥65.7 dB |
| Data Rate | 813 MB/s |
| Trigger Mode | Free-Run / External Pulse / External PWM |
| Exposure Control | External PWM / Timed |
| Exposure Time | 3.5μs-63997μs(Step:0.01μs) |
| Analog Gain | x1/x2/x3/x4/x5/x6/x7/x8/x32 |
| Digital Gain | 0.01-8.00x |

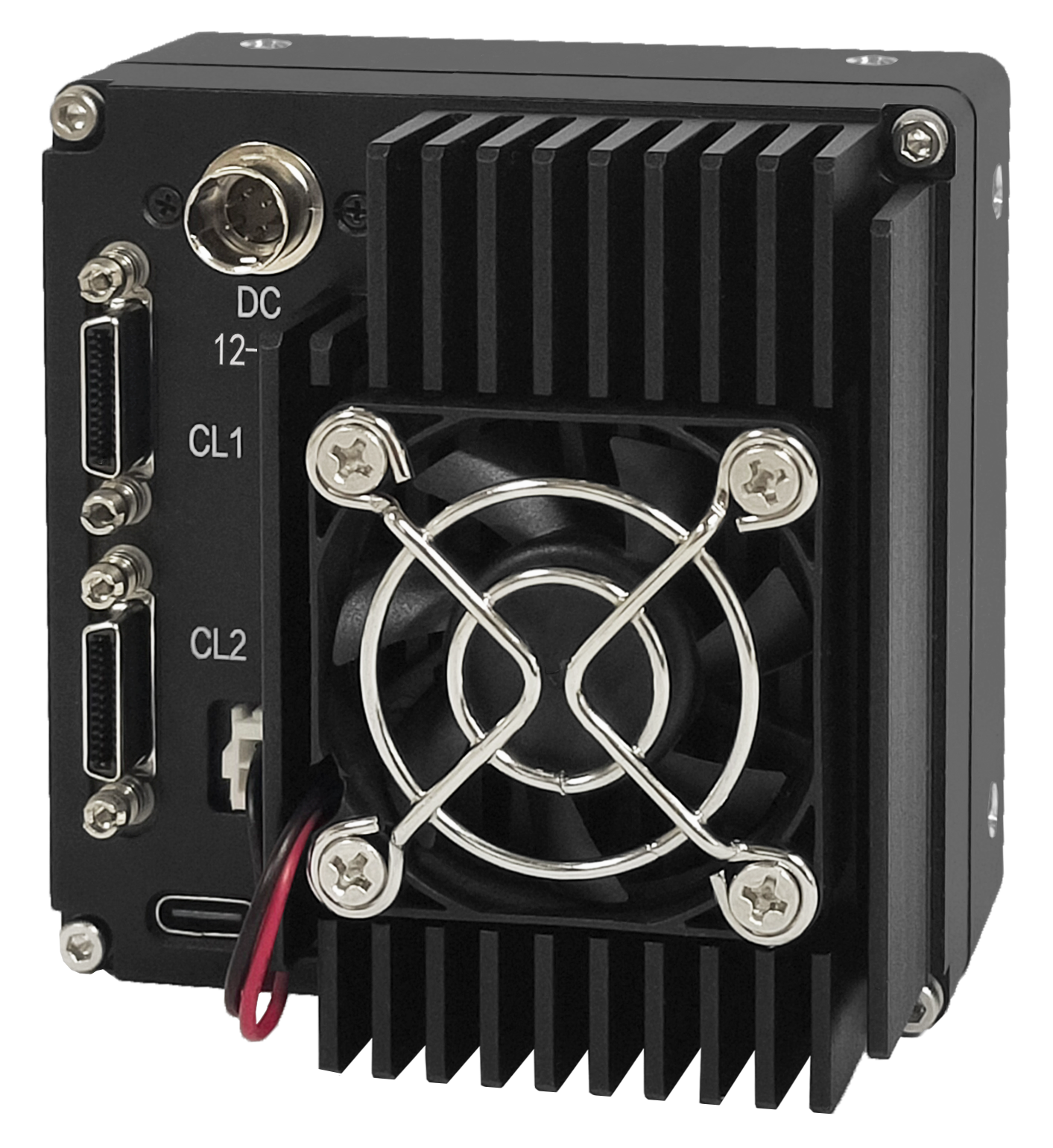

| Data Interface | Camera Link |
| Lens Mount | M72 * 0.75 |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC12-24V(±10%) 1.0A |
| Power Dissipation | 7.0 W |
| Dimensions | 76.0mm(W) x 76.0mm(H) x 54.61mm(D) |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 424.3g |
