Standards

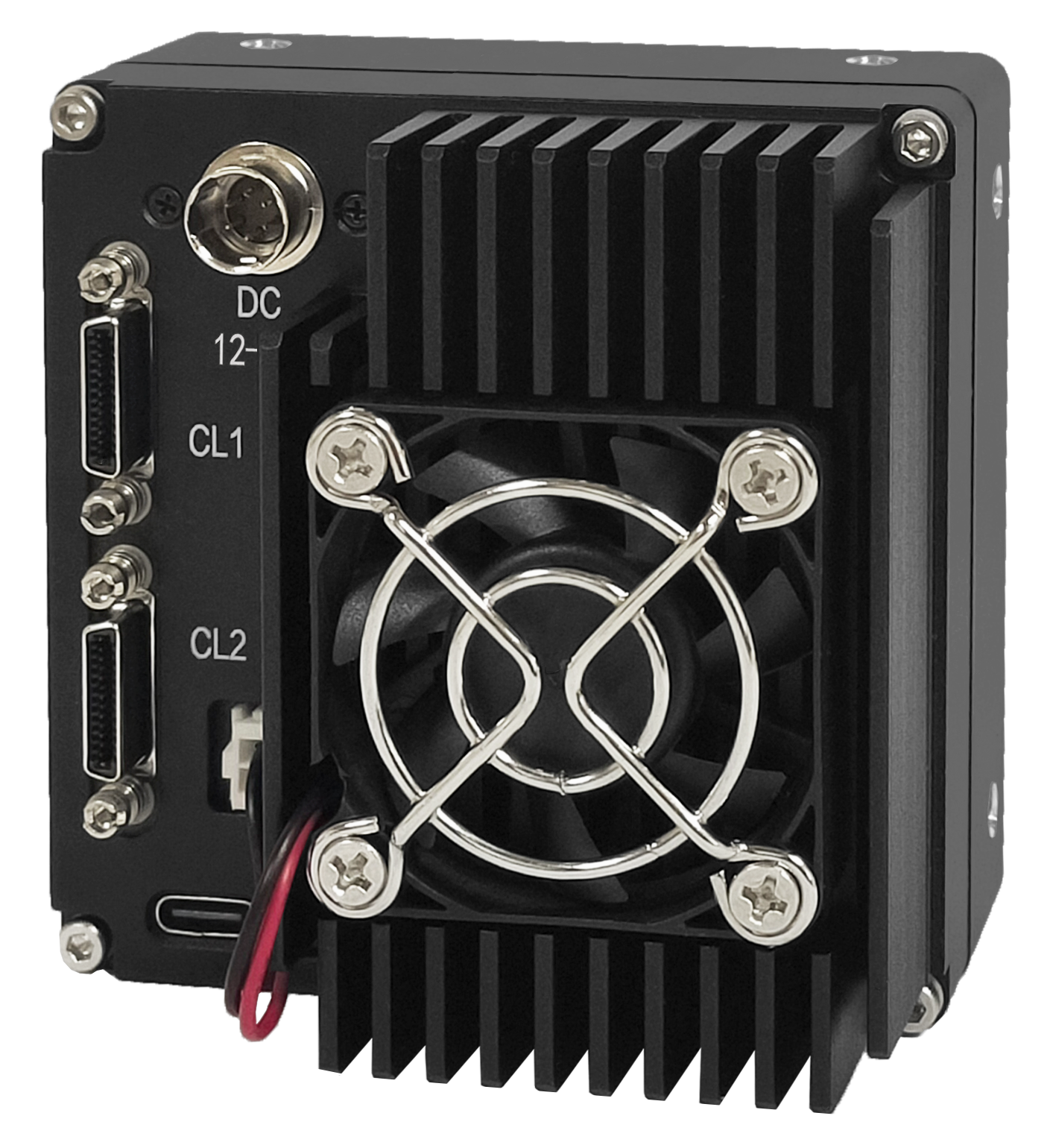

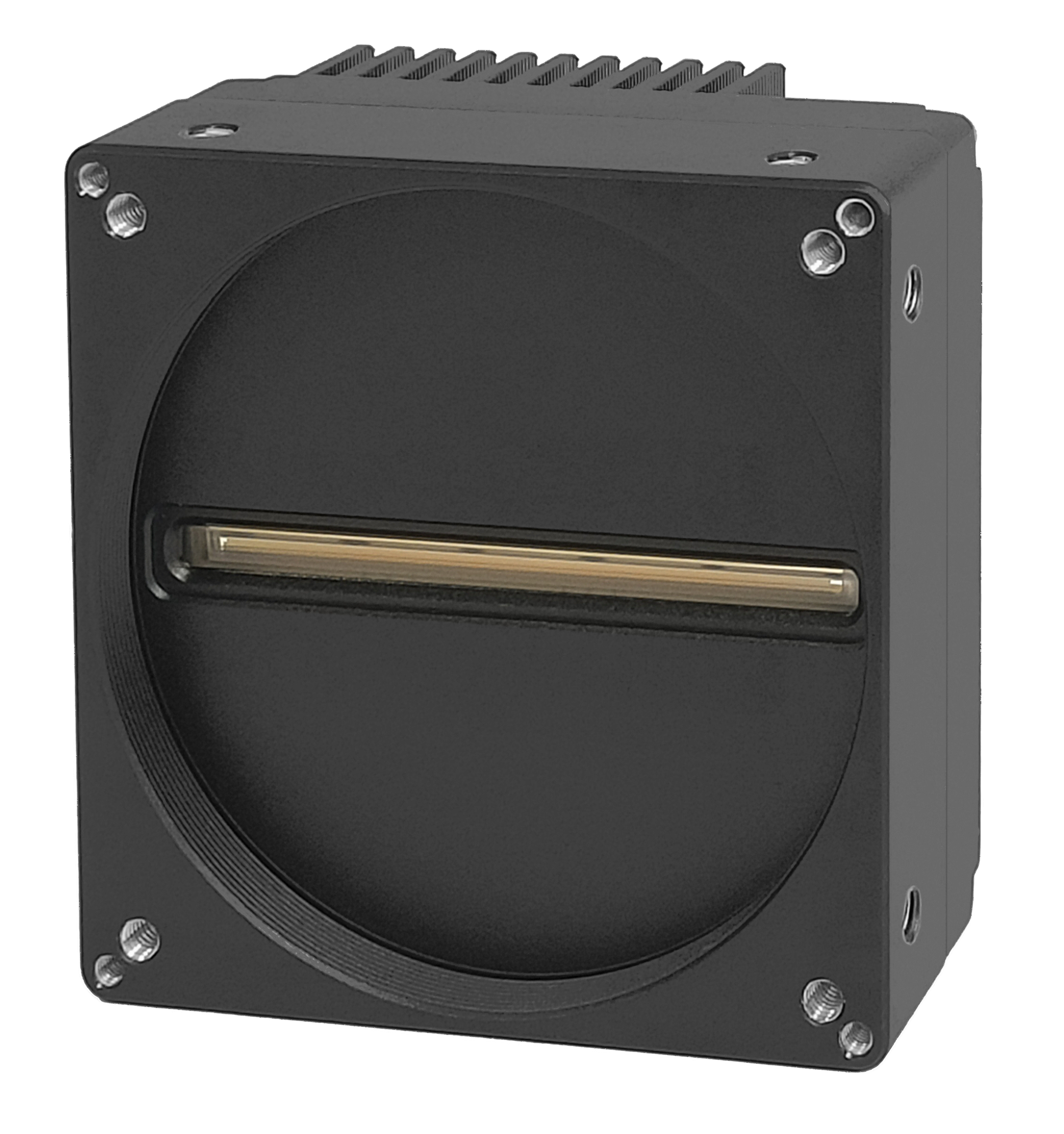

| Model | PN8KCL-33KC |
| Image Sensor | Global Shutter CMOS |
| Image Mode | Color |
| Optical Size | 57.34 mm |
| Resolution | 8192 * 3 |
| Pixel Size | 7μm * 7μm |
| Max Line Rate | 33.3kHz@3Tap, 20.3kHz@2Tap, 10.2kHz@1Tap |
| Bit Depth | 8/10bit |
| Dynamic Range | ≥65.7 dB |
| Data Rate | 818 MB/s |
| Trigger Mode | Free-Run / External Pulse / External PWM |
| Exposure Control | Pulse width / Program |
| Exposure Time | 3.5μs-63997μs(Step:0.01μs) |
| Analog Gain | 1/2/3/4/5/6/7/8x |
| Digital Gain | 0.01-8.00x |
| Data Interface | Camera Link |
| Lens Mount | M72 * 0.75 |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC12-24V(±10%) 1.0A |
| Power Dissipation | 6.6 W |
| Dimensions | 76.0mm(W) x 76.0mm(H) x 43.4mm(D) |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 397.6g |
