Standards

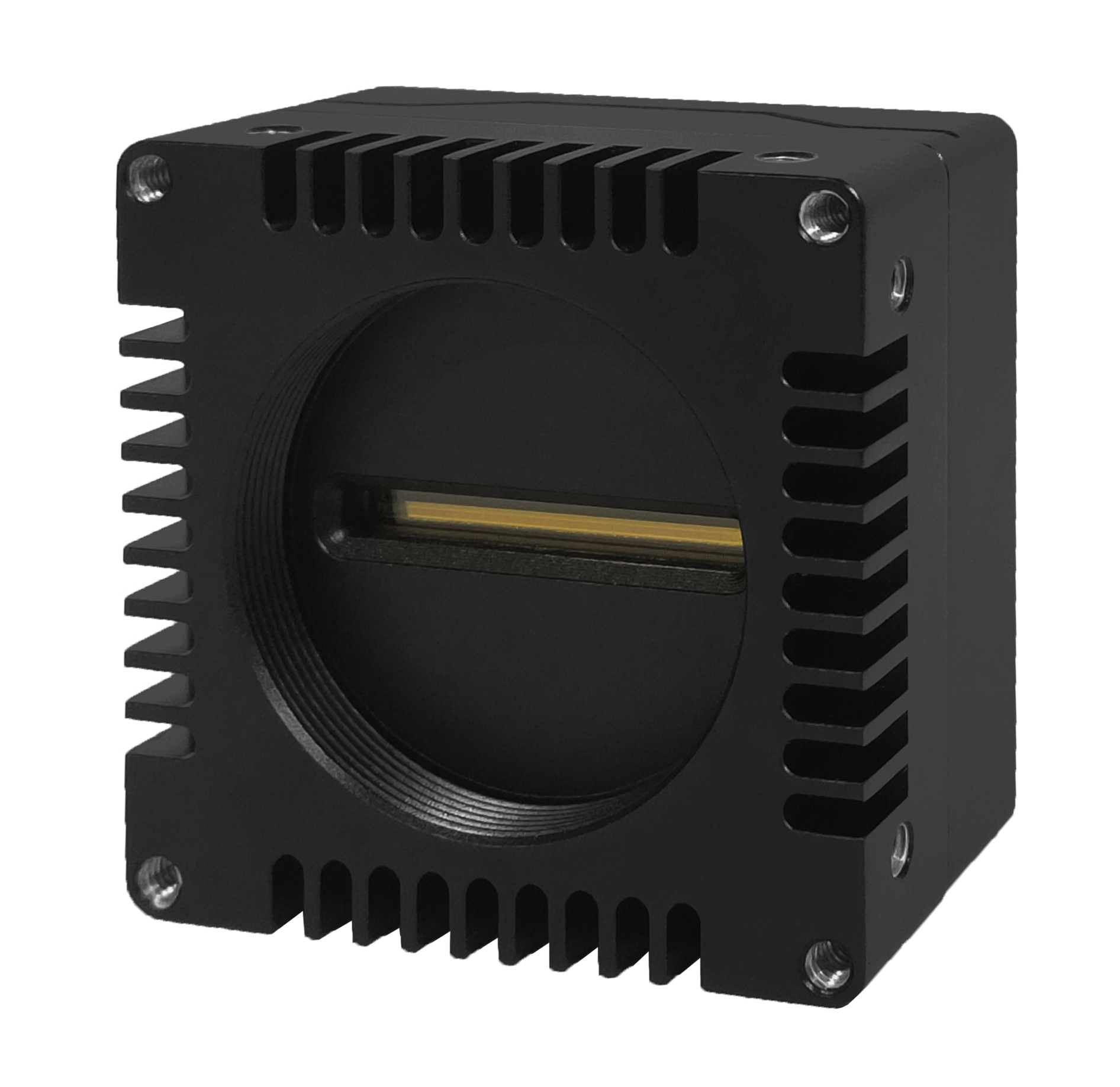

| Model | PN4KCL-46KC |
| Image Sensor | Global Shutter CMOS |
| Image Mode | Color |
| Optical Size | 28.67 mm |
| Resolution | 4096 * 3 |
| Pixel Size | 7μm * 7μm |
| Max Line Rate | 67.9kHz@3Tap, 41.0kHz@2Tap,20.5kHz@1Tap |
| Bit Depth | 8/10bit |
| Dynamic Range | ≥61.9 dB |
| Data Rate | 834 MB/s |
| Trigger Mode | Free-Run / External Pulse / External PWM |
| Exposure Control | External PWM / Timed |
| Exposure Time | 4.5μs-63997μs(Step:0.001μs) |
| Analog Gain | 1/2/3/4/5/6/7/8x |
| Digital Gain | 0.01-8.00x |
| Data Interface | Camera Link |
| Lens Mount | M42 |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC12-24V(±10%) 0.5A |
| Power Dissipation | 3.8 W |
| Dimensions | 60.0mm(W) x 60.0mm(H) x 37.42mm(D) |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 215.5g |
