Standards

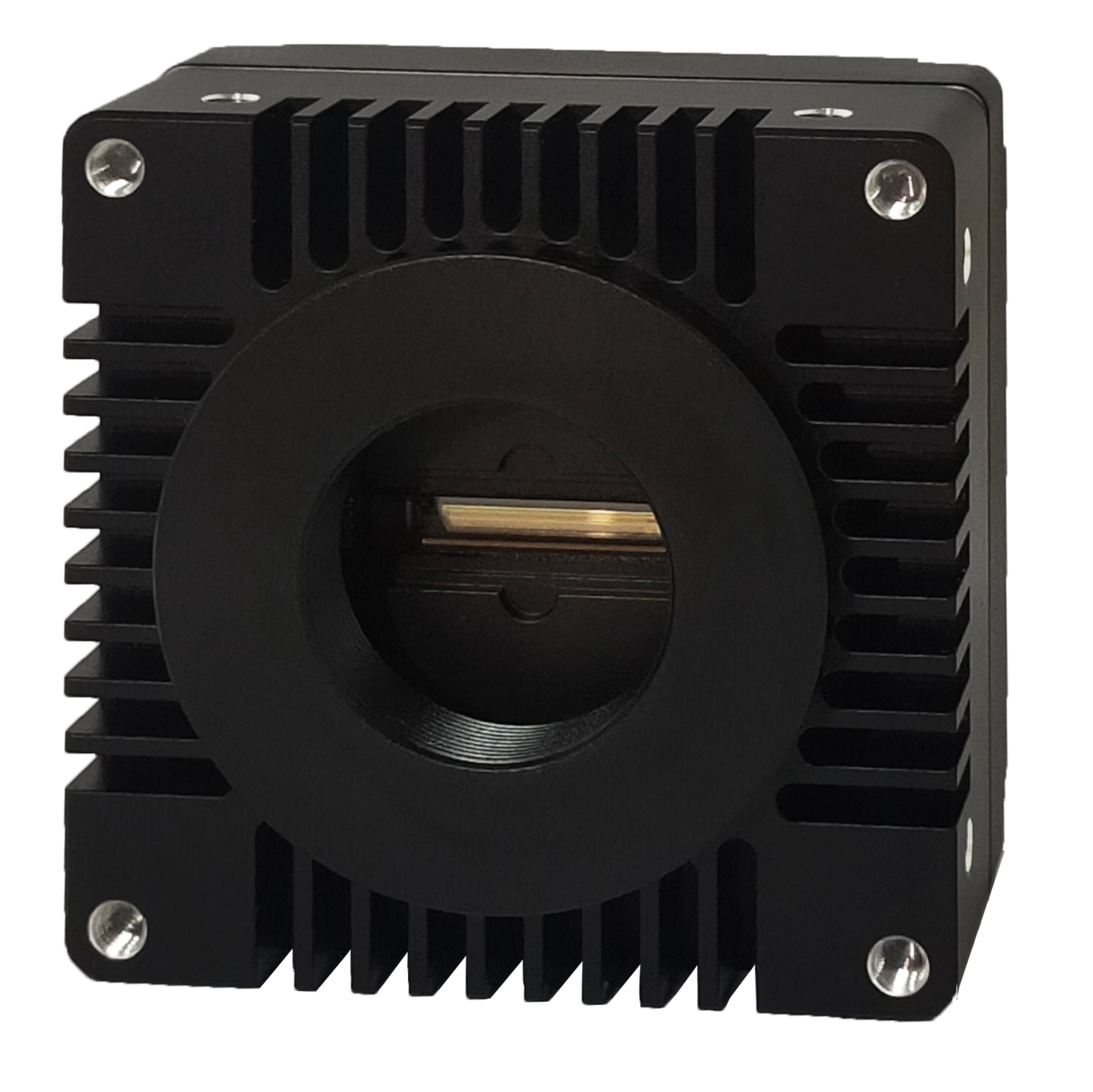

| Model | PN2KGV-60KM |
| Image Sensor | Global Shutter CMOS |
| Image Mode | Mono |
| Optical Size | 28.67 mm |
| Resolution | 2048 * 1 |
| Pixel Size | 14μm * 14μm |
| Max Line Rate | 59.9kHz |
| Bit Depth | 8bit |
| Dynamic Range | ≥53.6 dB |
| Data Rate | 123 MB/s |
| Trigger Mode | Free-Run / Line Trigger Mode / Frame Trigger Mode |
| Exposure Control | Pulse Width Control / Timed |
| Exposure Time | 5μs-63998μs (Step:0.0166μs) |
| Analog Gain | 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8x |
| Digital Gain | 0.1-8.0x |
| Data Interface | GigE Vision |
| Lens Mount | M42 Mount |

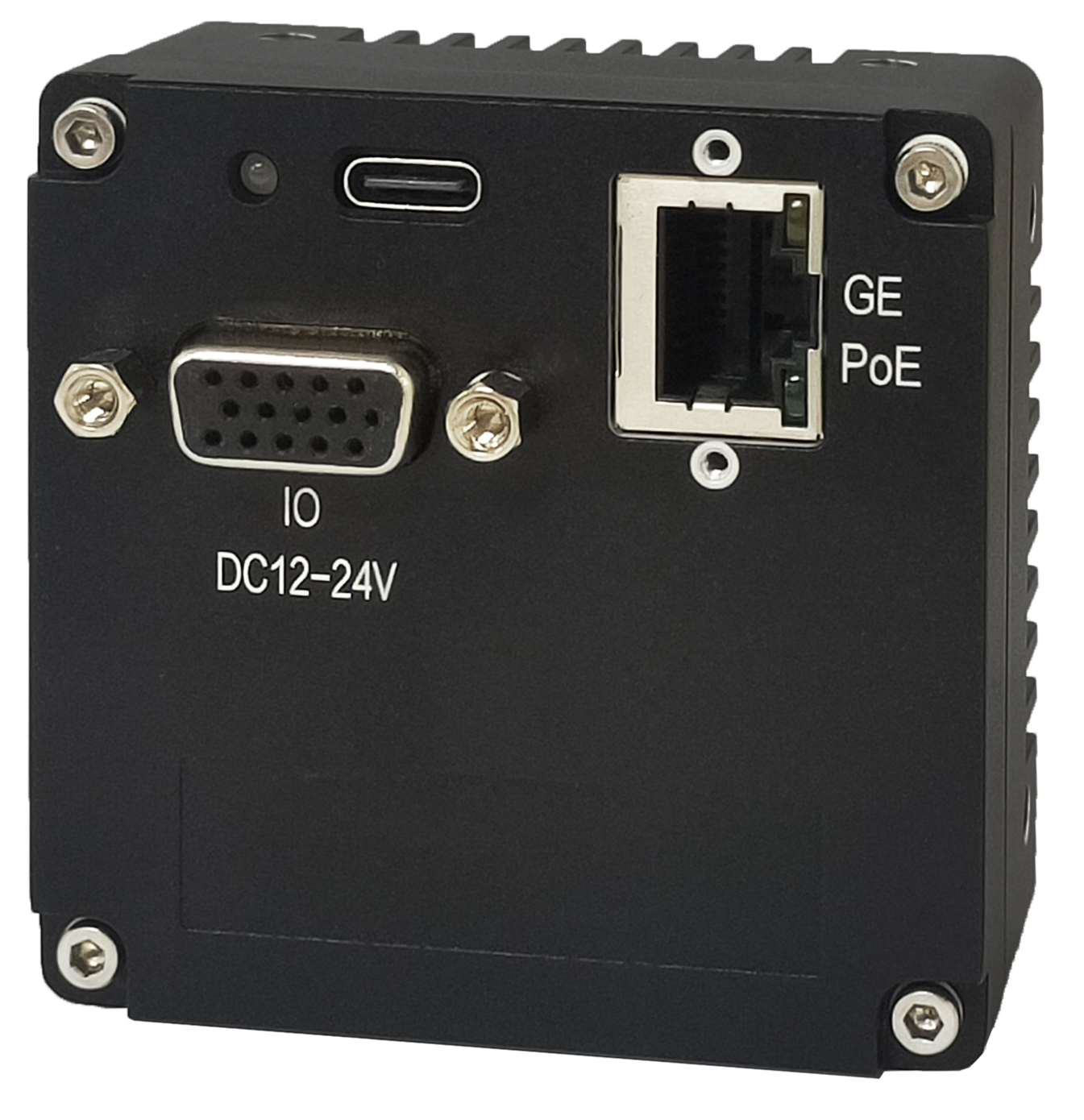

| Power Connector | HD15 (Female) |
| Power Supply | DC12-24V (±10%) 0.5A or PoE |
| Power Dissipation | 3.5W(DC) / 4.1W(PoE) |
| Dimensions | 62.0mm(W) x 62.0mm(H) x 37.5mm(D) |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 171.0g |
