Standards

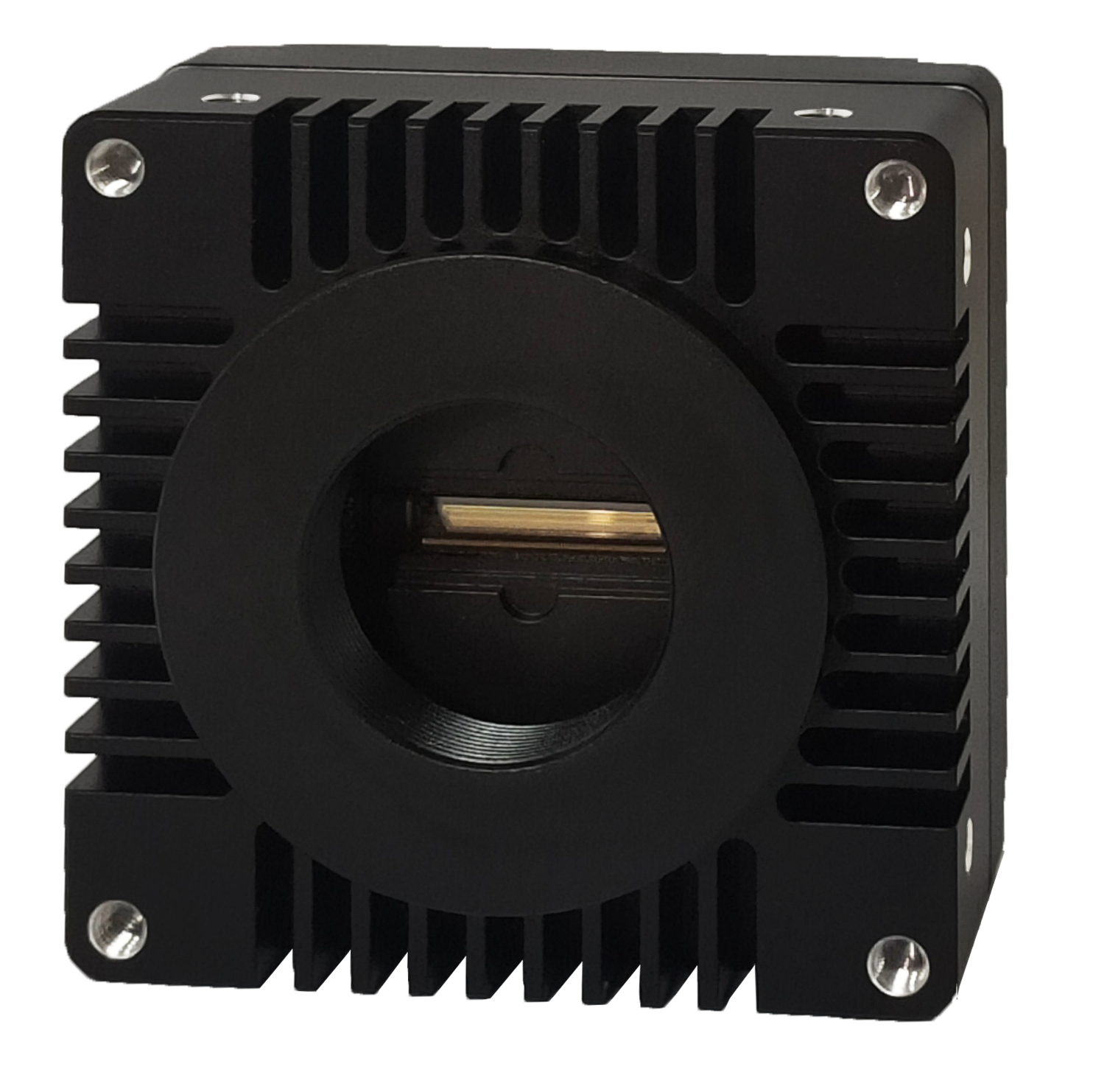

| Model | PN2KGV-48KC |
| Image Sensor | Global Shutter CMOS |
| Image Mode | Color |
| Optical Size | 14.33 mm |
| Resolution | 2048 * 3 |
| Pixel Size | 7μm * 7μm |
| Max Line Rate |
RGB8Packed: 20.1kHz(47.8kHz with SAccel TM) Bayer8: 59.9kHz(78.7kHz with SAccel) |
| Bit Depth | RGB8Packed / Bayer8 |
| Dynamic Range | ≥53.8 dB |
| Data Rate |
Compression Mode: 294MB/s No-Compression Mode: 123MB/s |
| Trigger Mode | Free-Run / Line Trigger Mode / Frame Trigger Mode |
| Exposure Control | Pulse Width Control / Timed |
| Exposure Time | 2.1μs-1s(step:1μs) |
| Analog Gain | 1/2/3/4/5/6/7/8x |
| Digital Gain | 0.01-7.999x |

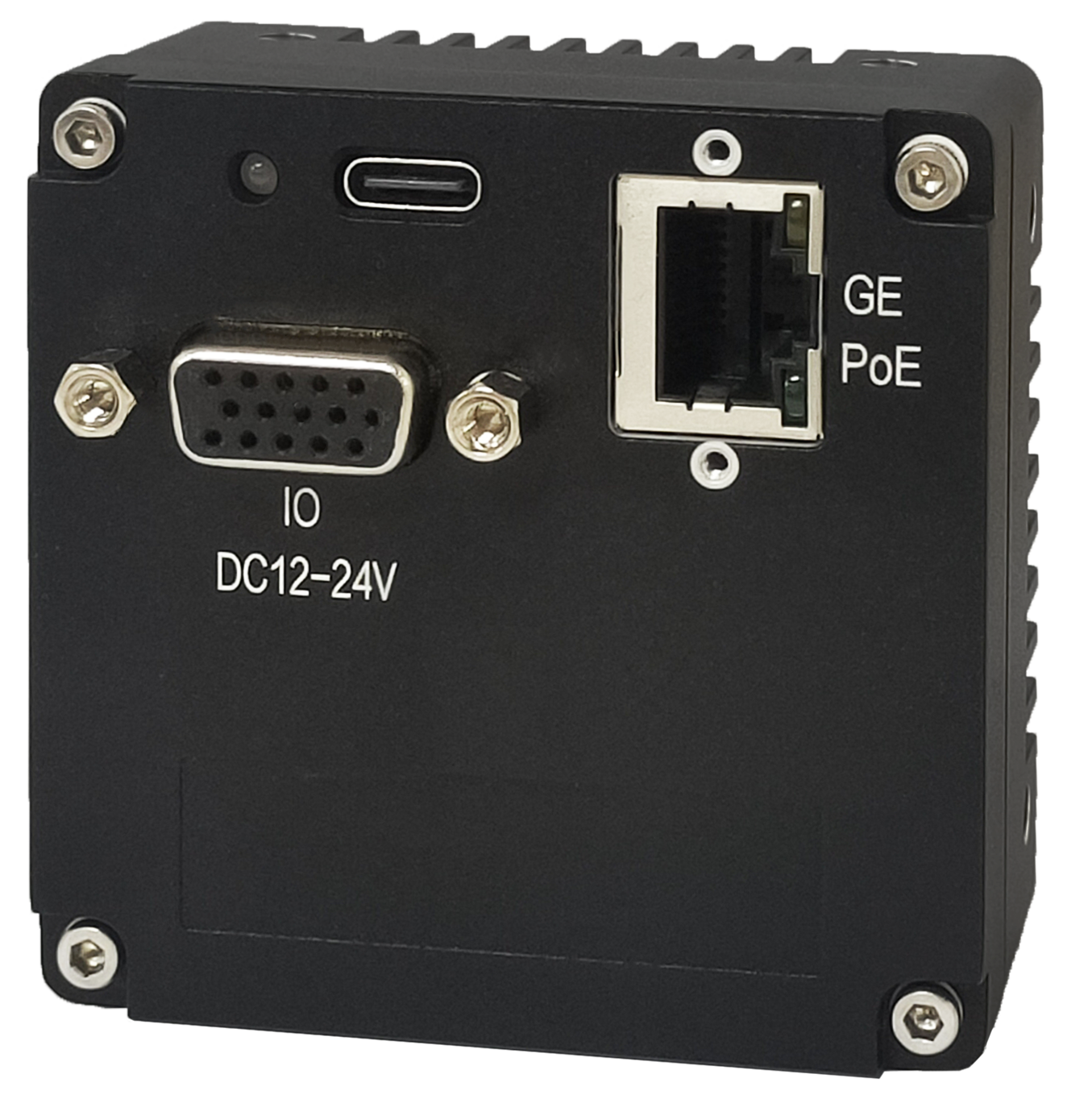

| Data Interface | GigE Vision |
| Lens Mount | C Mount |
| Power Connector | HD15 (Female) |
| Power Supply | DC12-24V(±10%) 0.5A or PoE |
| Power Dissipation | 3.2W (DC) / 3.8W (PoE) |
| Dimensions | 62.0mm(W) x 62.0mm(H) x 42.8mm(D) |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 341.0g |
