Standards

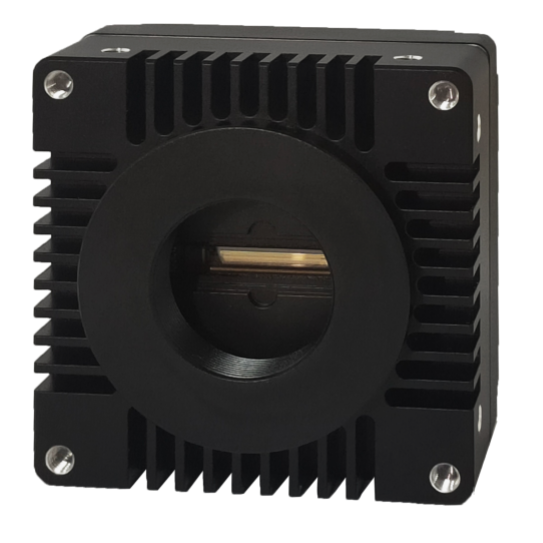

| Model | PN2KGV-140KM |
| Image Sensor | Global Shutter CMOS |
| Image Mode | Mono |
| Optical Size | 14.33 mm |
| Resolution | 2048 * 1 |
| Pixel Size | 7μm * 7μm |
| Max Line Rate | 60kHz (140kHz with SAccelTM) |
| Bit Depth | 8/10/10pbit |
| Dynamic Range | ≥64.5 dB |
| Data Rate |
Compression Mode: 287MB/s Non-Compression Mode: 123MB/s |
| Trigger Mode | Free-Run / Line Trigger Mode / Frame Trigger Mode |
| Exposure Control | Pulse Width Control / Timed |
| Exposure Time | 2μs-1s (Step:1μs) |
| Analog Gain | 1/2/3/4/5/6/7/8x |
| Digital Gain | 0.1-8.0x |
| Data Interface | GigE Vision |
| Lens Mount | C Mount |
| Power Connector | HD15 (Female) |
| Power Supply | DC12-24V(±10%) 0.5A or PoE |
| Power Dissipation | 3.4W(DC) / 3.8W (PoE) |
| Dimensions | 62.0mm(W) x 62.0mm(H) x 42.8mm(D) |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 341.0g |
