Standards

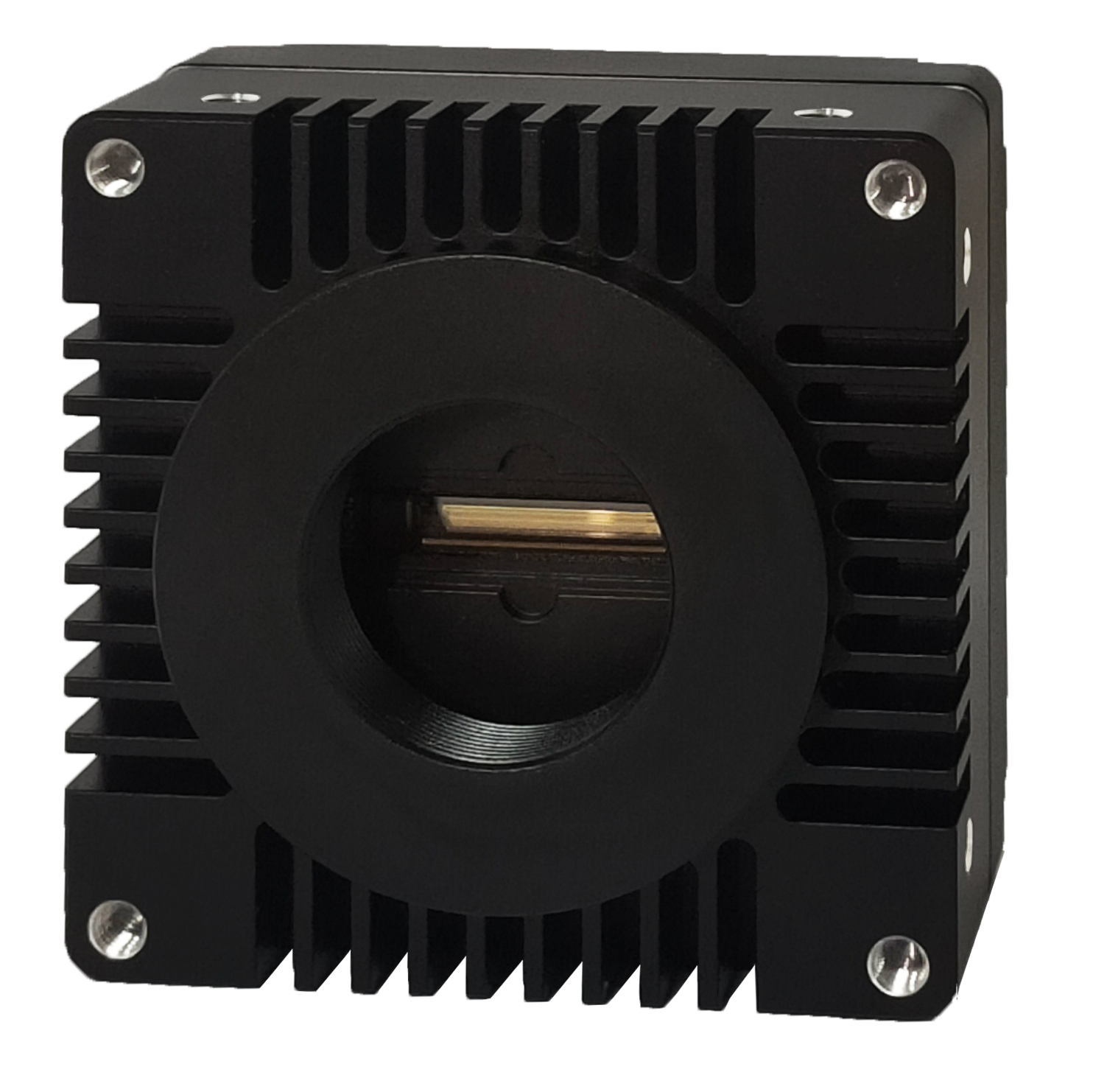

| Model | PN2KCL-92KT4 |
| Image Sensor | Global Shutter CMOS |
| Image Mode | Mono |
| Optical Size | 14.33 mm |
| Resolution | 2048 * 4 |
| Pixel Size | 7μm * 7μm |
| Max Line Rate | 91.7kHz@10/8/4Tap, 82.5kHz@2Tap |
| Bit Depth | 8/10/12bit |
| Dynamic Range | ≥68.4dB |
| Data Rate | 283MB/s |
| Trigger Mode | Free-Run / External Pulse / External PWM |
| Exposure Control | Pulse Width Control / Timed |
| Exposure Time | 2μs ~ 10s (step: 0.025μs) |
| Analog Gain | 1/2/4/8x |
| Digital Gain | 0.01-16.00 |

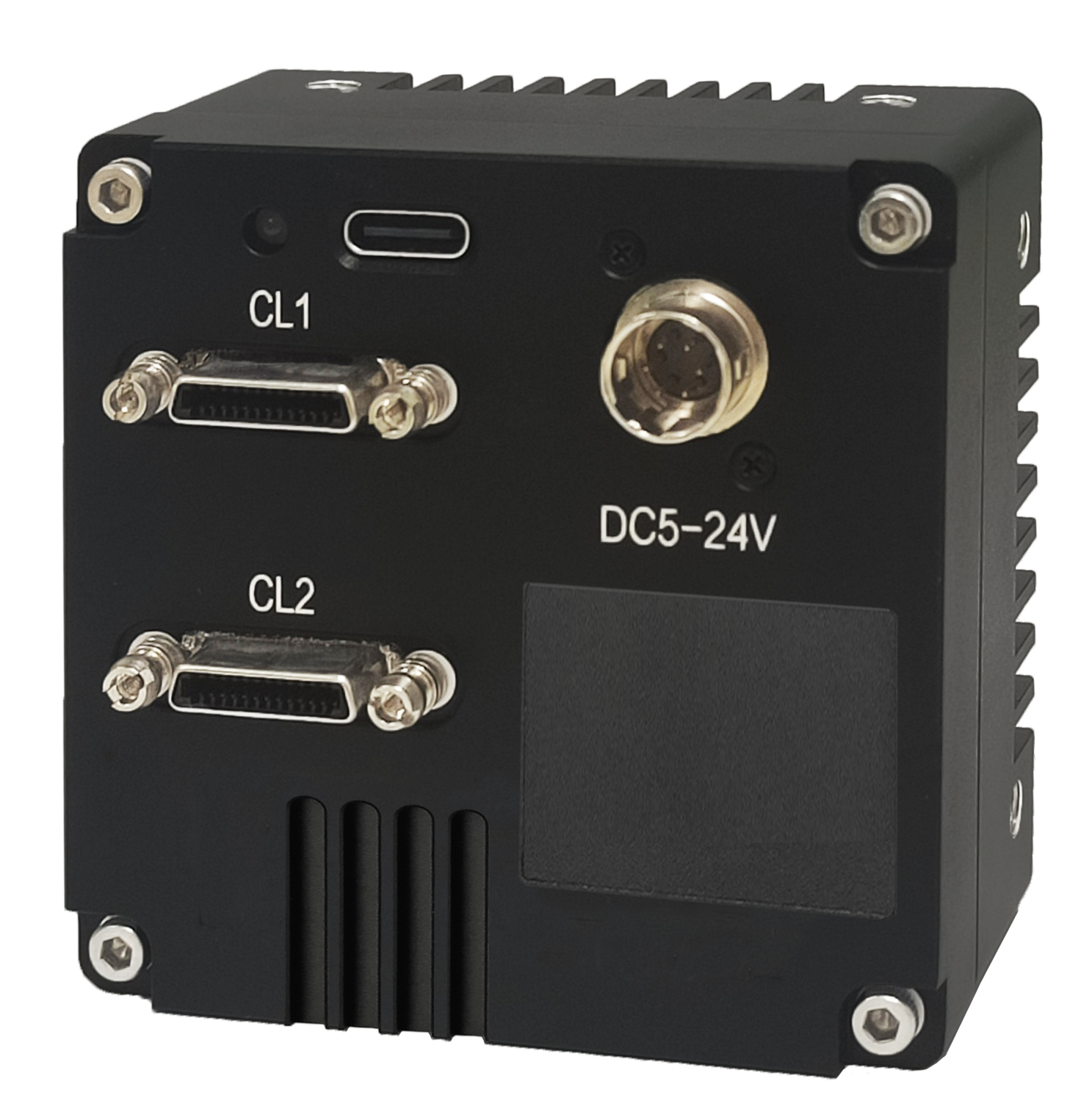

| Data Interface | Camera Link |
| Lens Mount | C Mount |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC5-24V (±10%) 1.0A |
| Power Dissipation | 3.6W |
| Dimensions | 62.0mm(W) x 62.0mm(H) x 42.9mm(D) |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
