Standards

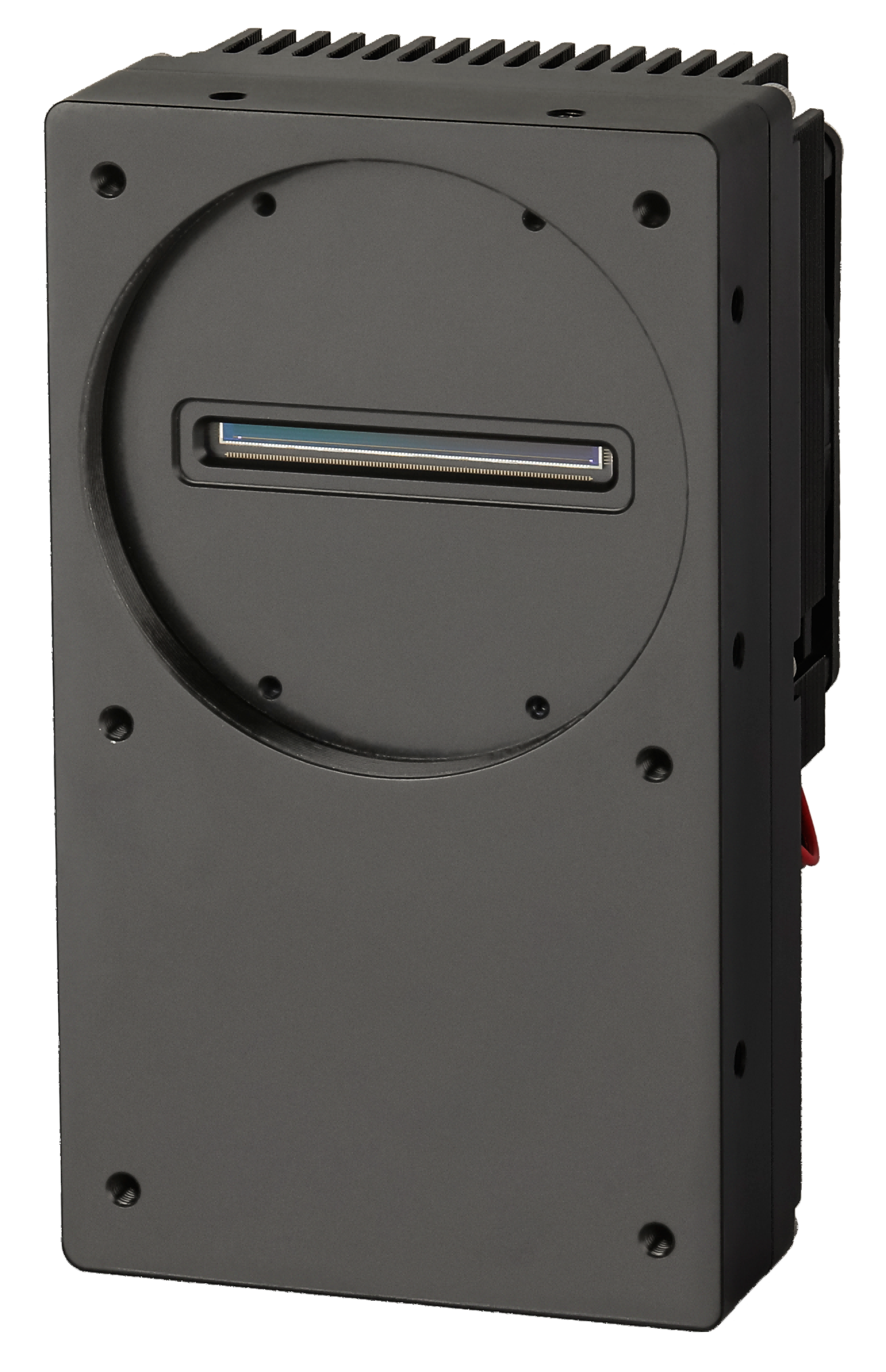

| Model | PL8KCXP-43KC |
| Sensor | Global shutter CMOS |
| Image Mode | Color |
| Optical Size | 41.60 mm |
| Resolution | 8320 * 12 |
| Pixel Size | 5μm * 5μm |
| Max Line Rate | 43kHz@8bit ; 39kHz@10bit |
| Bit Depth | RGB/BGR@8/10bit |
| Dynamic Range | ≥58.4 dB |
| Data Rate | 1216 MB/s |
| Trigger Mode | Free-Run / External Pulse / External PWM |
| Exposure Control | Timed / Pulse Width Control |
| Exposure Time | 1μs-797μs(Step:0.1μs) |
| Analog Gain | 1/2/4x |
| Digital Gain | 0.1-8.0x |
| Lens Mount | M72 * 0.75 / F Mount |
| Data Interface | CoaXPress |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC12V±10% 3A |
| Power Dissipation | 24.1 W |
| Dimensions |
M72：79.6mm x 139.5mm x 71.5mm F Mount：79.6mm x 139.5mm x 106.26mm |
| Operating Temperature | 0-60℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 898.7g |
