Standards

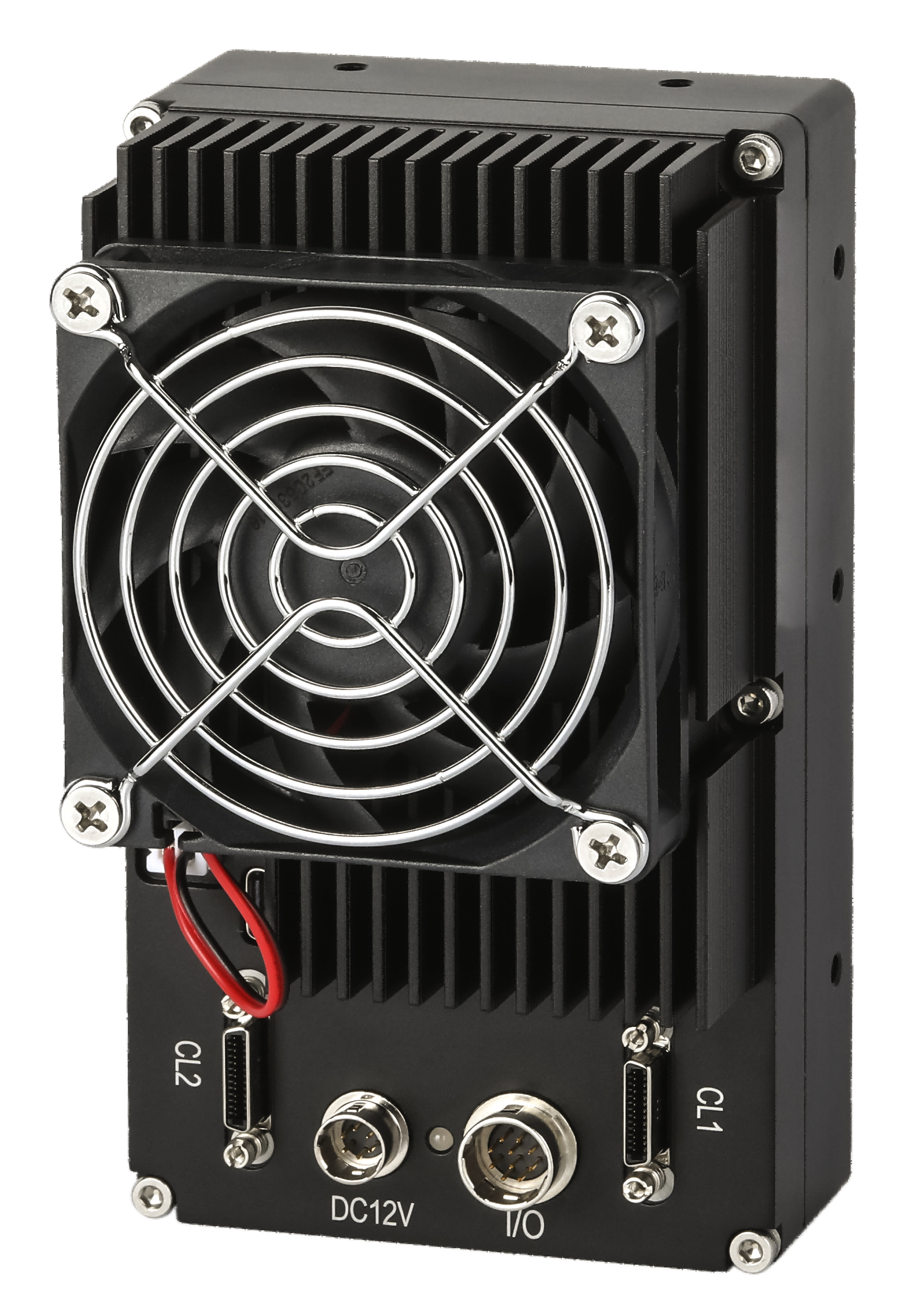

| Model | PL8KCL-50KX |
| Sensor | Global Shutter CMOS |
| Image Mode | Mono |
| Optical Size | 41.60 mm |
| Resolution | 8320 * 16 |
| Pixel Size | 5μm * 5μm |
| Max Line Rate | 50.0kHz@2Tap，40.0kHz@1Tap |
| Bit Depth | 8/10 bit |
| Dynamic Range | ≥52 dB |
| Data Rate | 840 MB/s |
| Trigger Mode | Free-Run / External Pulse / External PWM |
| Exposure Control | Timed / Pulse Width Control |
| Exposure Time | 1μs-63997μs(Step:0.01μs) |
| Analog Gain | 1/2/4x |
| Digital Gain | 0.01-8x |
| Data Interface | Camera Link |
| Lens Mount | M72 * 0.75 / F Mount |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC12V±10% 3A |
| Power Dissipation | 21.0 W |
| Dimensions | 79.6mm(W) x 139.5mm(H) x 71.5mm(D) |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 883.9g |
