Standards

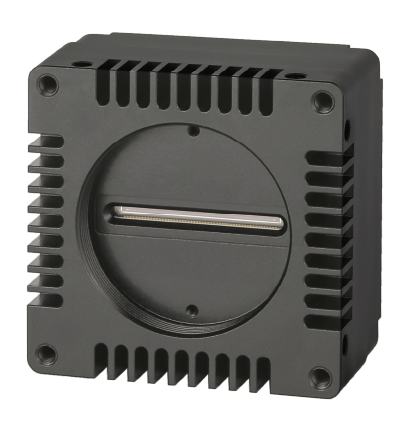

| Model | PL4KGV-68KT |
| Sensor | Global shutter CMOS |
| Image Mode | Mono |
| Optical Size | 28.67 mm |
| Resolution | 4096 * 2 |
| Pixel Size | 7μm * 7μm |
| Max Line Rate | 30kHz(68kHz with SAccel™) |
| Bit Depth | 8/10/10p/12/12pbit |
| Dynamic Range | ≥63.4dB |
| Data Rate | 278MB/s |
| Trigger Mode | Free-Run / Line Trigger Control / Frame Trigger Control |
| Exposure Control | Pulse Width Control / Program |
| Exposure Time | 3.8μs-10s(Step:0.1μs) |
| Analog Gain | 1/2/5/10x |
| Digital Gain | 0.004-6.000x |
| Lens Mount | M42 * 1 |

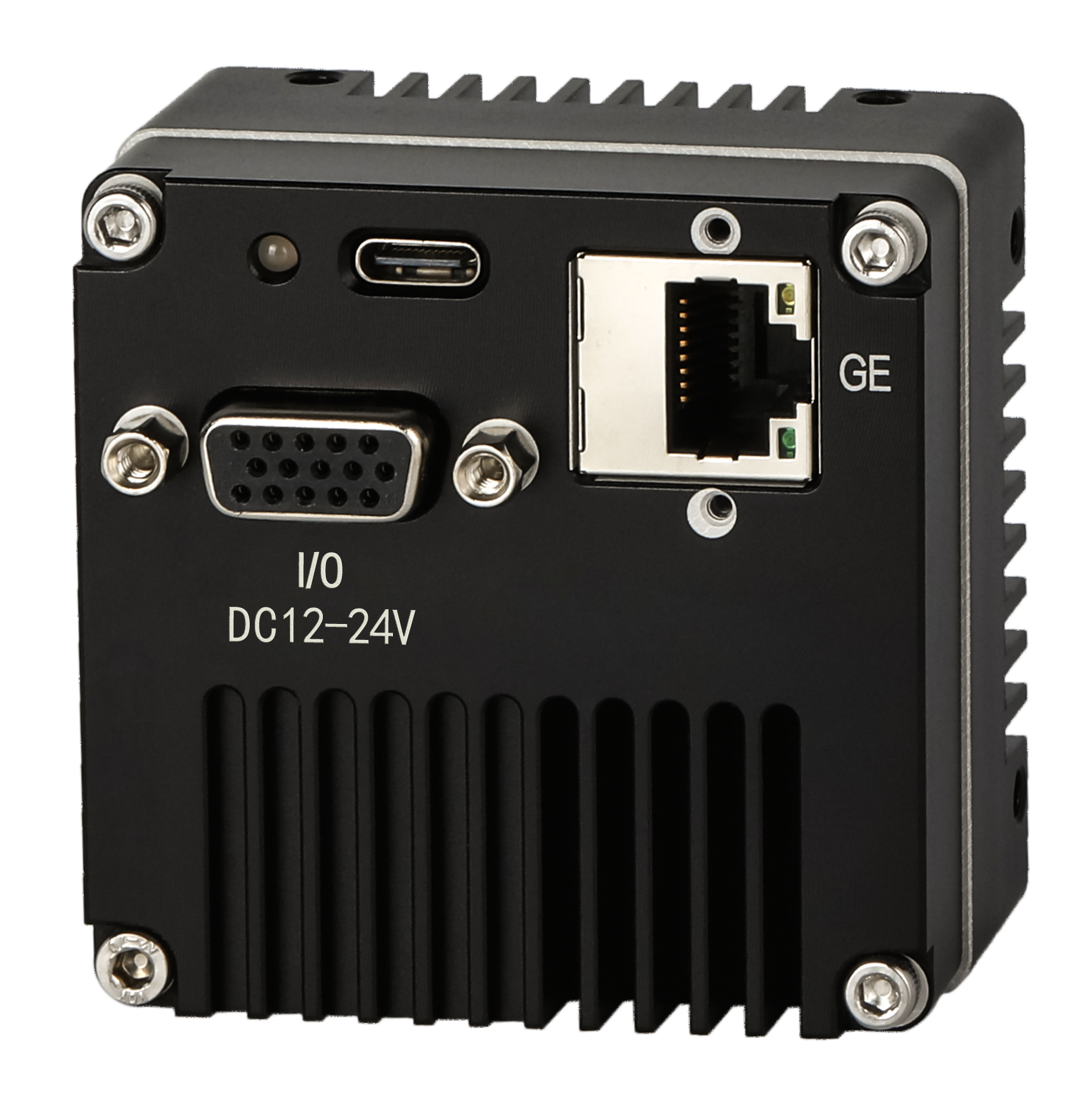

| Power Connector | HD15(Female) |
| Data Interface | GigE Vision |
| Power Supply | DC12-24V(±10%) 1A or PoE |
| Power Dissipation |
5.3 W(DC) 5.9W(PoE) |
| Dimensions | 62.0mm(W) x 62.0mm(H) x 37.7mm(D) |
| Operating Temperature | 0-65℃ |
| Storage Temperature | -20-75℃ |
| Product Weight | 171.5g |
